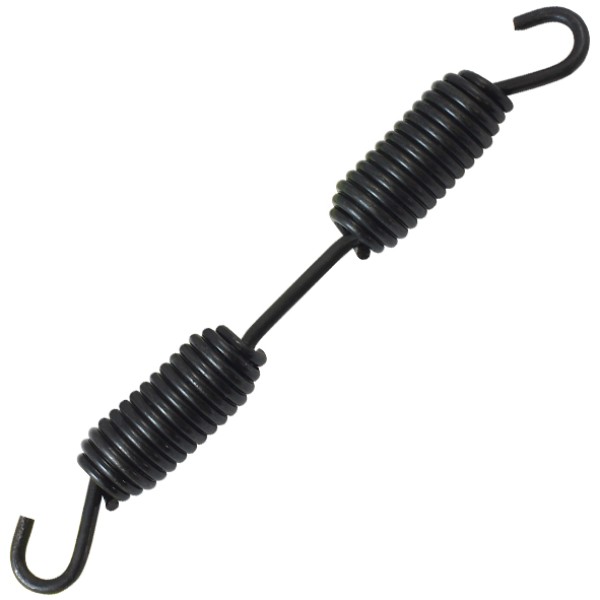

SAF-HOLLAND brake return spring 230mm hardware helps pull the brake shoes back to their resting position after each brake application. This helps the drum brake release cleanly and reduce the chance of heat build up from shoe drag. It suits common trailer drum brake setups where dependable shoe retraction matters during repeated stop start work.

Features

SAF-HOLLAND brake return spring 230mm is built for consistent shoe return rather than extra stiffness that can accelerate wear. It also uses a compact coil profile, so it fits within typical drum brake hardware layouts without crowding adjacent components.

• Designed for brake shoe return in drum brake assemblies
• Specified overall length and coil diameter for selection
• Helps maintain even brake release and reduce drag
• Suitable for routine service replacement during brake work

Specifications and Materials

Overall length and coil diameter help you match the correct brake hardware for your axle family.

• Application: brake shoe return spring
• To suit: SAF-HOLLAND
• Overall length: 230mm
• Coil diameter: 25mm

Part number: FB3496.

Refer to the SAF-HOLLAND drum brake axles service manual which outlines service practices for drum brake systems

Compatibility and Fitment

Always confirm the brake shoe and axle family before ordering because return spring geometry can vary between brake sizes. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. SAF J-SERIES RZ 12242/18C, RZ10242/18C

Compliance and Safety

Brake springs are safety critical service parts, so replace damaged or heat affected hardware straight away. Use suitable spring tools and wear eye protection because stored energy can cause injury during removal or installation.

• Inspect for corrosion, distortion, or reduced tension
• Replace in axle sets when brake shoes are serviced
• Confirm correct seating on the shoe and anchor points
• Check free wheel rotation after assembly

Trailer Applications

SAF-HOLLAND brake return spring 230mm suits heavy duty trailers using SAF-HOLLAND drum brake systems in general freight, tipping, and fleet maintenance environments. It also suits workshop rebuilds where you want predictable brake release and a tidy hardware setup after shoe replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Finally, use the axle identification plate or workshop manual to confirm suitability before installation.

Why Choose ICS Trailers

ICS Trailers supplies brake hardware that matches what workshops expect for common trailer foundation brake service. We can help you confirm the right return spring style for your axle family, and we can supply related brake service parts as needed.

Browse Foundation Brakes parts at ICS Trailers to view related brake hardware and service items.
