Description

Overview

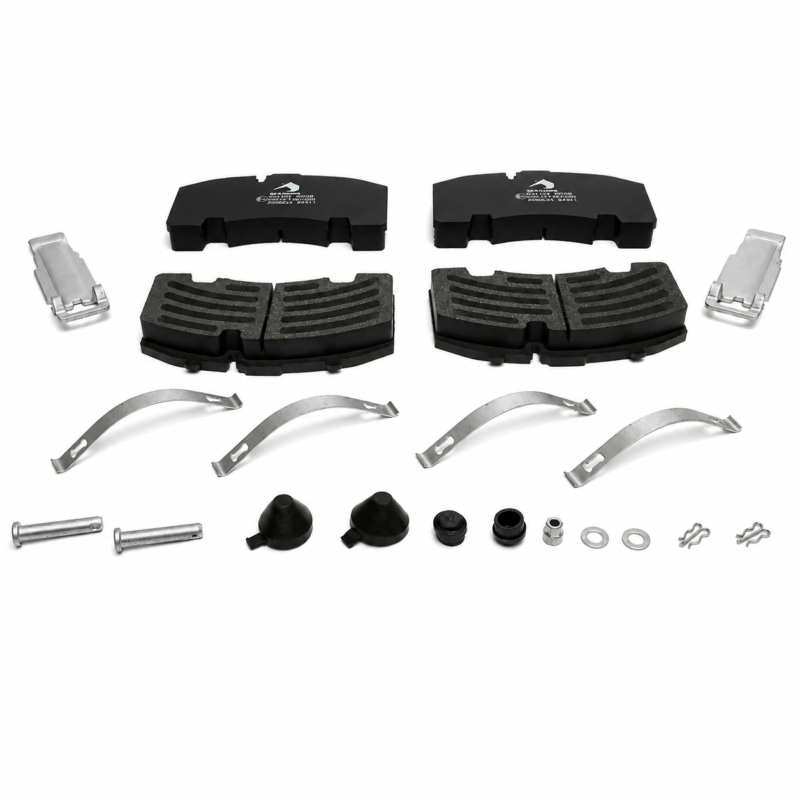

These BPW SK7 disc brake pads form a four-pad axle set for compatible Knorr SB4309T (SK7) disc brake systems. Each pad measures 210.8 x 108 x 30mm, with fitting hardware supplied for the pad change.

Features

• Four brake pads supplied as one complete axle set.
• 210.8 x 108 x 30mm pad dimensions.
• Fitting hardware included with the pad set.
• Matches the Knorr SB4309T and SK7 brake family.

Specifications and Materials

Disc brake pad set with four pads and fitting hardware for compatible SK7 brake assemblies.

Part number: 094.834-01.

See Knorr-Bremse SK7 trailer disc brake information

Compatibility and Fitment

Match the SK7 or SB4309T caliper family, pad dimensions and old pad markings before ordering. Do not identify the pads from BPW axle branding alone because BPW axles use more than one disc brake system.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0509290230, 0980108160, 0980108161, 09.801.08.16.1, FB4645, FB4645G, 05.092.90.06.0, 0509290060, 05.092.90.08.0, 0509290080, 05.092.90.23.0, 09.801.06.44.0, 0980106440, 09.801.06.95.0, 0980106950, 09.801.07.26.0, 0980107260, 0908336, 1529339, 1534092, 1534096, 1961736, 1962431, 908336, JAE 02 504 070 20, JAE0250407020, JAE 02 504 370 20, JAE0250437020, 6500489, 004 420 7020, 0044207020, A004 420 7020, A0044207020, MDP3171K, K00627, 3.057.0085.00, 3057008500, 3.057.0085.01, 3057008501, 1748114, 2198229, 2198237, 2339722, 1005625, 1008452, 1105625, 1161563, 21.29171, 2129171, 21.29171K, 2129171K, 76452, 80741, 86767, P A1 101, PA1101, P B4 003, PB4003, P B4 103S, PB4103S, 584.008, 584008, 584.035, 584035, 02.99.42.131528, 029942131528, 03.02.02.301208, 030202301208, 29171, DT4.90935, DT490935, IT 0602S 29171, IT0602S29171, 2129158009, 3400 011 471, 3400011471, 3406 660 850, 3406660850, 116251, 16608, 2915830004145504, 2917130004245754, 2919430004152004, 2926430004145754, WVA29158, BL2212A1, BL2212B1, 1911589010, JCP1002, JCP2002, JCA1074.00, JCA107400, JCA1074.80, JCA107480, K011471K50, K015947, K066608K50, 05P1186, 05P1186K, 05P1899, 22-0652-0, 2206520, 025 291 7130, 0252917130, 086.321-00A, 08632100A, 086.332-00A, 08633200A, 08632100, 55917581PRO, 094.834, 094834, 096.618, 096618, 096.618-01, 09661801, 096.971, 096971, 096.971-01, 09697101, 096.971/A, 096971A, 03.120.8700.781, 031208700781, 2915801, 2917104, 2926901, 2927101, 2930801, 90.35.011, 9035011, GDB5093, 882209, 882274, 882409, 340 901 071 2, 3409010712, 340 901 073 2, 3409010732

Compliance and Safety

Replace the pads as a complete axle set. During the brake service, inspect the disc, caliper movement, guides and retaining hardware, then confirm correct pad seating and brake operation before returning the trailer to service.

Trailer Applications

Workshops use these BPW SK7 disc brake pads on compatible heavy trailer axle applications running Knorr SB4309T or SK7 disc brakes. The four-pad set services one complete axle where the caliper family and pad dimensions match.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Brake pads can look similar across BPW disc brake systems, but the SK7 or SB4309T caliper family and 210.8 x 108 x 30mm pad size are critical for this set. ICS Trailers can compare old pad markings, caliper identification, photos and the interchange numbers above before you order.

• Match the caliper family and pad dimensions before fitting.
• Use old pad numbers to trace recognised equivalent brake pad sets.
