Disc Spring Brake Chamber 16/24 M16x1.5

Allan Davis on 12/08/2026

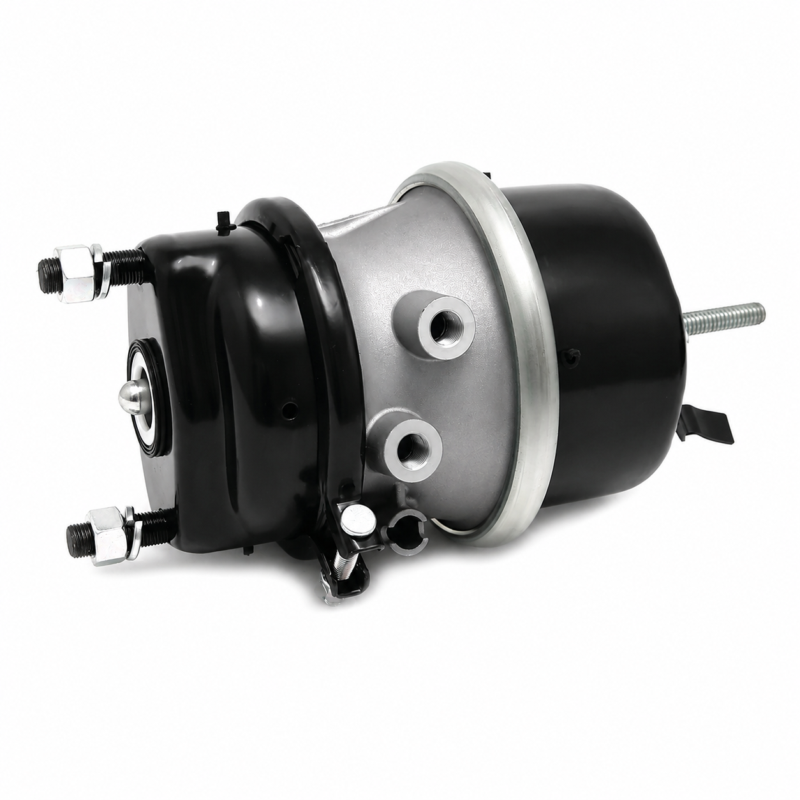

16/24 disc spring brake chamber with M16x1.5 ports

Disc Spring Brake Chamber 16/24 M16x1.5

$150.00

16/24 disc spring brake chamber for trailer disc brake applications, with M16x1.5 ports, 57mm stroke and 15mm pushrod, suitable where this combined service and parking brake actuator configuration matches the existing unit.

Part number 094.028-01.

Quick Quote

SKU: 094.028-01 Category: Tags: , , , , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

This 16/24 disc spring brake chamber combines the service and spring-brake functions used on compatible trailer disc brake axle systems. The Type 16/24 configuration, M16x1.5 ports and 57mm stroke are the main points to match when replacing an existing unit.

Features

  • Type 16/24 combined spring brake actuator.
  • Configured for trailer disc brake applications.
  • M16x1.5 air ports.
  • 57mm stroke with 15mm pushrod length.

Specifications and Materials

Match the Type 16/24 chamber size, M16x1.5 connections, 57mm stroke and 15mm pushrod before installation.

Part number: 094.028-01.

See the manufacturer brake actuator technical overview

Compatibility and Fitment

Compare the old chamber markings, actuator size, port thread, stroke and mounting arrangement before ordering. Similar-looking spring brake chambers can use different sizes, strokes or connection layouts.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0544440010, 0544440020, 0911031, 1351624004, K159939N00, AB1133, AB1133G, 9253840100, 4454107230, 4454107630, 4454107730, 054998, BS7309

Related Parts

Check the companion fitting against the chamber and air line setup before installation.

Use Part number Part type
Used with AB2124 M16 air chamber fitting



Compliance and Safety

Brake chamber replacement is safety-critical. Follow the axle and brake system service procedure, secure the vehicle against movement, and confirm the chamber mounting, air connections and actuator movement before returning the trailer to service.

Trailer Applications

Workshops use this 16/24 disc spring brake chamber on compatible BPW, SAF and other trailer disc brake axle applications that match the same chamber geometry and connections.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

0544440010 0544440020 0911031
1351624004 K159939N00 AB1133
AB1133G 9253840100 4454107230
4454107630 4454107730 054998
BS7309



Why Choose ICS Trailers

Type 16/24 chambers can share a similar external shape while differing in stroke, port position and mounting details. ICS Trailers can compare your old chamber markings, photos, M16x1.5 connections and cross-reference numbers to narrow down the correct replacement before you order.

  • Check the 57mm stroke and 15mm pushrod against the removed chamber.
  • Match the surrounding air fittings and brake hardware while the axle is being serviced.
