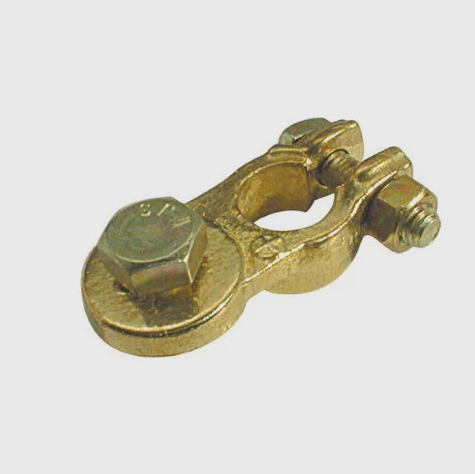

Matson Positive Heavy Duty Bolt Style Battery Terminal 10mm Stud
Matson Positive Heavy Duty Bolt Style Battery Terminal 10mm Stud
$12.00
Matson positive heavy duty bolt style battery terminal with solderless 10mm stud connection. Allows the battery cable to be disconnected without removing the terminal from the post.
Part number MA142HDP.
Description
Overview
Matson Positive Heavy Duty Bolt Style Battery Terminal 10mm Stud is a solderless positive battery post terminal for heavy duty battery cable connections.
The bolt style stud lets the battery cable disconnect from the terminal without removing the terminal clamp from the battery post, which helps when servicing or isolating battery leads.
Features
- Positive heavy duty battery terminal.
- Solderless bolt type design.
- 10mm stud for lug style cable connection.
- Cable can be disconnected without removing the terminal from the battery post.
Specifications and Materials
This positive battery terminal uses a 10mm stud and a solderless bolt style cable connection. Part number: MA142HDP.
Match the terminal to the positive battery post, cable lug hole size and cable direction before fitting.
See the Matson battery terminal technical page
Compatibility and Fitment
Check the battery post polarity, post size, cable lug hole, stud size and available battery box clearance before ordering. The main mismatch risk is choosing the positive 10mm stud version when the existing cable lug, terminal cover or post polarity suits a different terminal.
Use this terminal only on the positive battery post. Do not fit it to the negative post.
Related Parts
Check the related service parts below against the vehicle, trailer or battery setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Negative terminal to suit | MA142HDN | Negative heavy duty bolt style terminal |
| Pair pack | MA142HDBL2 | Positive and negative terminal pack |
| Blister pack version | MA142HDPBL1 | Positive heavy duty bolt style terminal |
| Box of 5 version | MA142HDPB5 | Positive heavy duty bolt style terminal pack |
| Cover to suit | MA1007-2 | Large side entry terminal cover pair |
Compliance and Safety
Disconnect battery power before fitting, clean the post and clamp area, then tighten the terminal and cable lug securely. Loose battery terminals can cause heat, voltage drop, poor starting and intermittent electrical faults.
Trailer Applications
Workshops use heavy duty bolt style battery terminals on trucks, trailers, caravans, service bodies, earthmoving equipment, marine setups and auxiliary battery systems where larger battery leads need a removable stud connection.
Why Choose ICS Trailers
ICS Trailers supplies battery terminals, cable lugs, terminal covers, earth straps, wiring parts and electrical consumables for trailer and vehicle repair work. If you are matching an old terminal, send through photos of the battery post, cable lug, terminal cover and cable size so we can help narrow down the correct replacement.
