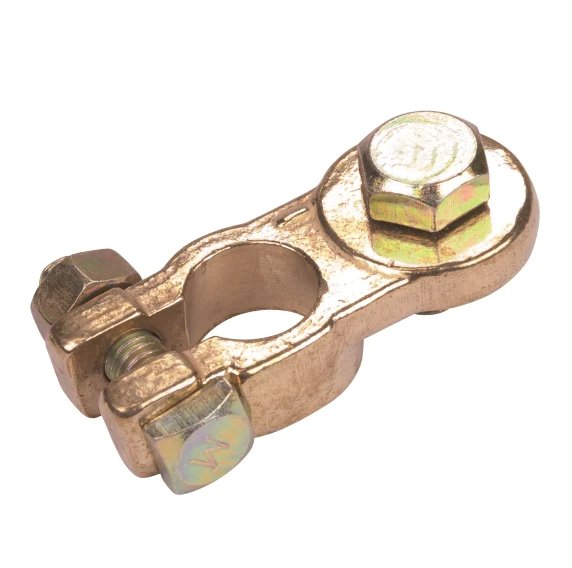

Matson Negative Heavy Duty Bolt Style Battery Terminal 10mm Stud
Matson Negative Heavy Duty Bolt Style Battery Terminal 10mm Stud
$12.00
Matson negative heavy duty bolt style battery terminal with solderless 10mm stud connection. Allows the battery cable to be disconnected without removing the terminal from the post.
Part number MA142HDN.
Description
Overview
Matson Negative Heavy Duty Bolt Style Battery Terminal 10mm Stud is a solderless negative battery post terminal for heavy duty battery cable connections.
The bolt style design lets the battery cable disconnect from the terminal stud without removing the terminal clamp from the battery post, which helps when isolating or servicing battery leads.
Features
- Negative heavy duty battery terminal.
- Solderless bolt type design.
- 10mm stud for lug style cable connection.
- Cable can be disconnected without removing the terminal from the battery post.
Specifications and Materials
This negative battery terminal uses a 10mm stud and a solderless bolt style cable connection. Part number: MA142HDN.
Match the terminal to the negative battery post, cable lug hole size and cable direction before fitting.
See the Matson battery terminal technical page
Compatibility and Fitment
Check the battery post polarity, post size, cable lug hole, stud size and available battery box clearance before ordering. The main mismatch risk is choosing the heavy duty 10mm stud version when the existing cable lug or terminal cover suits a smaller stud or different terminal shape.
Use this terminal only on the negative battery post. Do not fit it to the positive post.
Related Parts
Check the related service parts below against the vehicle, trailer or battery setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Positive terminal to suit | MA142HDP | Positive heavy duty bolt style terminal |
| Pair pack | MA142HDBL2 | Positive and negative terminal pack |
| Blister pack version | MA142HDNBL1 | Negative heavy duty bolt style terminal |
| Cover to suit | MA1007-2 | Large side entry terminal cover pair |
Compliance and Safety
Disconnect battery power before fitting, clean the post and clamp area, then tighten the terminal and cable lug securely. Loose battery terminals can cause heat, voltage drop, poor starting and intermittent electrical faults.
Trailer Applications
Workshops use heavy duty bolt style battery terminals on trucks, trailers, caravans, service bodies, earthmoving equipment, marine setups and auxiliary battery systems where larger battery leads need a removable stud connection.
Why Choose ICS Trailers
ICS Trailers supplies battery terminals, cable lugs, terminal covers, earth straps, wiring parts and electrical consumables for trailer and vehicle repair work. If you are matching an old terminal, send through photos of the battery post, cable lug, terminal cover and cable size so we can help narrow down the correct replacement.
