Description

Overview

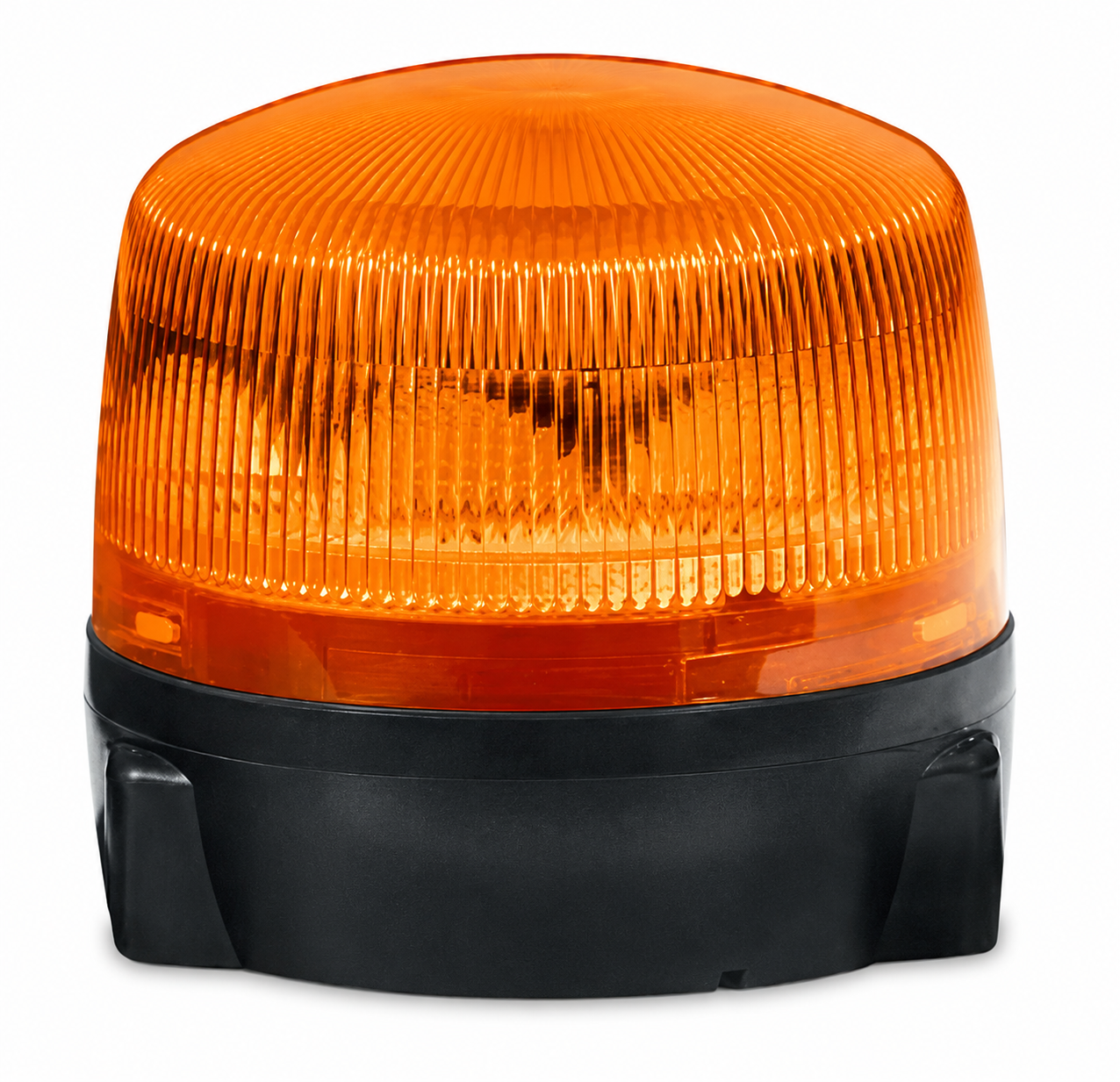

Fixed mount LED beacon provides amber rotating warning light coverage for trailers, service vehicles, plant and heavy vehicle support setups. The RotaLED design creates a simulated rotating warning pattern without a moving bulb drive, so it suits exterior warning applications where durability and low current draw matter.

Features

• Amber fixed mount LED beacon with rotating warning light function.
• Multivolt operation supports 12V and 24V vehicle systems.
• Simulated rotation flash rate of 120-133 rpm.
• Impact-resistant polycarbonate dome with black polycarbonate and ABS housing.

Specifications and Materials

This fixed mount LED beacon uses an amber polycarbonate lens, black polycarbonate and ABS housing, and 10-32V DC Multivolt operation. It runs at 10W and carries IP5KX, IPX4K and IPX9K protection ratings for exterior vehicle warning light use.

The beacon supports ECE R10, ECE R65 TA1 and CISPR25 Class 5 compliance references. It suits fixed surface mounting where the vehicle needs a permanent amber rotating warning signal.

Part number: 1611.

See the HELLA RotaLED beacon technical data for product specifications

Compatibility and Fitment

Check the mounting surface, bolt pattern, cable route, voltage range and required beacon approval before ordering. Also confirm the beacon has clear 360 degree visibility once fitted, because nearby guards, toolboxes or bodywork can reduce the warning signal.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2RL 010 979-001, 2RL010979001, 010 979-001, 010979001

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Mount the beacon securely to a rigid surface, then protect the wiring from vibration, sharp edges and water entry. After fitting, test the beacon from multiple angles so the warning pattern remains visible around the vehicle or trailer.

Trailer Applications

Workshops fit this fixed mount LED beacon to service trailers, fleet maintenance vehicles, agricultural equipment, yard plant and roadside support setups. The fixed base suits vehicles that need a permanent amber warning beacon rather than a temporary magnetic lamp.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Videos

These official HELLA videos show the RotaLED beacon series and rotating warning light function.

Why Choose ICS Trailers

ICS Trailers supplies trailer electrical and warning light parts for workshop repairs, body builds and fleet maintenance. Match the voltage range, mount type and warning light requirement before fitting this fixed mount LED beacon.
