7P Suzi Coil ISO 1724 To SAE J560 4.6m
7P Suzi Coil ISO 1724 To SAE J560 4.6m
$174.00

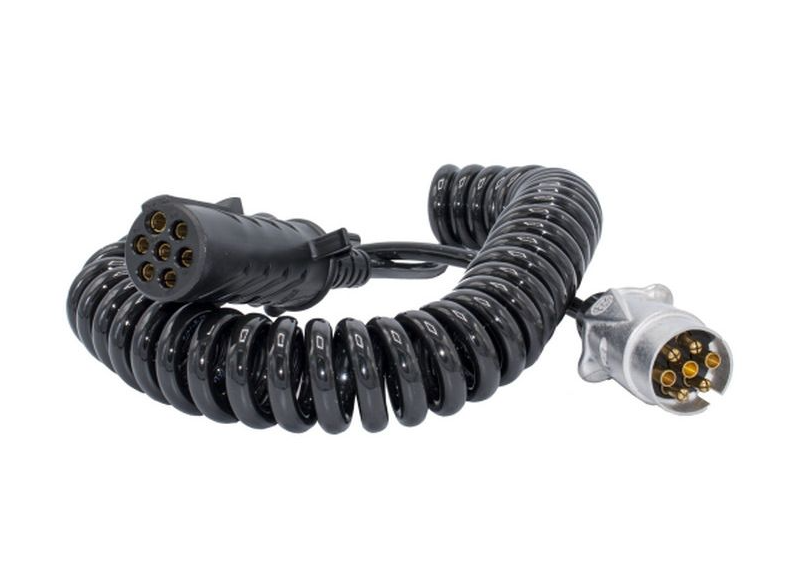

7P Suzi coil for ISO 1724 / AS 2513 to SAE J560 trailer lighting connections, with 4.6m maximum working length, 50mm outer coil diameter, 7 pins and 300mm tails at both ends.
Part number 8KA227440141.
Description
Overview
7P Suzi coil connects ISO 1724 / AS 2513 trailer lighting wiring to SAE J560 heavy vehicle lighting connections between the towing vehicle and trailer.
This heavy-to-light duty Suzi coil suits trailer wiring setups that need a metal 7P ISO 1724 / AS 2513 plug at one end and an overmoulded 7P SAE J560 plug at the other. It gives workshops a 4.6m maximum working length for standard lighting cable connection between matched sockets.
Features
- Suits 7-pin lighting connections between ISO 1724 / AS 2513 and SAE J560 sockets.
- 50mm outer coil diameter with 4.6m maximum working length.
- Metal ISO plug housing and reinforced composite SAE plug housing.
- 300mm tail ends at both plugs for standard short-tail fitment.
Specifications and Materials
7P Suzi coil carries 6 x 1.5mm² conductors plus 1 x 2.5mm² conductor. The cable uses 7 pins, a 50mm outer coil diameter, 4.6m maximum working length and 300mm tail ends at each plug.
Part number: 8KA227440141.
Use the manufacturer cable assembly guide
Compatibility and Fitment
Match the towing vehicle and trailer sockets before ordering. This 7P Suzi coil suits lighting connections where one side needs ISO 1724 / AS 2513 and the other side needs SAE J560. It does not replace ABS/EBS braking cables.
Related Parts
Check the related trailer wiring versions below against the plug type and working length required.
| Use | Part number | Part type |
|---|---|---|
| Long tail version | 8KA 227 440-151 | ISO to SAE Suzi coil |
| Light duty version | 8KA 227 440-101 | ISO to ISO Suzi coil |
| Straight cable version | 8KA 227 440-131 | ISO to ISO straight cable |
| Heavy duty version | 8KA 905 392-041 | SAE to SAE Suzi coil |
Compliance and Safety
Inspect plugs, pins, cable insulation and coil recovery before fitting. If the cable has damaged insulation, loose pins, corrosion or stretched coils, replace it before use. For trailer wiring faults, confirm the pinout and socket condition before reconnecting the trailer.
Trailer Applications
Trailer operators use this cable when a heavy vehicle lighting socket needs to connect to a light-duty trailer lighting plug style. It suits transport, workshop and fleet service work where trailer lighting connections need the ISO / AS to SAE plug combination.
Why Choose ICS Trailers
ICS Trailers supplies electrical connection parts for trailer operators, repairers and fleets. Match the plug standard, pin count and working length before ordering.
