Description

Overview

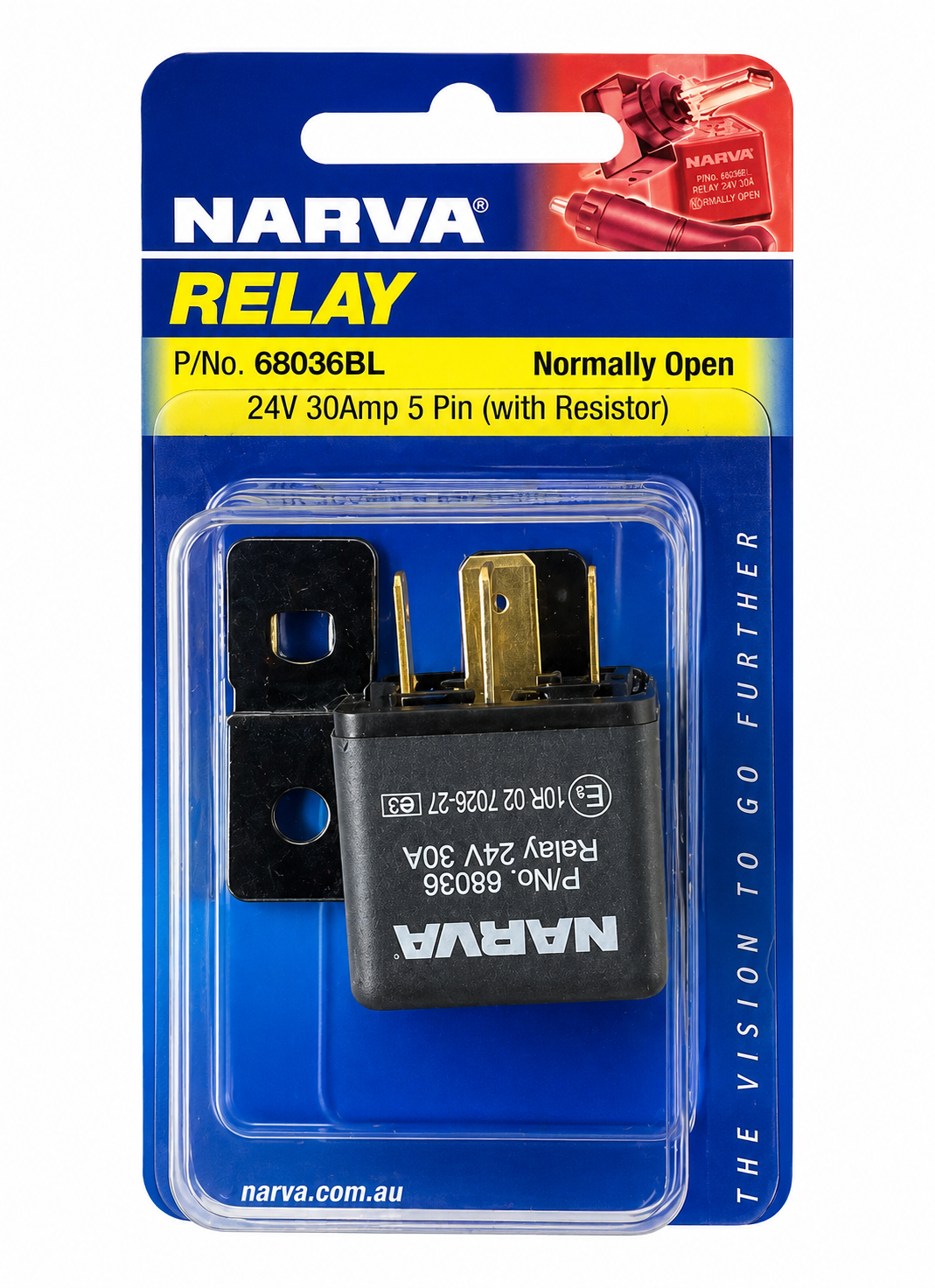

24V 30A 5 pin relay with resistor switches normally open accessory circuits in 24V truck, trailer and equipment electrical systems. The resistor protection helps dampen relay coil voltage spikes, so it suits circuits where voltage suppression matters during switching.

Features

• 24V 30A normally open relay for automotive and trailer electrical circuits.
• 5 pin configuration for matching compatible relay bases and wiring layouts.
• Resistor protection helps dampen coil voltage spikes during switching.
• Blister pack of 1 for single relay replacement or workshop stock.

Specifications and Materials

This 24V 30A 5 pin relay with resistor suits normally open relay applications in 24V electrical systems.

Part number: 68036BL.

Use the manufacturer relay listing when matching the relay voltage, amp rating and circuit type

Compatibility and Fitment

Match the relay voltage, amp rating, pin count and terminal layout before ordering. This relay suits 24V 30A normally open 5 pin applications, so do not substitute it for 12V, 4 pin or change-over circuits unless the wiring has been checked.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Isolate power before replacing the relay. Also confirm the circuit fuse, terminal condition and load rating, because a relay with the wrong voltage or contact rating can damage wiring or connected equipment.

Trailer Applications

Workshops use this 24V 30A 5 pin relay with resistor in auxiliary lighting, fan, wiper, equipment control and other switched electrical circuits on 24V vehicles and trailers.

Why Choose ICS Trailers

Order this relay with the matching connector base, fuse protection and terminals when repairing or building a 24V trailer electrical circuit. Browse more trailer electrical parts in the Electrical category
