Description

Overview

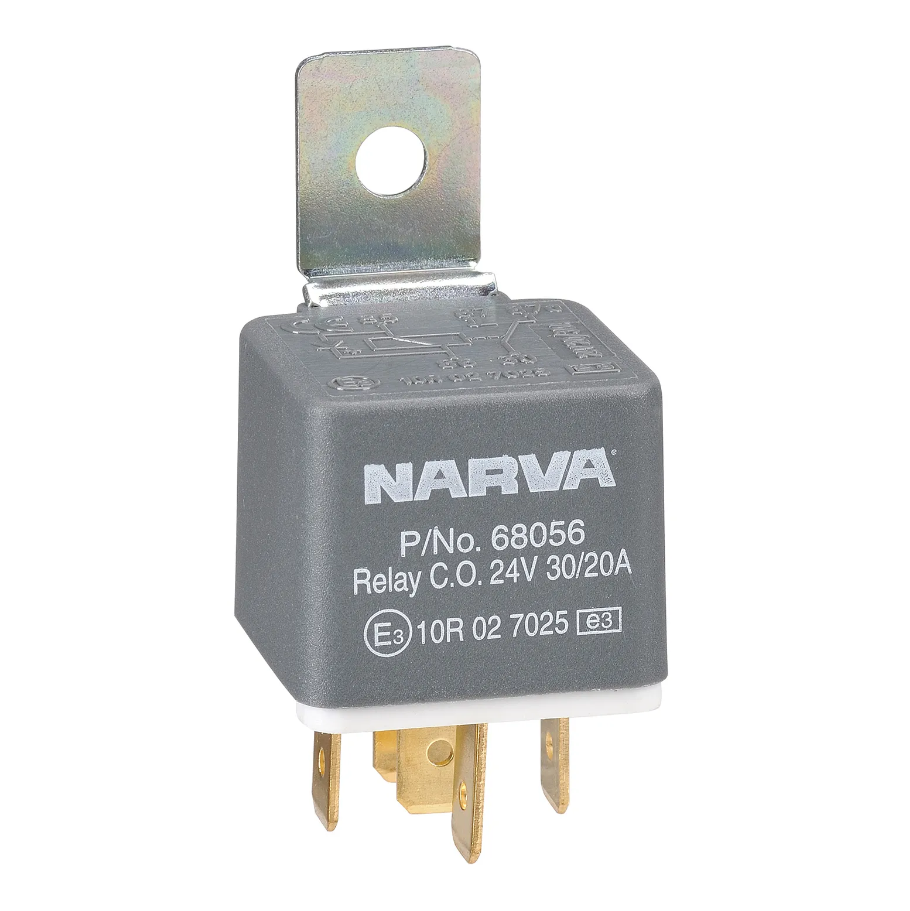

The 24V 30/20A change over relay gives heavy vehicle and trailer accessory circuits a diode protected switching point. It suits 24V wiring setups where the circuit needs a 5 pin change over relay, rather than a normally open 4 pin relay.

Features

• 5 pin change over relay layout for 24V electrical circuits.
• 30/20A rating for correctly matched switched loads.
• Diode protected design for coil suppression in sensitive circuits.

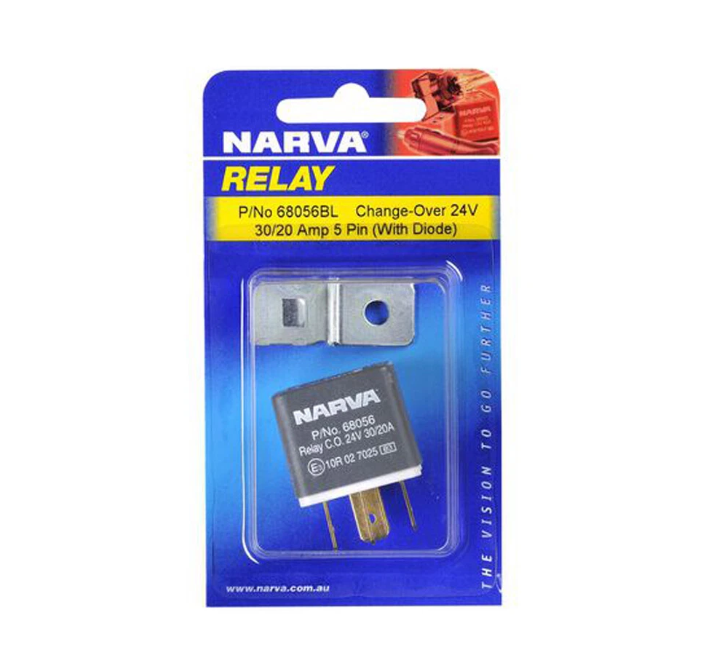

• Blister pack contains one relay.

Specifications and Materials

Product type: diode protected 5 pin change over relay.

Electrical rating: 24V, 30/20A, 5 pin configuration.

Pack format: blister pack of 1.

Part number: 68056BL.

See the Narva relay product information for manufacturer product family details.

Compatibility and Fitment

Match the system voltage, 30/20A rating, 5 pin change over contact layout and diode protected circuit requirement before ordering. Also compare the terminal footprint against the relay holder, because a similar relay body can still use the wrong pin layout for the job.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Disconnect battery power before replacing or wiring the relay. Then confirm the load, wire size, fuse protection, terminal condition and diode polarity before testing the circuit under load.

Trailer Applications

Workshops use this relay type in 24V truck and trailer accessory circuits, especially where the wiring design needs change over switching between two outputs or circuit paths.

Why Choose ICS Trailers

ICS Trailers supports trailer electrical repairs with relays, relay connectors, wiring parts and lighting components for workshop and fleet service work.
