Description

Overview

The curtain tensioner straight handle replaces the operating lever on compatible Freighter side-curtain tensioner assemblies. Its aluminium construction and unhanded design allow the same handle to service left or right-side units when the original lever is bent, cracked or worn at the pivot.

This is the handle component rather than a complete ratchet tensioner. Therefore, replacing the damaged lever can retain a serviceable tensioner body while restoring the correct straight operating profile.

Features

• Aluminium handle for Freighter curtain tensioner repairs.
• Straight lever profile with shaped finger grips.
• Suitable for compatible left and right-side assemblies.
• Slotted pivot end connects to the tensioner mechanism.

Specifications and Materials

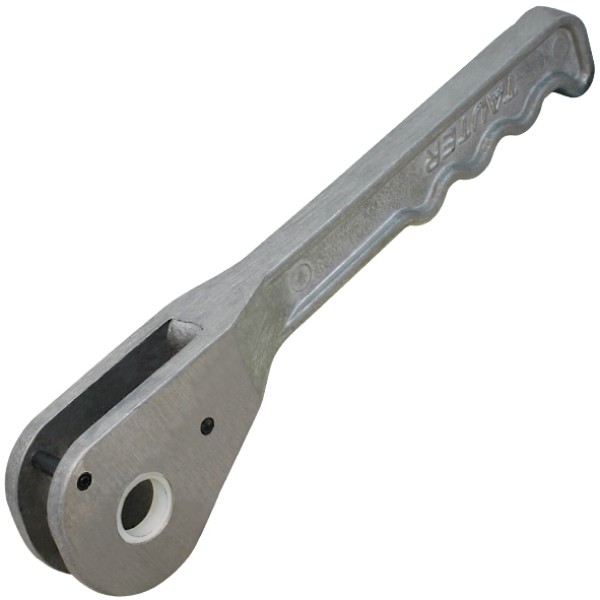

Product type: replacement curtain tensioner handle. Material: aluminium. Side suitability: left and right. The handle has a hooked grip end, finger recesses and a broad pivot section for connection to the ratchet mechanism.

Part number: CV4090.

Match the handle to the official Freighter T-Liner trailer family

Compatibility and Fitment

Compare the straight profile, overall length, pivot bore, slot width and connection points with the removed handle. The main mismatch risk is confusing this part with a bent-handle version or ordering the lever when the complete tensioner also needs replacement.

Before fitting the curtain tensioner straight handle, inspect the pivot pin, bush, ratchet body and locking components. Excessive play, distortion or damaged teeth can prevent correct operation even when the mounting dimensions match.

Related Parts

Check the related tensioner assemblies below against the trailer position before ordering.

Compliance and Safety

Release curtain tension before dismantling the assembly. After installation, confirm the pivot is secure, the lever moves freely and the locking mechanism fully engages. Also check that the handle clears nearby bodywork throughout its travel.

Trailer Applications

Workshops fit this replacement handle when the tensioner mechanism remains serviceable but its straight lever is damaged. It suits Freighter curtain systems using the corresponding left or right-hand tensioner assembly.

Why Choose ICS Trailers

ICS Trailers supplies curtain-side hardware, rollers, buckles and tensioner components for trailer body repairs. When the profile or pivot arrangement is difficult to identify, send a photo of the old handle and tensioner body.
