Description

Overview

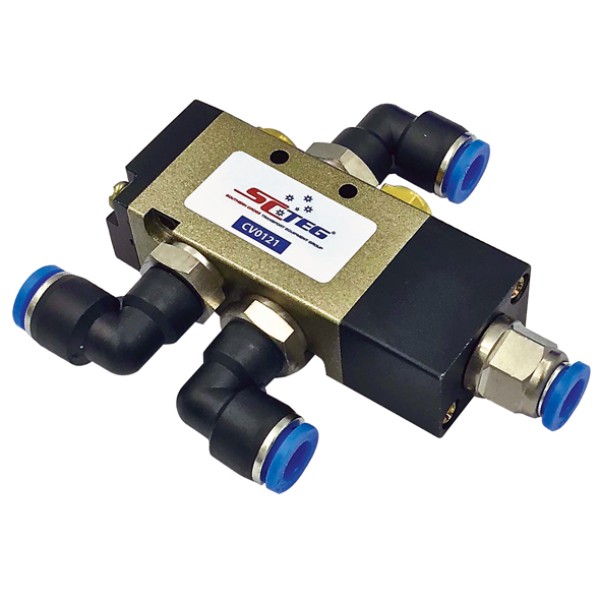

The air tailgate pilot valve controls airflow in compatible double-acting trailer tailgate cylinder systems. It replaces the pilot valve on the matching cylinder and switches airflow for extension and retraction.

Features

• Replacement valve for compatible air tailgate cylinders
• Controls double-acting pneumatic cylinder movement
• Purpose-built for trailer tailgate pneumatic systems

Specifications and Materials

Product type: pneumatic pilot valve.

Application: air tailgate cylinder control.

Part number: CV0121.

See the Festo pneumatic valve technical overview

Compatibility and Fitment

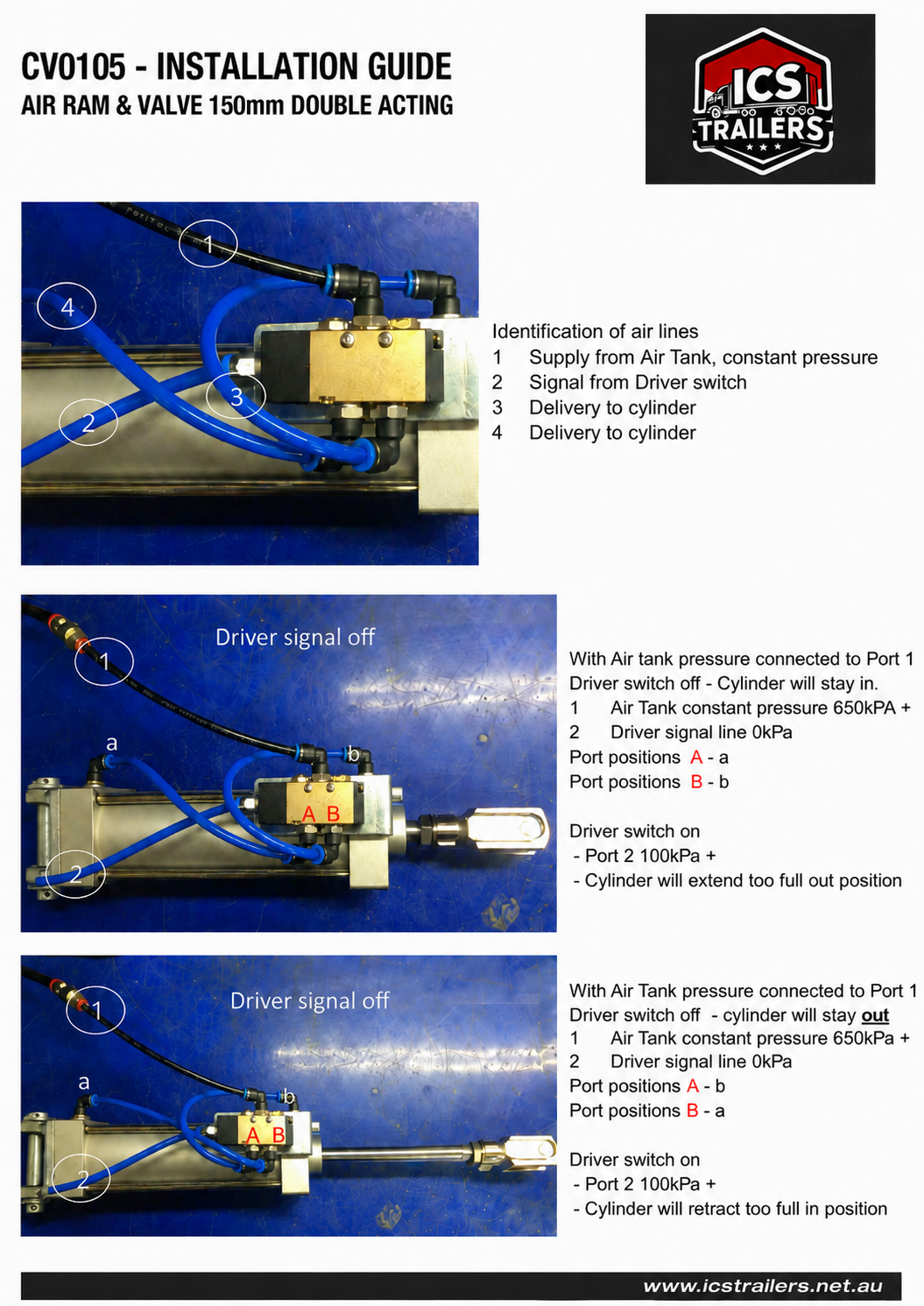

This valve suits the CV0105 double-acting air tailgate cylinder. Compare the existing valve body, port arrangement and air-line connections because similar cylinders can use different pilot-valve configurations.

These cross-references show where this valve replaces the part numbers and applications listed. Some air line changes may be needed.

CV0113

Related Parts

Compliance and Safety

Depressurise the pneumatic system before removing the valve. Check air lines, fittings and cylinder ports for damage or contamination, then confirm secure connections before operation.

Trailer Applications

This pilot valve suits pneumatic trailer tailgate systems using the matching double-acting cylinder arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

The key selection point is matching the pilot valve to the existing cylinder and air-line arrangement. If the old valve is damaged or unmarked, send through photos of the cylinder, valve and port connections so ICS Trailers can help narrow down the replacement. This also helps identify adjoining tailgate pneumatic hardware needed for the repair.
