Description

Overview

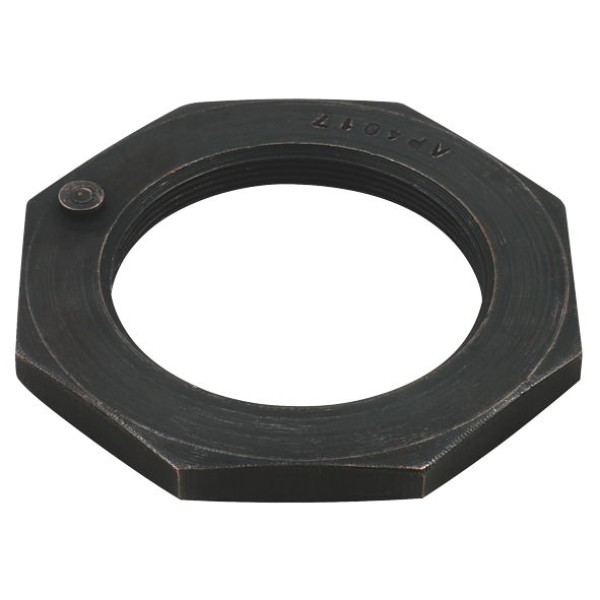

The Rubery Owen metric inner axle nut is the bearing adjustment nut used in compatible metric trailer wheel-end assemblies. Its 95mm across-flats size, 63mm internal opening and 9mm thickness distinguish it from similar imperial inner axle nuts.

Features

• Metric inner nut for Rubery Owen Moss wheel-end assemblies.
• 95mm across flats for matching the original nut and service tooling.
• 63mm internal diameter with a compact 9mm thickness.

Specifications and Materials

Across flats: 95mm. Internal diameter: 63mm. Thickness: 9mm.

Part number: AP4017.

See the Meritor technical parts resource for axle and wheel-end service information

Compatibility and Fitment

Check that the axle uses the metric Rubery Owen arrangement and compare the 95mm A/F, internal thread opening and 9mm thickness with the removed nut. The similar imperial inner nut is not interchangeable simply because its outside profile looks alike.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

21205571, A1710

Related Parts

Check the related wheel-end components below when servicing the complete nut and locking arrangement.

Compliance and Safety

Inspect the spindle thread, locking washer and mating nut faces during bearing service. Set bearing adjustment and final locking to the applicable axle service procedure.

Trailer Applications

Mechanics replace this inner nut during hub and bearing work on compatible Rubery Owen and Meritor metric trailer axle wheel ends.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

The important distinction with this nut is the metric wheel-end arrangement, because a similar imperial inner nut can appear almost identical on the bench. ICS Trailers can compare the old markings, nut dimensions and surrounding washer and outer-nut arrangement if identification is uncertain.

• Check the matching lock washer and outer nut during the same wheel-end repair.
• Use old markings and axle details to narrow down close-fitting variants.
