Description

Overview

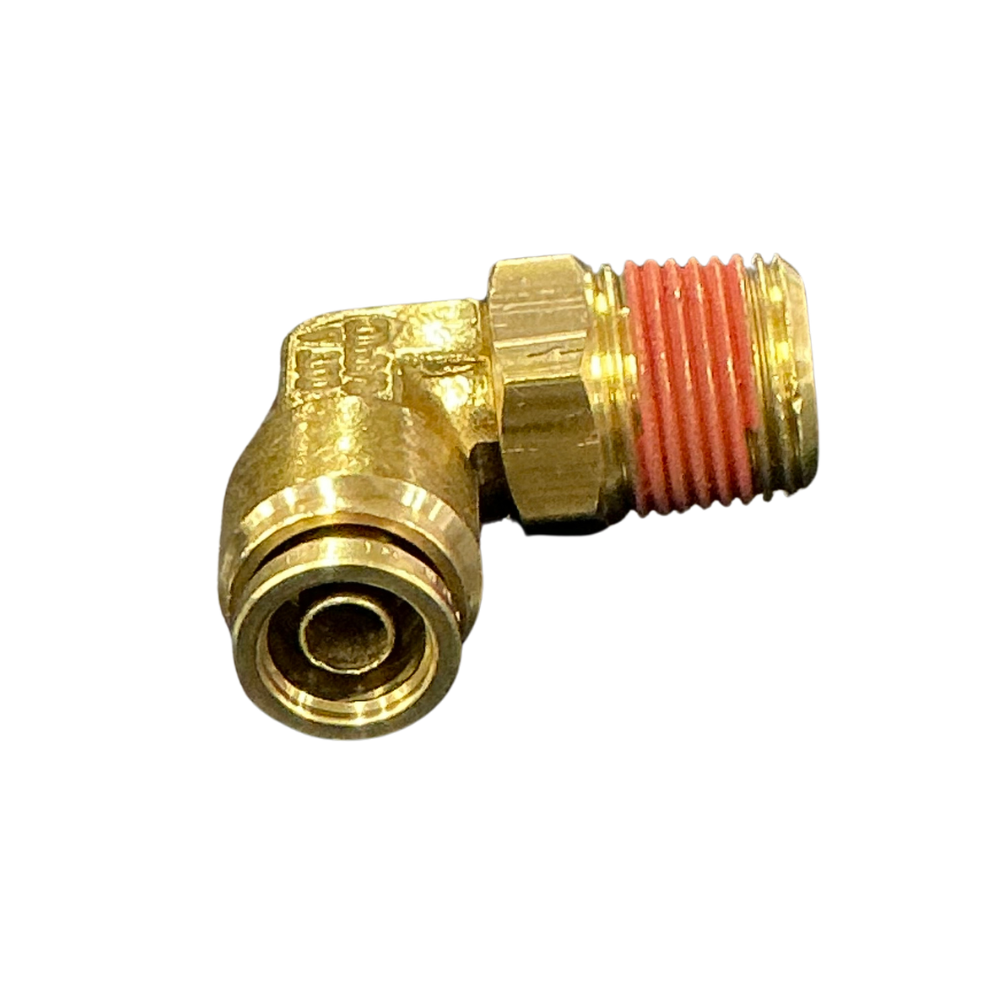

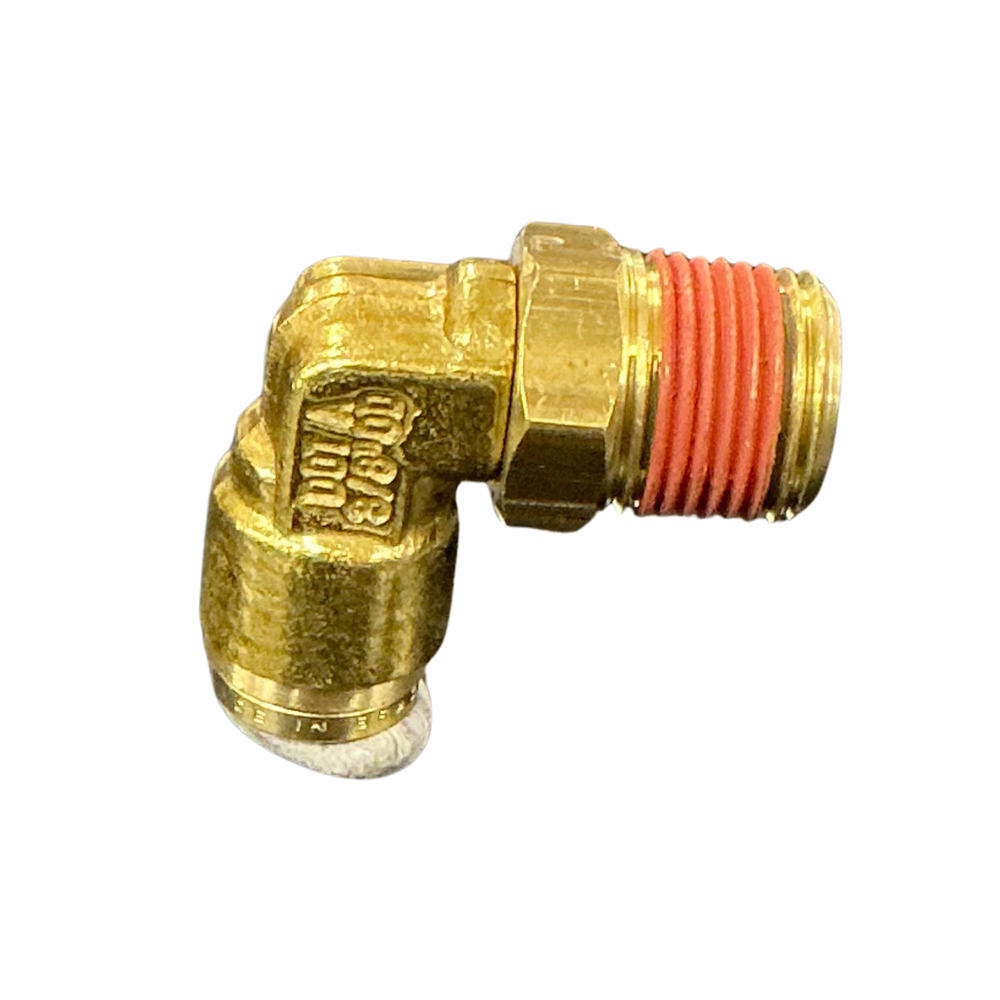

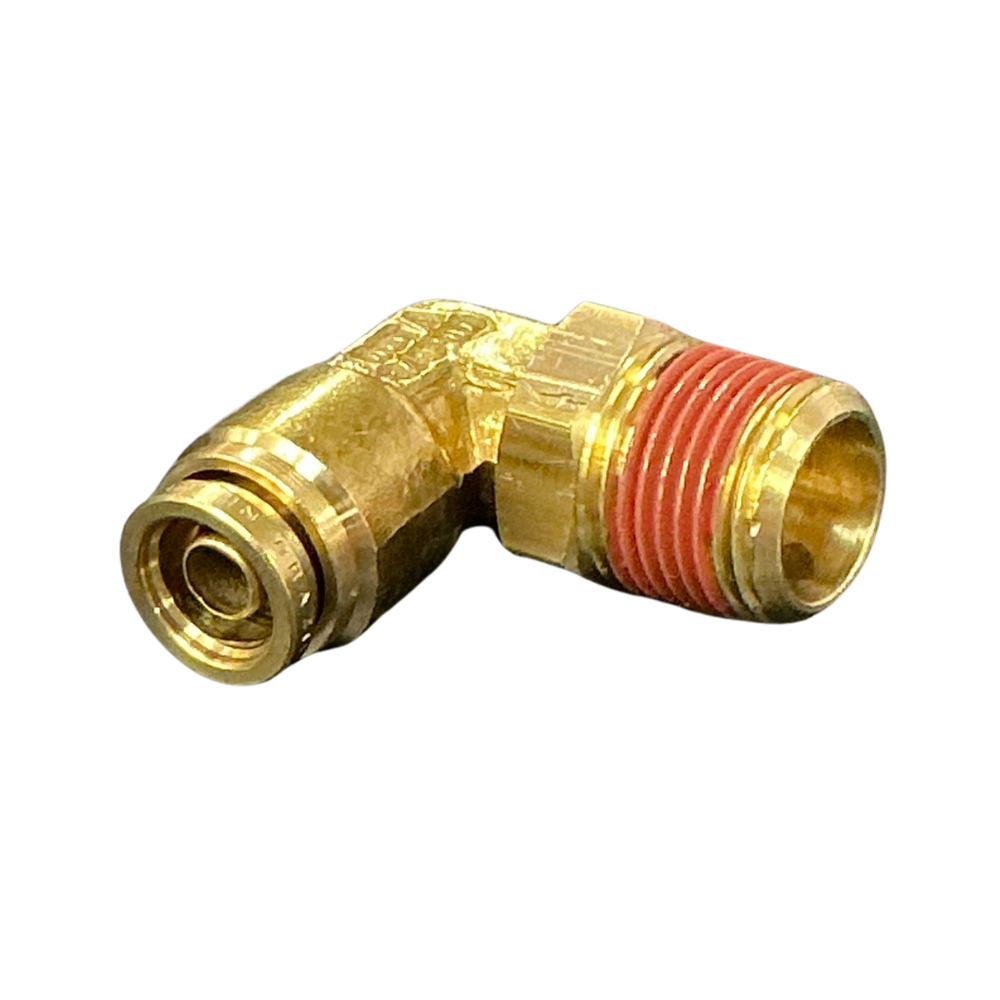

The air brake push-in swivel male elbow connects 3/8in outside-diameter nylon air brake tubing to a 3/8in NPT female port through a 90° bend. Its swivel design allows the tube connection to be positioned for a cleaner route around valves, chassis components and other nearby fittings.

This brass elbow suits truck and trailer pneumatic systems where a fixed elbow would leave the air line facing the wrong direction. The push-in connection also allows tubing to be installed without a separate compression nut or olive.

Features

• Push-to-connect fitting for 3/8in OD nylon air brake tubing.
• 3/8in male NPT threaded connection.
• 90° brass elbow with swivel adjustment for tube orientation.
• Push-in collet connection for convenient tube installation and removal.

Specifications and Materials

Fitting type: DOT-style push-in swivel male elbow.

Tube connection: 3/8in outside diameter.

Thread connection: 3/8in male NPT.

Elbow angle: 90°.

Body material: Brass.

Part number: 88-005S-0606.

For matching dimensions and configurations, see the 90° swivel male elbow technical range.

Compatibility and Fitment

Match the tubing outside diameter and receiving port thread before installation. The air brake push-in swivel male elbow requires 3/8in imperial tubing and a compatible 3/8in NPT female connection. Do not substitute 10mm metric tubing or BSP-threaded ports.

The equivalent GP reference is DQ69DOTS0606. Check the existing elbow angle, swivel arrangement and connection sizes when replacing a damaged fitting.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the air system before removing or installing fittings. Cut the nylon tube square, remove burrs and inspect the outside surface for scratches or damage that could prevent sealing. Push the tube fully into the fitting and check retention.

After installation, pressurise the circuit and inspect both connections for air leaks. Confirm that the tubing has adequate clearance from moving components and sharp edges.

Trailer Applications

Truck and trailer workshops fit swivel elbows where nylon pneumatic lines connect to valves, manifolds and other threaded air-system components. The 90° outlet helps route tubing around nearby equipment without forcing a tight bend immediately beside the connection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies air brake fittings for truck and trailer pneumatic repairs. If you need help matching an existing elbow, send through its markings, tubing outside diameter and threaded connection size so we can help identify the correct replacement.

Browse more Air Fittings
