45° Male Elbow 1/2in Tube x 1/2 NPT Fitting
45° Male Elbow 1/2in Tube x 1/2 NPT Fitting
$16.00

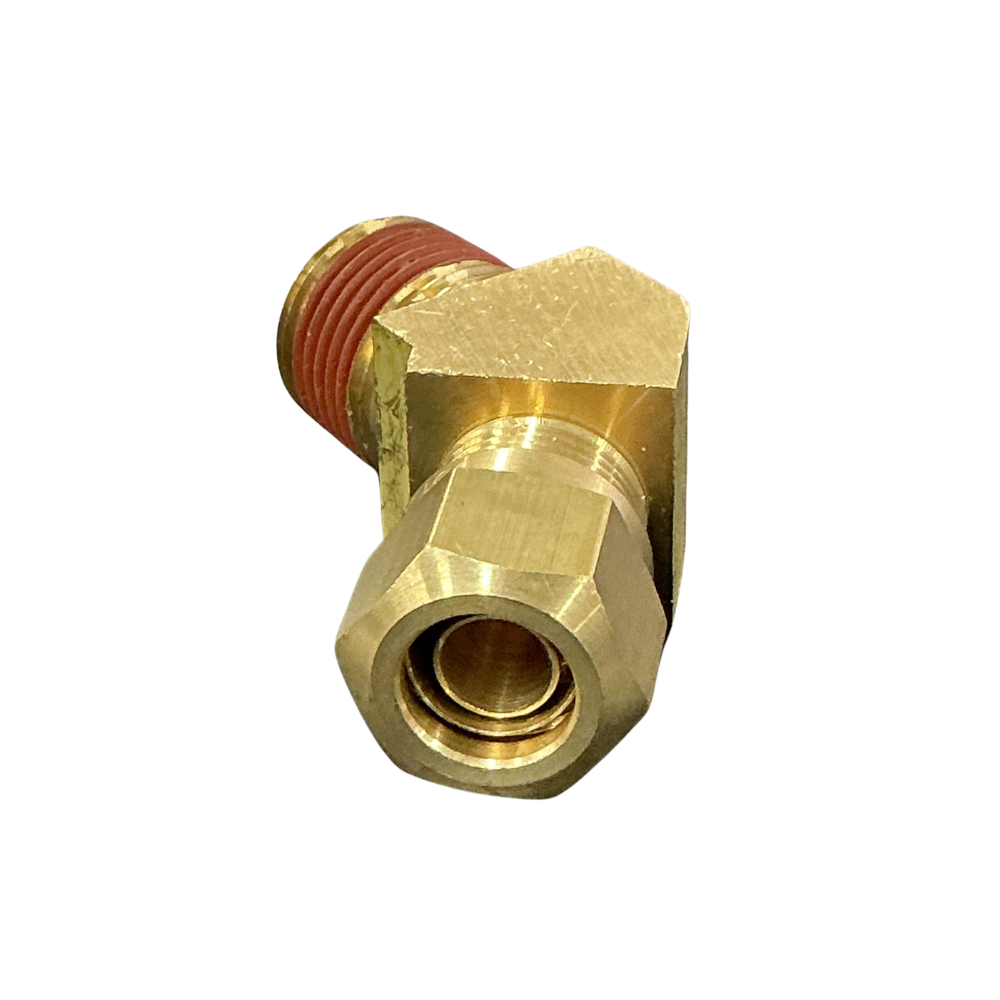

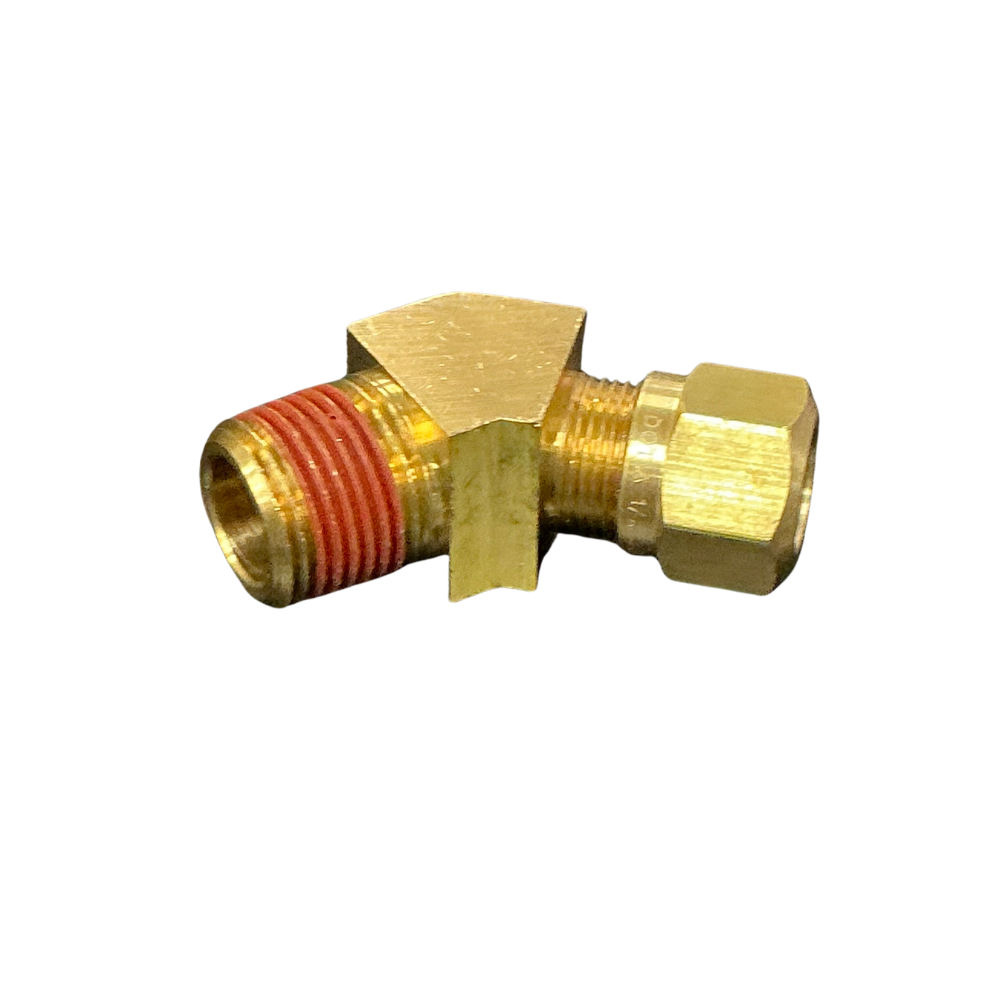

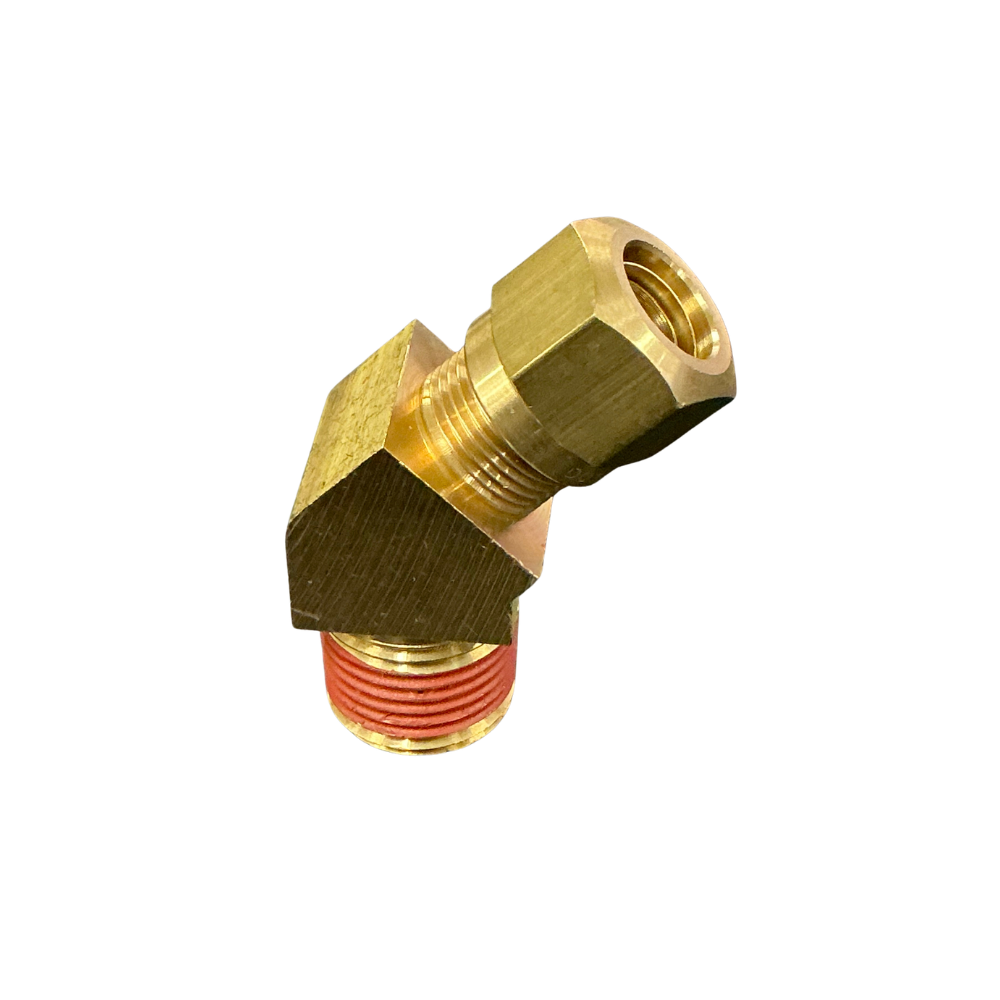

Brass 45° male elbow connects 1/2in J844 nylon air-brake tube to a 1/2 NPT port and includes the compression nut, olive and preassembled tube insert for a complete tube-to-pipe connection in truck and trailer air-brake systems.
Part number 36-005D-0808.
Description
Overview
The air brake elbow connects 1/2in J844 nylon air-brake tube to a 1/2 NPT female port through a fixed 45° male adaptor. Its angled body avoids a tight tube bend.
Features
- Fixed 45° tube-to-male-pipe configuration
- Compression connection for 1/2in nylon tube
- Brass body with pre-applied male-thread sealant
- Includes the nut, olive and preassembled tube insert
Specifications and Materials
Product type: #5NAD 45° male air-brake elbow adaptor.
Connections: 1/2in nylon tube compression to 1/2 NPT male pipe thread.
Tube nut thread: 11/16×20.
Pressure rating: up to 200 PSI or 1400 kPa.
Temperature range: 0°C to 120°C.
Construction: D.O.T.-approved brass compression fitting.
Part number: 36-005D-0808.
Review the official NTA and 1400 Series air-brake fitting guide
Compatibility and Fitment
Confirm the tube is 1/2in outside diameter and the receiving port accepts a 1/2 NPT male thread. This air brake elbow does not suit BSP ports, female threads or tube-to-tube joins.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP54CDOT0808, 00495-0808, 004950808, 177.8076, 1778076, 177.14748D, 17714748D, 980-8-8, 98088, 980-8-8C, 98088C, 480-88, 48088, TH278FF, GB08115-0808, GB081150808, 90738, 1480X8X8, 279NTA-8-8, 279NTA88, VS279NTA-8-8, VS279NTA88, S779AB-8-8, S779AB88, 1374-8D, 13748D, 017888, 38155, M-4371, M4371, G32102-0808, G321020808, 10797-1, 107971, 1374-8DTEC, 13748DTEC, 4485-14748D, 448514748D, TEW1374-8D, TEW13748D, PA10772, 79NAB-8D, 79NAB8D, D1474-8D, D14748D, D2030-5016, D20305016, G7046-08-08, G70460808, H1480X8X8, 1474-8DPX10, 14748DPX10
Related Parts
Check these replacement components before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement component | 36-001-08 | 1/2in tube olive |
| Replacement component | 36-002-08 | 1/2in tube nut |
| Replacement component | 36-099-08 | 1/2in tube insert |
Compliance and Safety
Depressurise the system. Cut the tube square, remove burrs or damage, seat it fully over the insert and tighten the nut. Hand-start the male thread, tighten on the body hex, then repressurise gradually and leak-test both joints.
Trailer Applications
Use this fitting where a 1/2in nylon air line approaches a valve or manifold port at an angle. The 45° body reduces tube bend compared with a straight adaptor.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| GP54CDOT0808 | 00495-0808 | 004950808 |
| 177.8076 | 1778076 | TH278FF |
| 177.14748D | 17714748D | 017888 |
| 980-8-8 | 98088 | 38155 |
| 980-8-8C | 98088C | 90738 |
| 480-88 | 48088 | 1480X8X8 |
| GB08115-0808 | GB081150808 | PA10772 |
| 279NTA-8-8 | 279NTA88 | H1480X8X8 |
| VS279NTA-8-8 | VS279NTA88 | 10797-1 |
| 107971 | S779AB-8-8 | S779AB88 |
| 1374-8D | 13748D | M-4371 |
| M4371 | G32102-0808 | G321020808 |
| 1374-8DTEC | 13748DTEC | 4485-14748D |
| 448514748D | TEW1374-8D | TEW13748D |
| 79NAB-8D | 79NAB8D | D1474-8D |
| D14748D | D2030-5016 | D20305016 |
| G7046-08-08 | G70460808 | 1474-8DPX10 |
| 14748DPX10 |
Why Choose ICS Trailers
ICS Trailers supplies matching 1/2in olives, nuts and inserts. Send old markings and photos if the connection needs checking.
Browse more Air Fittings
Online prices apply to website orders only. In-store pricing may differ.
