Overview

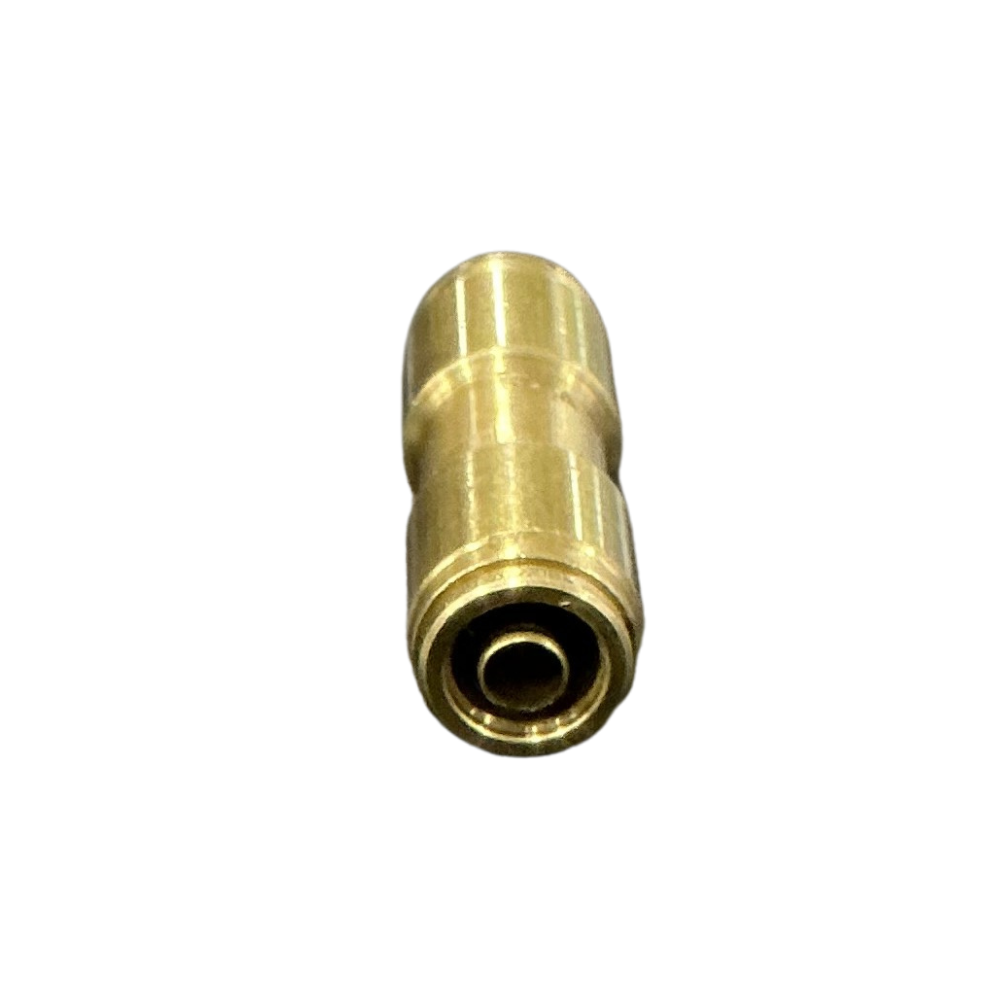

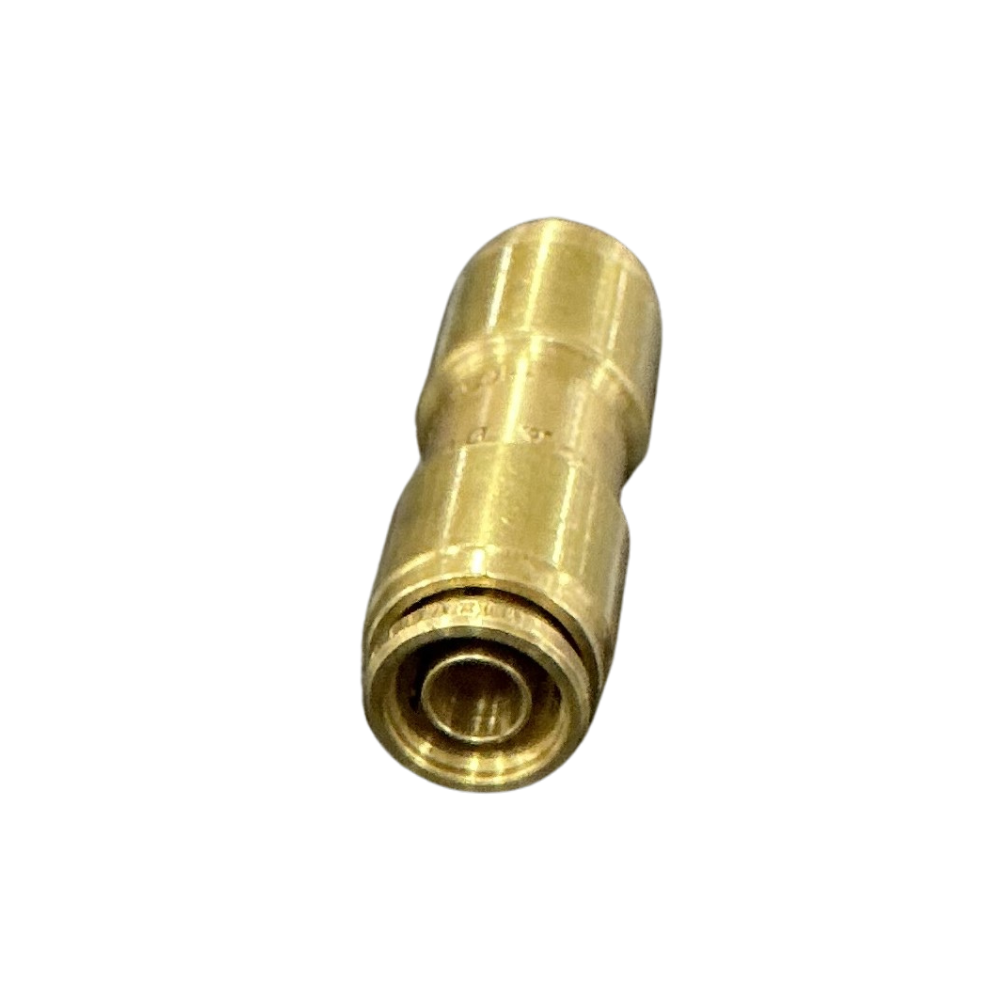

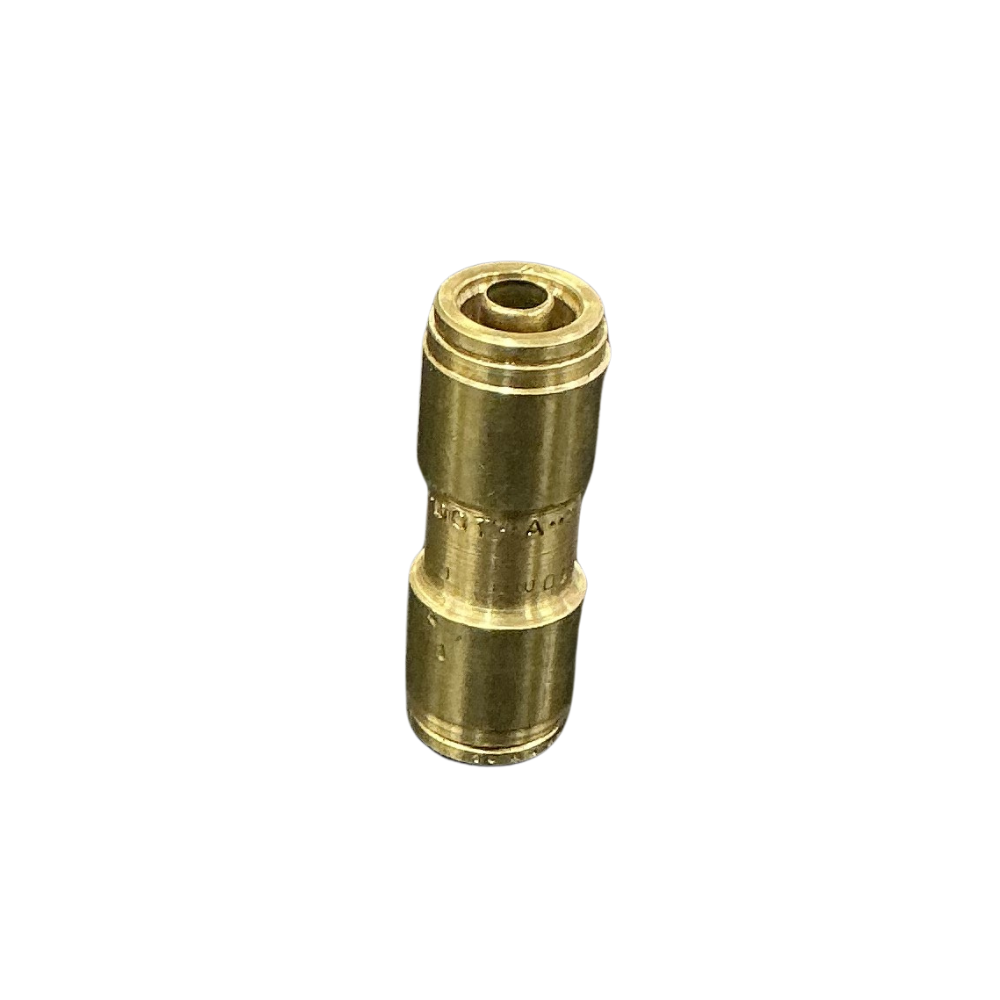

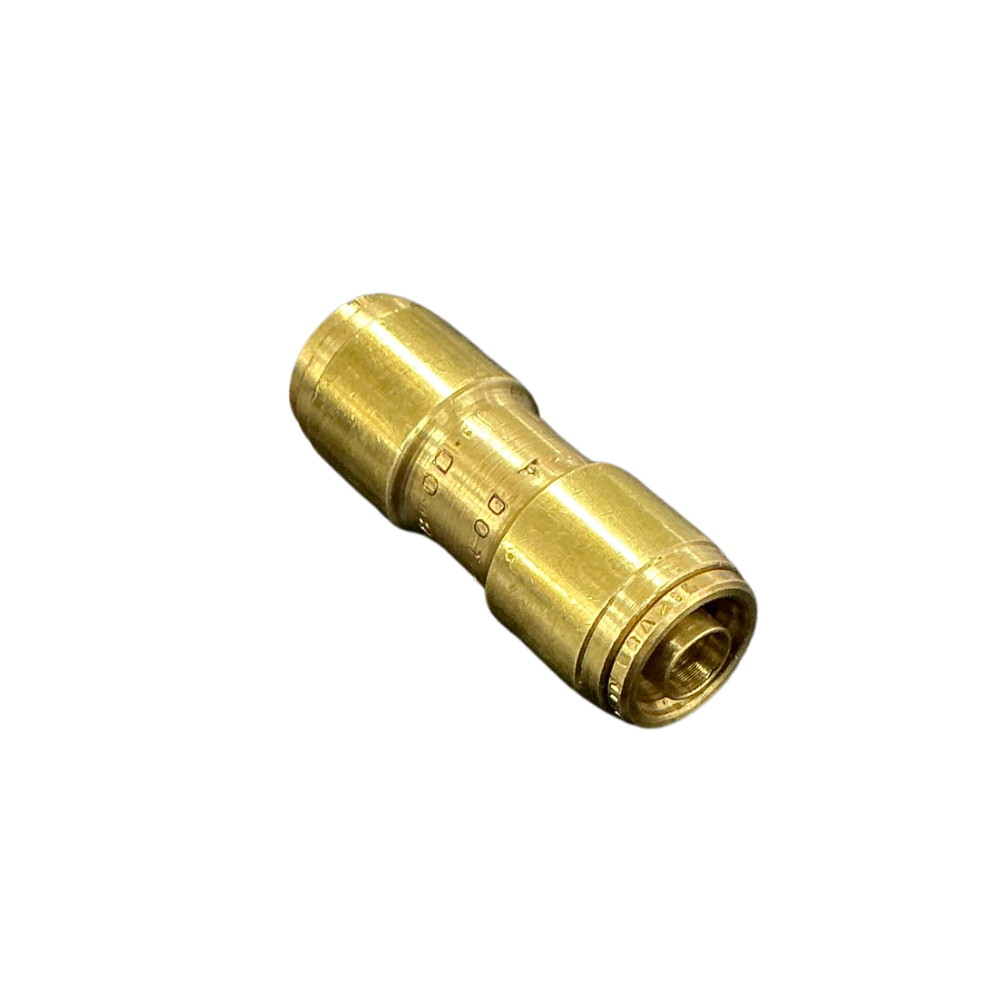

The 3/8 x 10/7mm unequal union joins an imperial 3/8-inch nylon air line to a metric 10/7mm nylon tube in one straight fitting. It provides a direct tube-to-tube transition where a trailer or heavy vehicle air system changes between imperial and metric plumbing without adding threaded adaptors.

Features

• Connects 3/8-inch imperial tube to 10/7mm metric tube
• Straight push-in layout keeps the air path aligned
• Separate collets retain each tube size securely
• Brass body suits compact pneumatic repair work

Specifications and Materials

Product type: DOT push-to-connect unequal union. Connection one: 3/8-inch outside-diameter nylon tube. Connection two: 10/7mm nylon tube. Configuration: straight imperial-to-metric joiner. Construction: machined brass body with push-in collets at both ends. No threaded connection, olive or compression nut is required.

Part number: DQ62DOT06M10/7.

Review the manufacturer DOT fitting identification chart

Compatibility and Fitment

Select the 3/8 x 10/7mm unequal union only when the two existing tube sizes match its different ends. Measure the imperial line across its outside diameter and check the metric tube markings for 10/7mm. Do not treat 3/8 inch and 10mm as interchangeable sizes, and do not use this fitting when both lines are the same diameter.

Cut both tubes square and remove scratched, flattened or heat-damaged material. Each tube must enter its matching end straight and reach the internal stop without being stretched, twisted or side-loaded.

Compliance and Safety

Depressurise the complete pneumatic circuit before cutting or disconnecting any line. After fitting, restore pressure gradually and inspect both push-in connections for leakage and tube movement. Pull back lightly on each tube to confirm retention, then check that the repaired line remains clear of sharp edges, heat sources and moving components.

Trailer Applications

This unequal joiner suits compatible trailer air brake, air suspension and auxiliary pneumatic systems that combine imperial and metric nylon tubing. It is particularly useful during component changes, imported equipment repairs or line replacements where the existing 3/8-inch run must continue into a 10/7mm tube without changing direction.

Why Choose ICS Trailers

Mixed imperial and metric air lines are easy to misidentify during workshop repairs. Check both tube ends before ordering, or send clear photos of the tube markings and outside-diameter measurements when the sizes are uncertain.
