Description

Overview

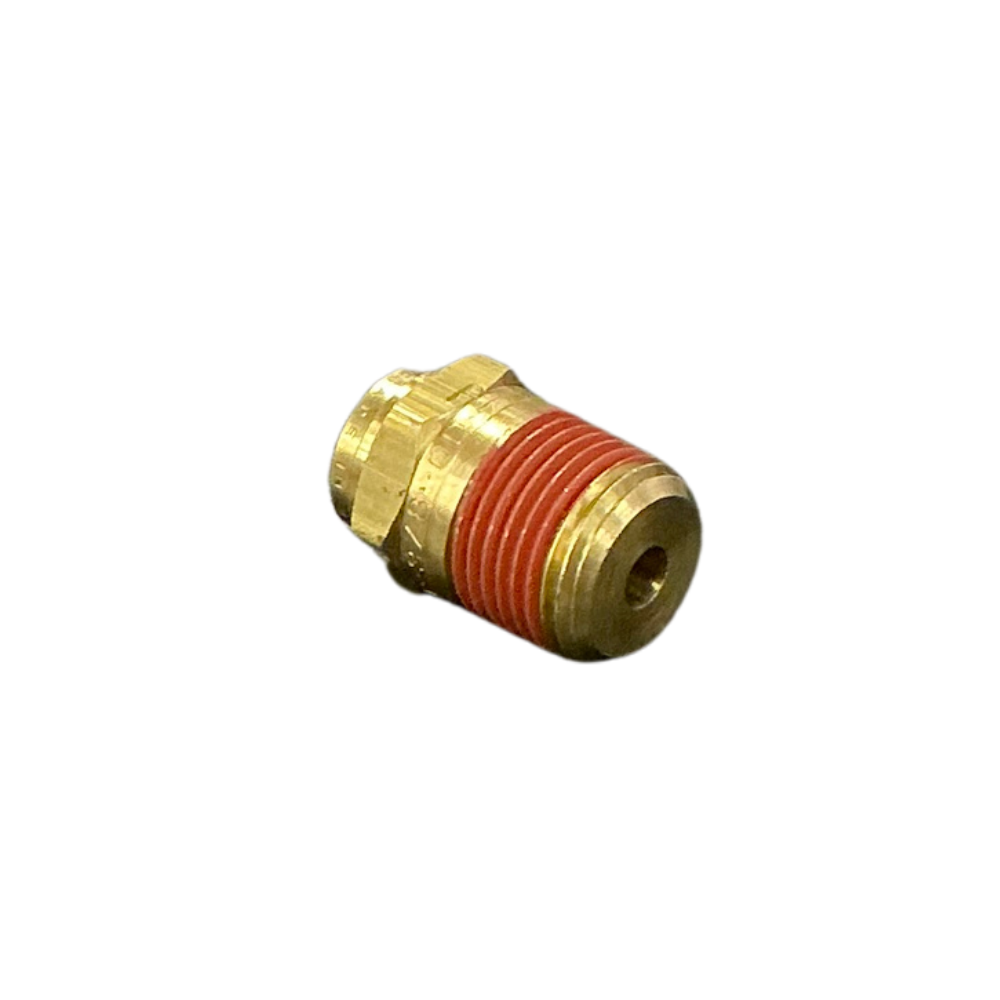

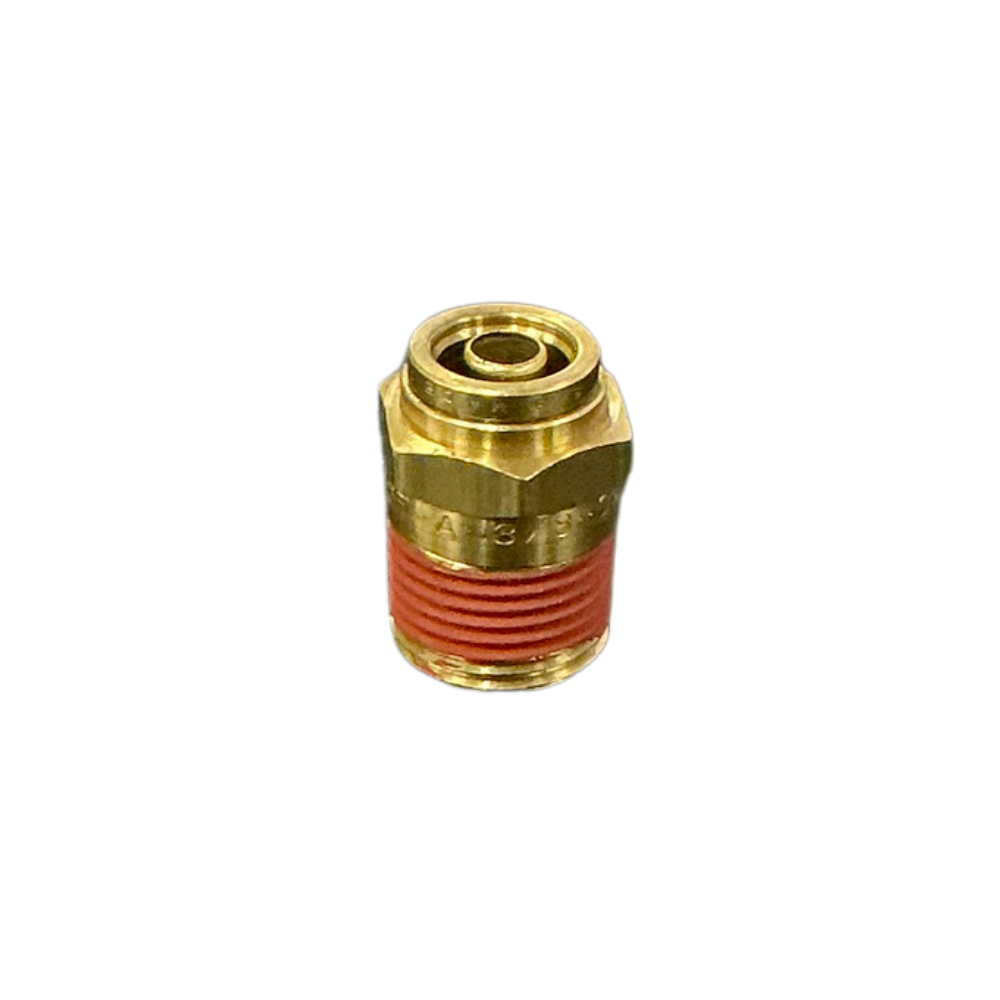

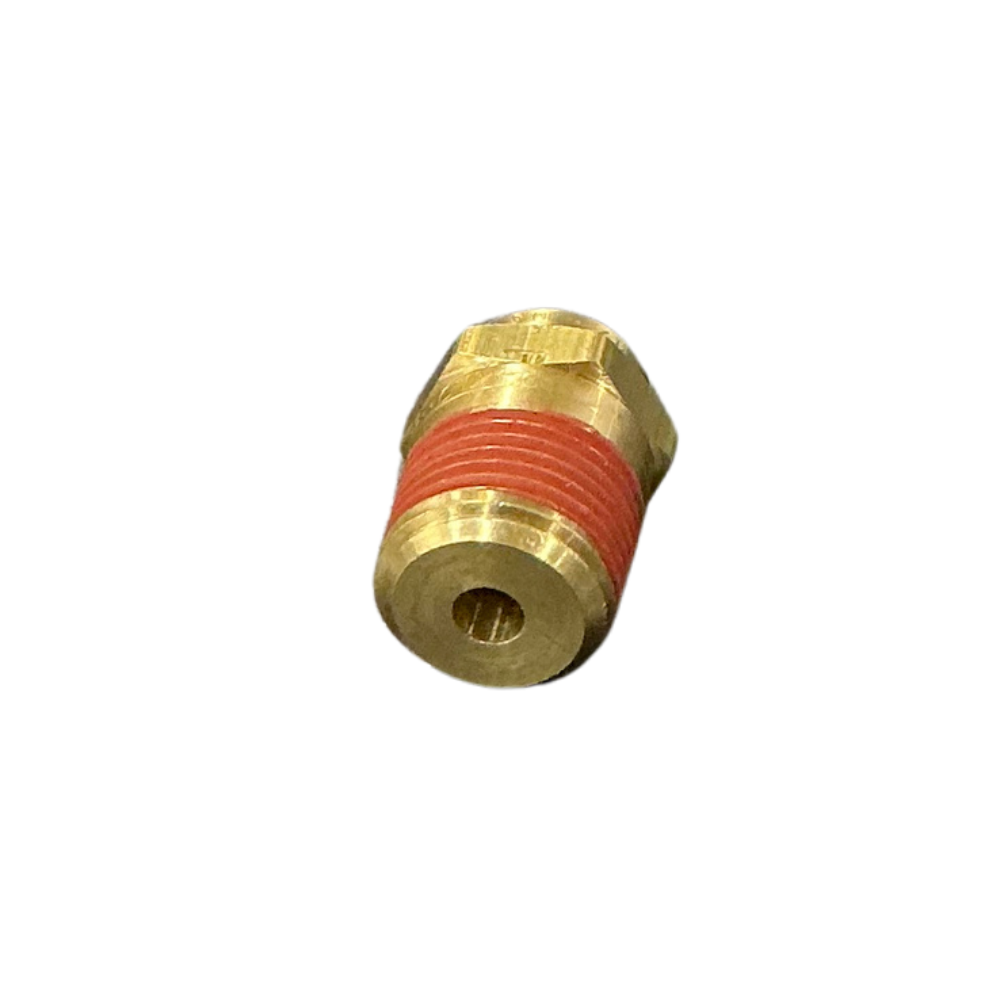

The 3/8 x 3/8 NPT male connector joins 3/8-inch outside-diameter nylon air-brake tubing to a 3/8 NPTF female threaded port. Its straight brass body connects an imperial air line directly to compatible pneumatic valves, manifolds and other threaded components without a separate adaptor.

Features

• Push-in collet accepts 3/8-inch OD nylon air-brake tubing.
• 3/8 NPTF tapered male pipe thread for compatible female ports.
• Integrated tube support and gripping mechanism eliminate separate compression nuts and olives.
• Release collet allows tube removal during servicing.

Specifications and Materials

The connector combines a brass body, internal tube support, gripping collet and pneumatic sealing components. Its hexagonal section provides a tightening surface, while the straight passage keeps the air line aligned with the threaded connection. The reusable push-in design allows the tube to be disconnected without removing the entire fitting.

Part number: DQ68DOT0606.

See the manufacturer DOT imperial male connector specifications

Compatibility and Fitment

Match the 3/8 x 3/8 NPT male connector to 3/8-inch OD (9.525mm) nylon tubing and a 3/8 NPTF female port. Although both connections use the same nominal fraction, the tube measurement describes its actual outside diameter, while the pipe-thread measurement describes a nominal thread size.

Check the original port’s thread form before installation. BSP and NPT threads are not interchangeable, and 10mm metric tubing cannot replace 3/8-inch imperial tube.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-680606, 35680606, AQ68-DOT-6X6, AQ68DOT6X6, 1868X6X6, 3115 60 18DOT, 31156018DOT, 1168X6X6

Related Parts

Compare these alternative connections when the existing tube size, thread or installation angle differs.

Compliance and Safety

Depressurise the pneumatic circuit before installation. Cut the nylon tube squarely, remove damaged ends and insert it fully into the collet. Inspect the mating threads and use the appropriate NPTF sealing method. Tighten through the brass hex without overtightening, then restore pressure and leak-test both connections.

Trailer Applications

This straight connector suits compatible truck and trailer brake-control valves, air-suspension equipment, pneumatic manifolds and auxiliary air circuits where a 3/8-inch nylon line terminates at a 3/8 NPTF female port.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial pneumatic fittings for heavy vehicle repairs. When replacing an unmarked connector, send the tube outside diameter, thread measurements and a photograph so we can help distinguish NPT fittings from similar BSP and metric connections.
