Description

Overview

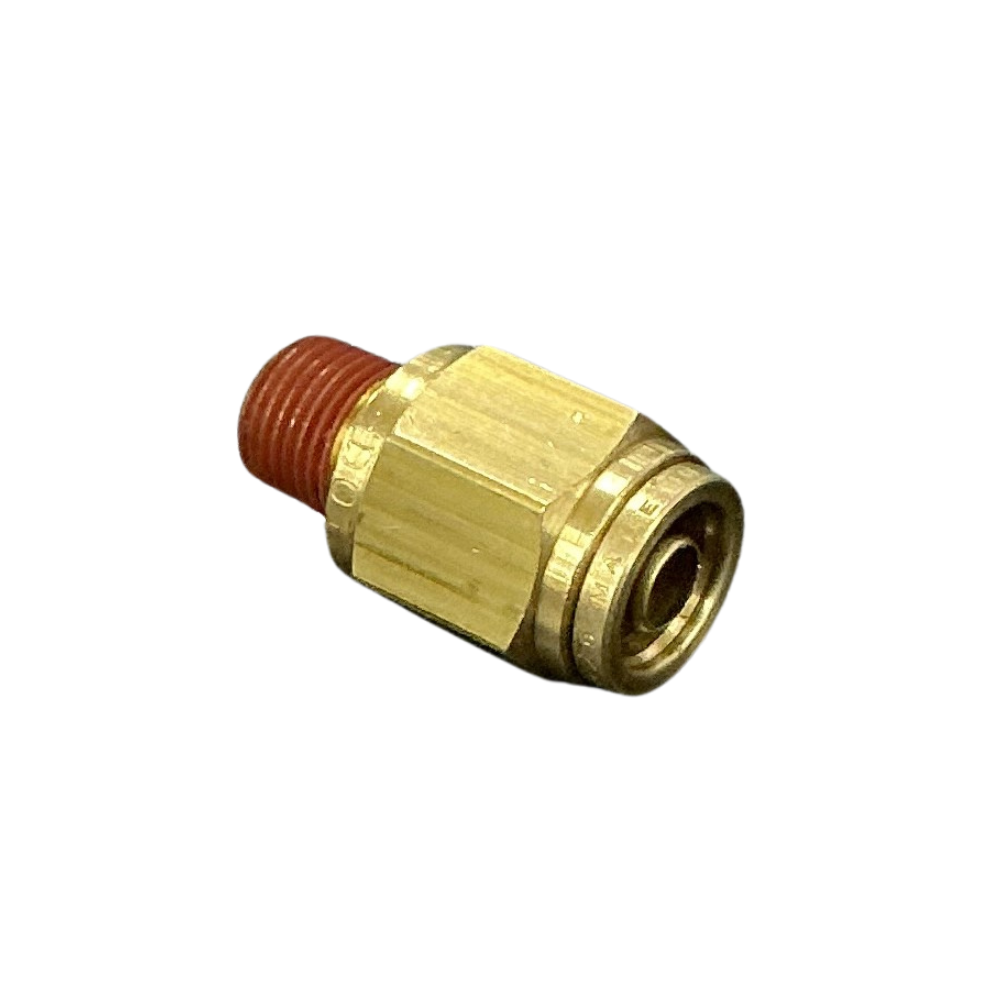

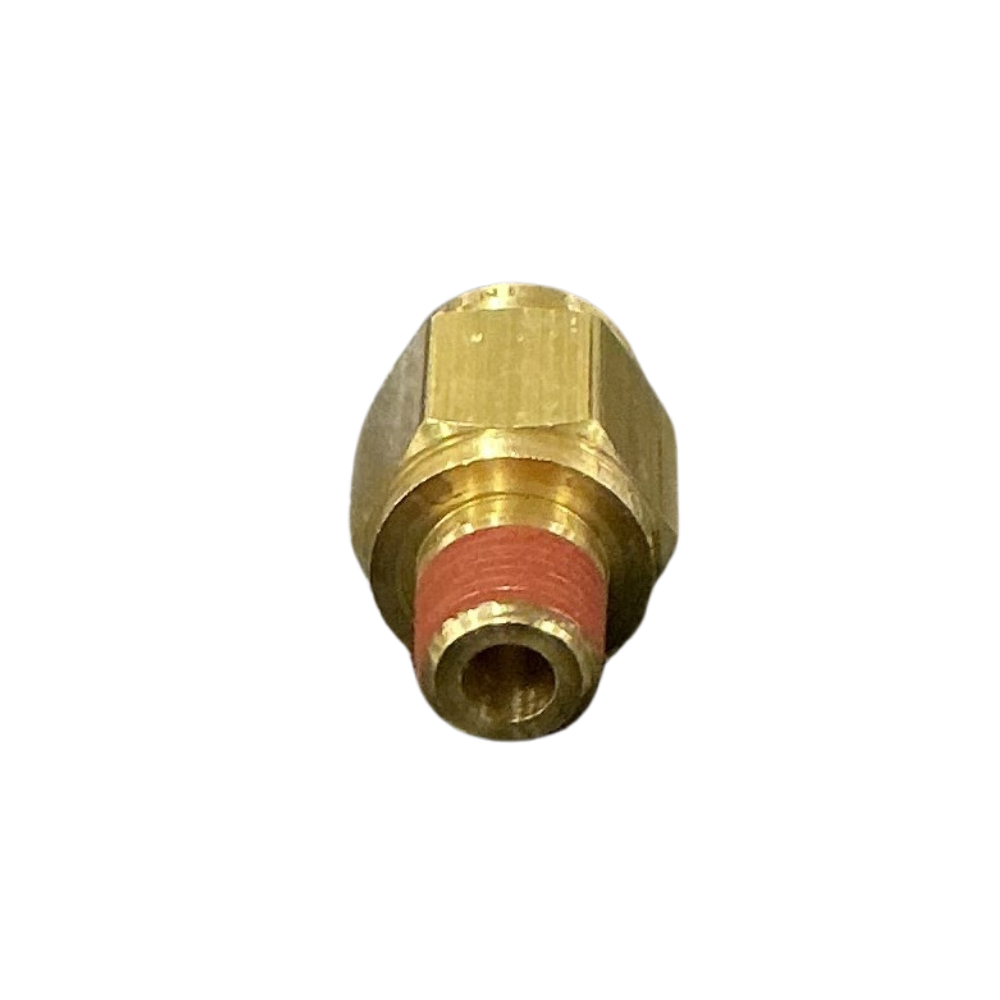

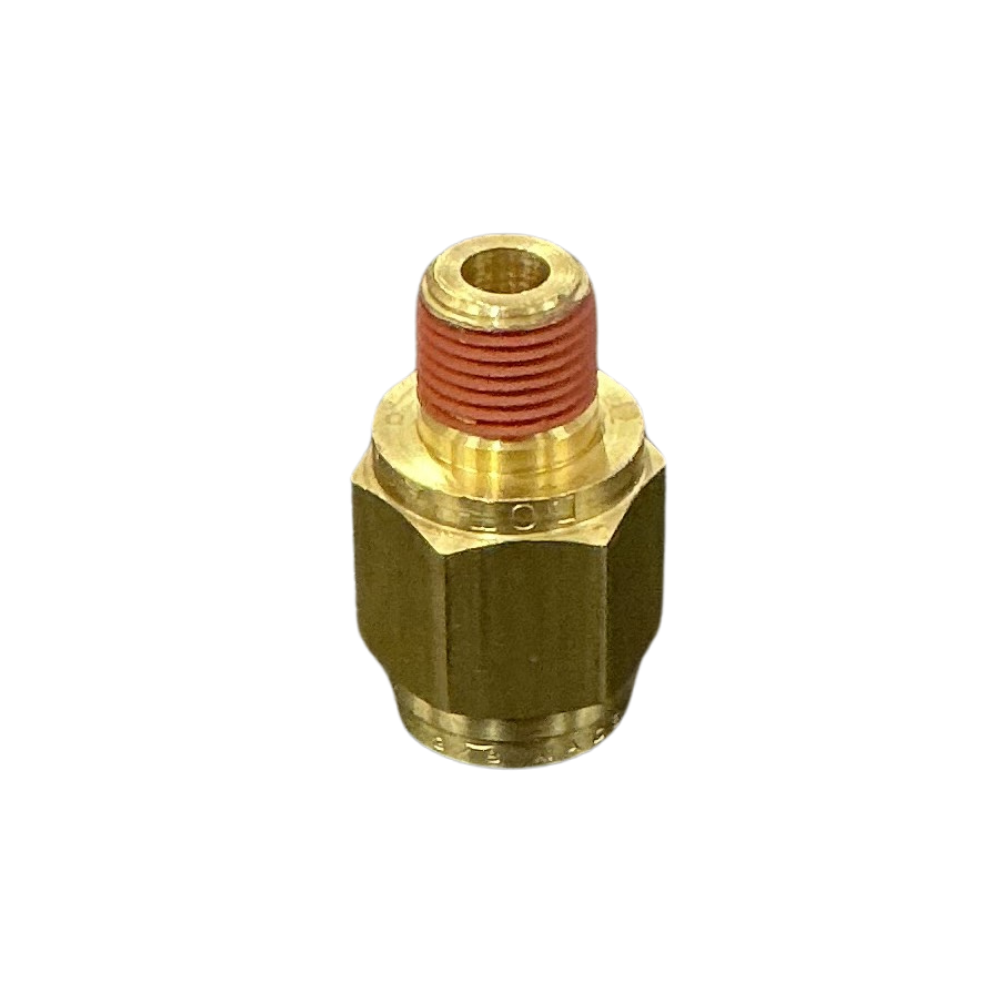

The 3/8 x 1/8 NPT male connector joins 3/8-inch outside-diameter nylon air-brake tubing to a 1/8 NPTF female pipe port. Its straight brass body connects the tube to smaller threaded pneumatic ports without an adaptor.

Features

• Push-in connection grips 3/8-inch OD imperial nylon air-brake tube.
• 1/8 NPTF tapered male pipe thread fits a matching female port.
• Integrated tube support and gripping collet replace loose compression components.
• Releasable collet allows tube removal during pneumatic servicing.

Specifications and Materials

The brass body combines the tube grip, support and seal. Its hexagon allows tightening without twisting the nylon line. Unlike metric M-series fittings, the tapered pipe-thread end does not use a metric face-sealing connection.

Part number: DQ68DOT0602.

Review the manufacturer DOT imperial male connector technical range

Compatibility and Fitment

Match the 3/8 x 1/8 NPT male connector to 3/8-inch OD (9.525mm) nylon air-brake tube and a 1/8 NPTF female port. The 1/8-inch figure is the nominal pipe thread, not a tube dimension. BSP and NPT threads differ, even when they appear similar. Check tube wall thickness against the internal support.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-680602, 35680602, AQ68-DOT-6X2, AQ68DOT6X2, 1868X6X2, 3115 60 11DOT, 31156011DOT, 1168X6

Related Parts

Choose an alternative when the tube size, port thread or required direction differs.

Compliance and Safety

Depressurise the circuit before removal. Cut the tube squarely, discard damaged ends and insert it fully into the collet. Tighten through the hex using the specified NPTF sealing method, without overtightening the small port. Restore pressure gradually and leak-test both connections.

Trailer Applications

Use it on compatible trailer brake-control valves, pneumatic blocks and auxiliary equipment where a 3/8-inch line enters a 1/8 NPTF port in line.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

For an unmarked connector, send ICS Trailers the tube OD, port thread and a photograph. This helps distinguish the 1/8 NPTF version from BSP alternatives.
