Description

Overview

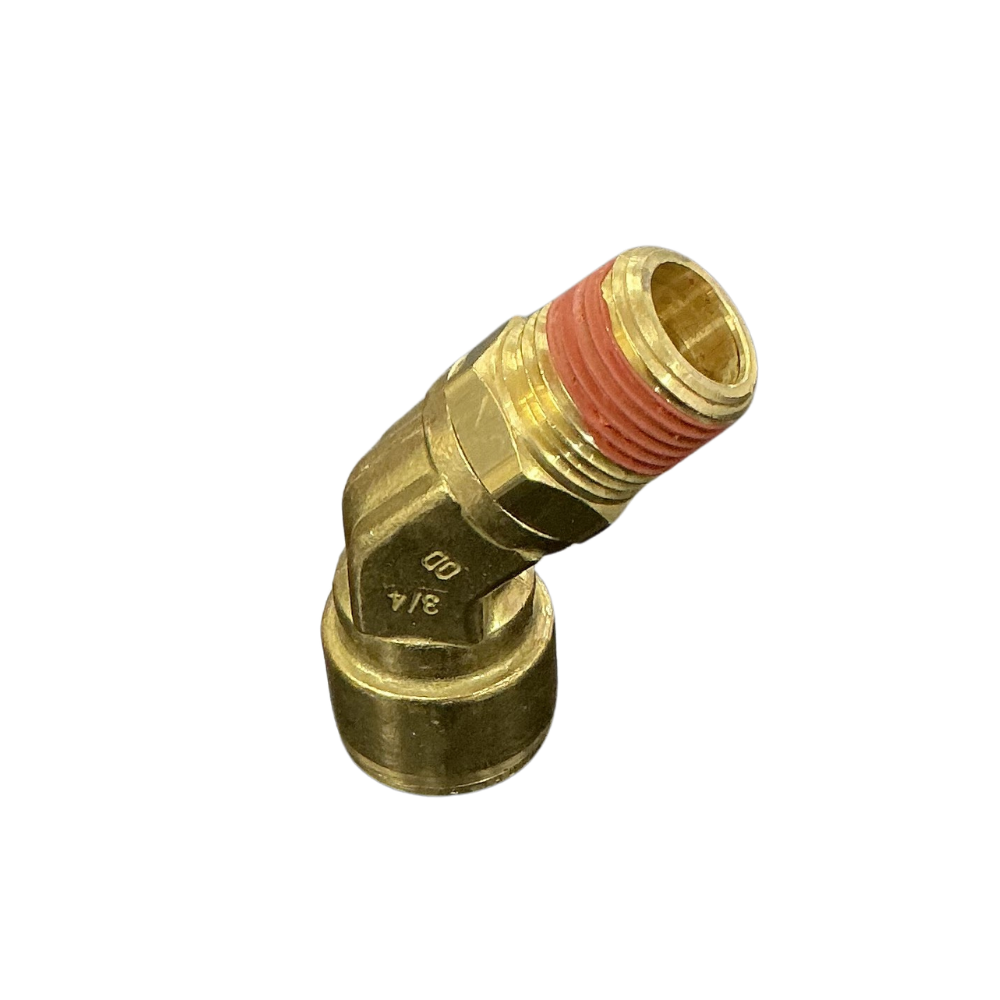

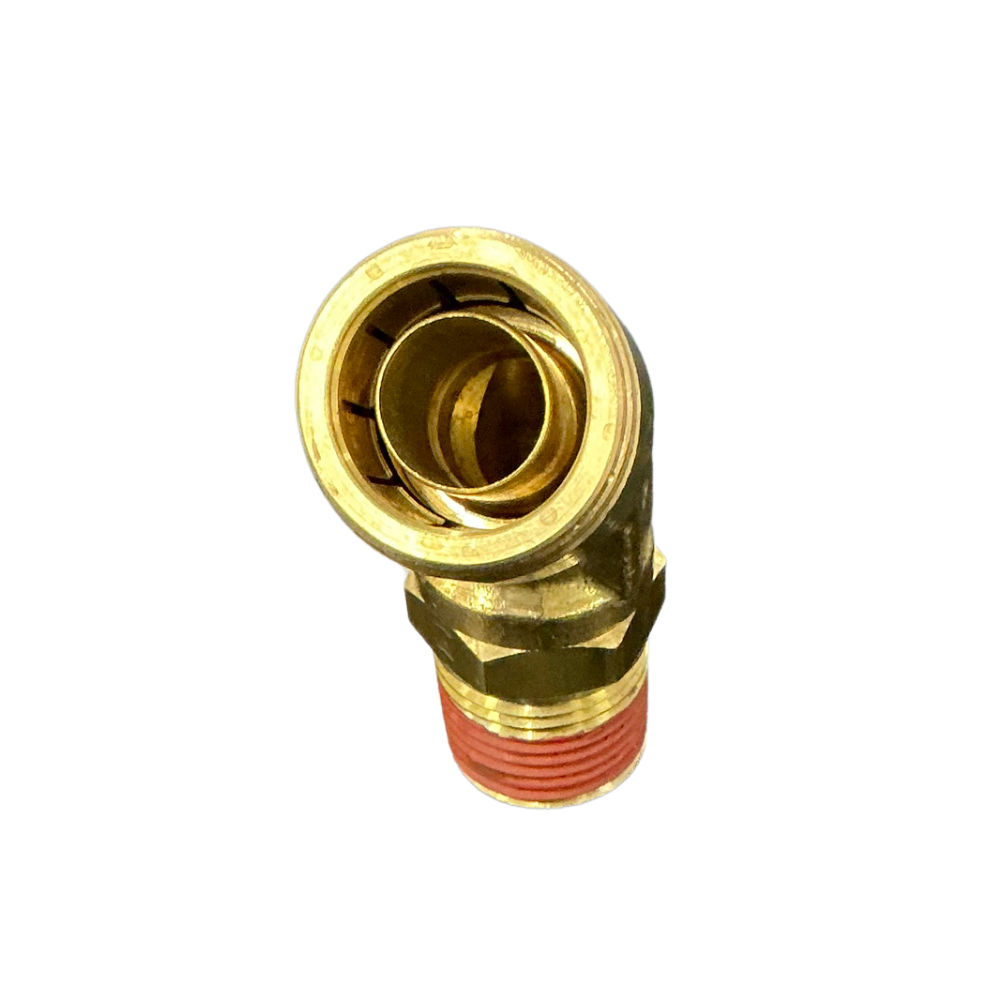

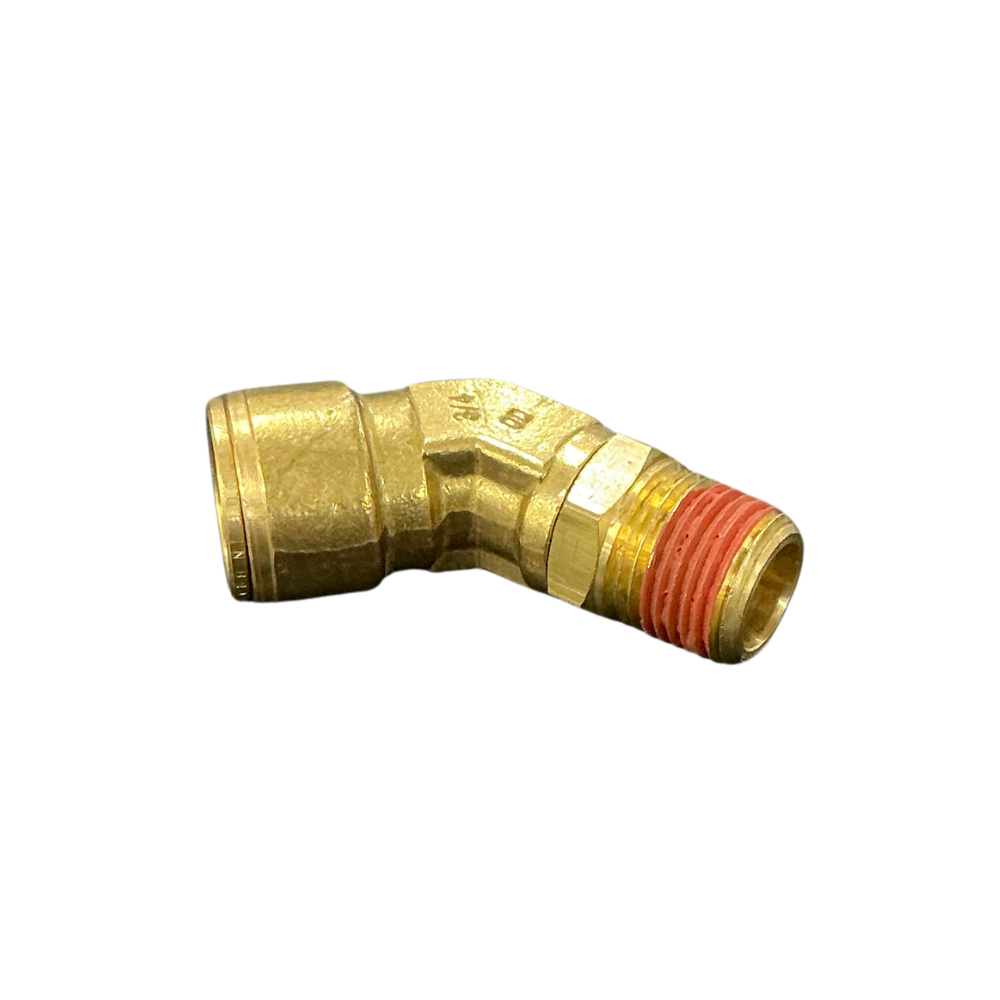

The 3/4 swivel male elbow connects 3/4-inch outside-diameter nylon air tube to a 1/2 NPT male port and changes the line direction by 45 degrees. Its swivel base lets the outlet be aligned before the system is pressurised, helping the larger tube clear valves, reservoirs, brackets and chassis rails.

Features

• Push-in connection for 3/4-inch OD nylon air tube
• 1/2 NPT male threaded connection
• 45-degree outlet with an adjustable swivel base
• Reusable collet-style tube connection

Specifications and Materials

Product type: DOT push-in air brake fitting. Configuration: 45-degree swivel male elbow. Tube connection: 3/4-inch outside diameter. Thread connection: 1/2 NPT male. Construction: brass body with a push-in collet and threaded male connection.

Part number: 88-005DS-1208.

See the manufacturer 45-degree swivel elbow specifications

Compatibility and Fitment

Confirm that the air line measures 3/4 inch across its outside diameter and that the receiving port uses 1/2 NPT. Do not select the fitting by nominal hose bore or substitute 19mm tube without checking its actual outside diameter. Also confirm NPT rather than BSP thread, as the two forms are not interchangeable.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. DQ54DOTS1208, 1880X12X8S

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the circuit before installation. Cut the nylon tube square, remove scored or distorted material and insert it fully through the collet. Use the swivel only to set the installed direction. Then pressure-test both connections and check the tube route for abrasion, heat and movement.

Trailer Applications

The 3/4 swivel male elbow suits compatible trailer air brake, air suspension and auxiliary pneumatic lines where a large nylon tube enters a 1/2 NPT valve, manifold or reservoir port. Its 45-degree route gives a shallower change of direction than a 90-degree elbow.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Large imperial fittings can be confused with nearby metric sizes or the wrong pipe thread. Send photos of the old fitting, tube markings and receiving port if the connection is difficult to identify.

Browse more Air Fittings
