Description

Overview

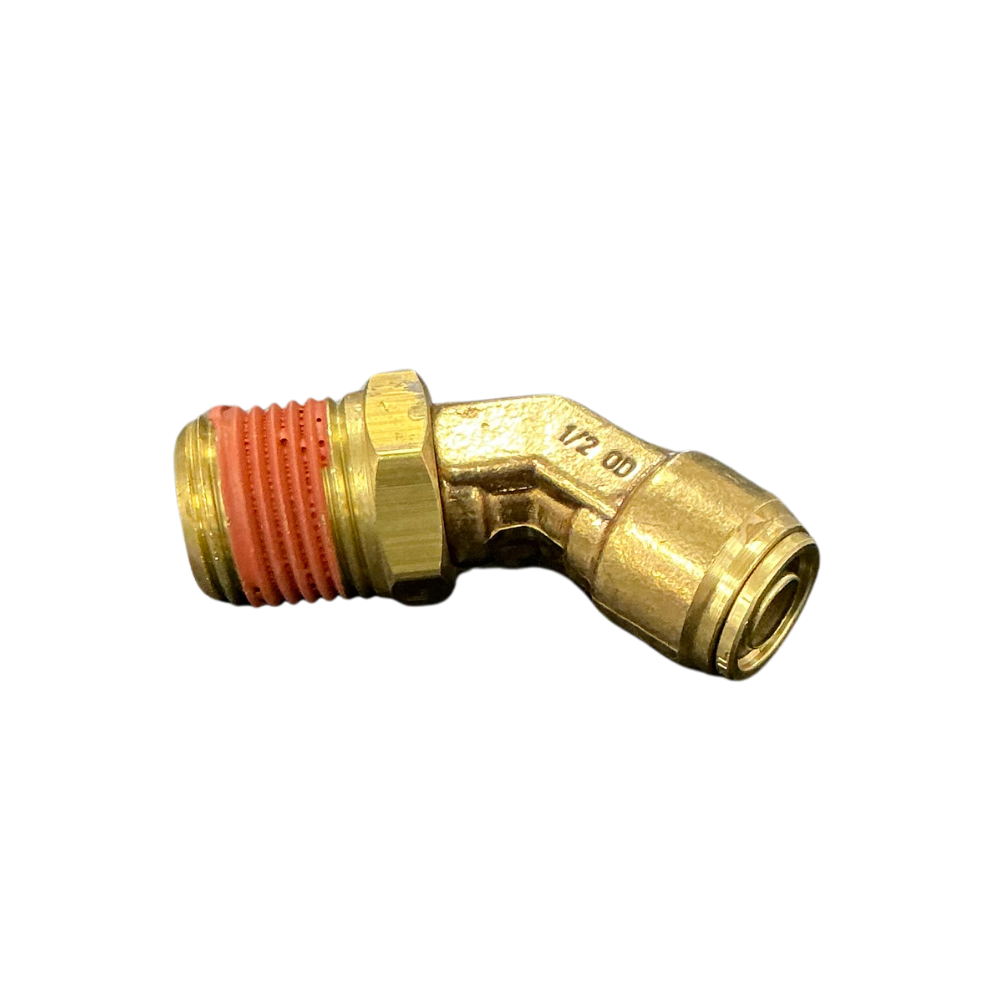

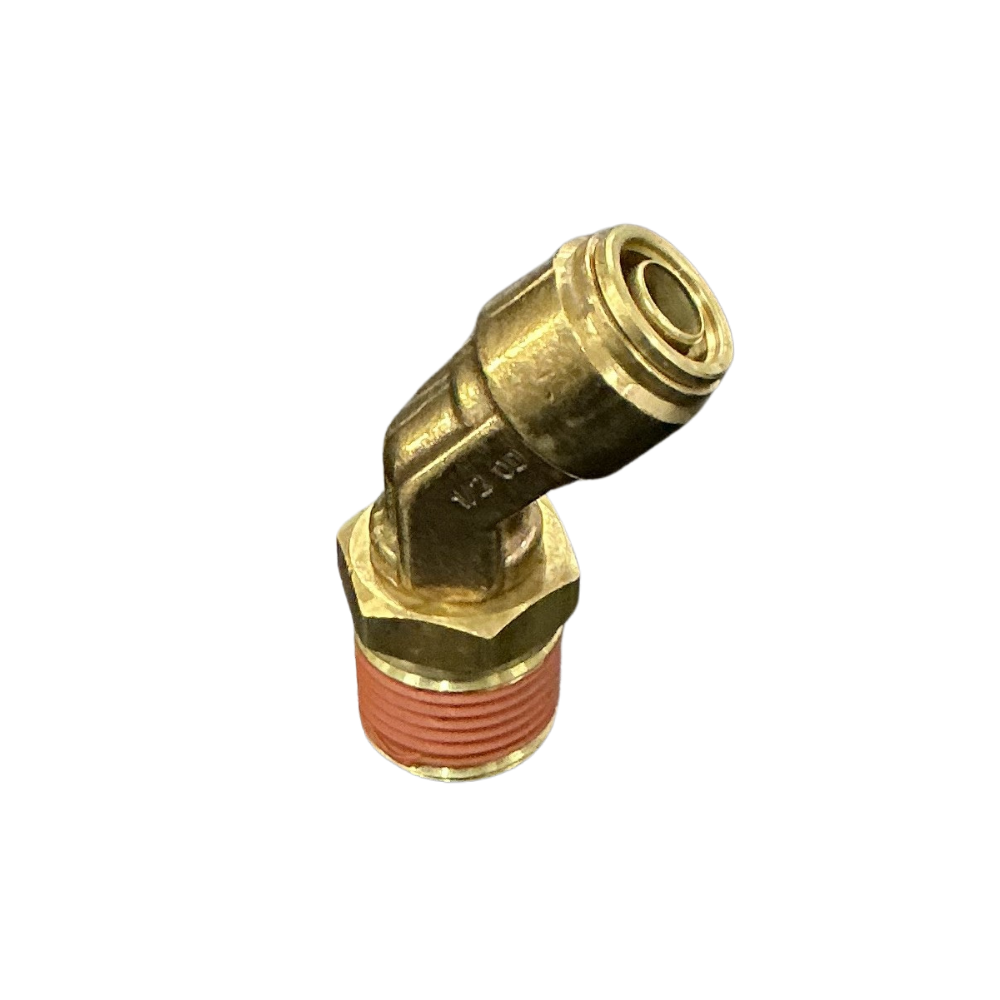

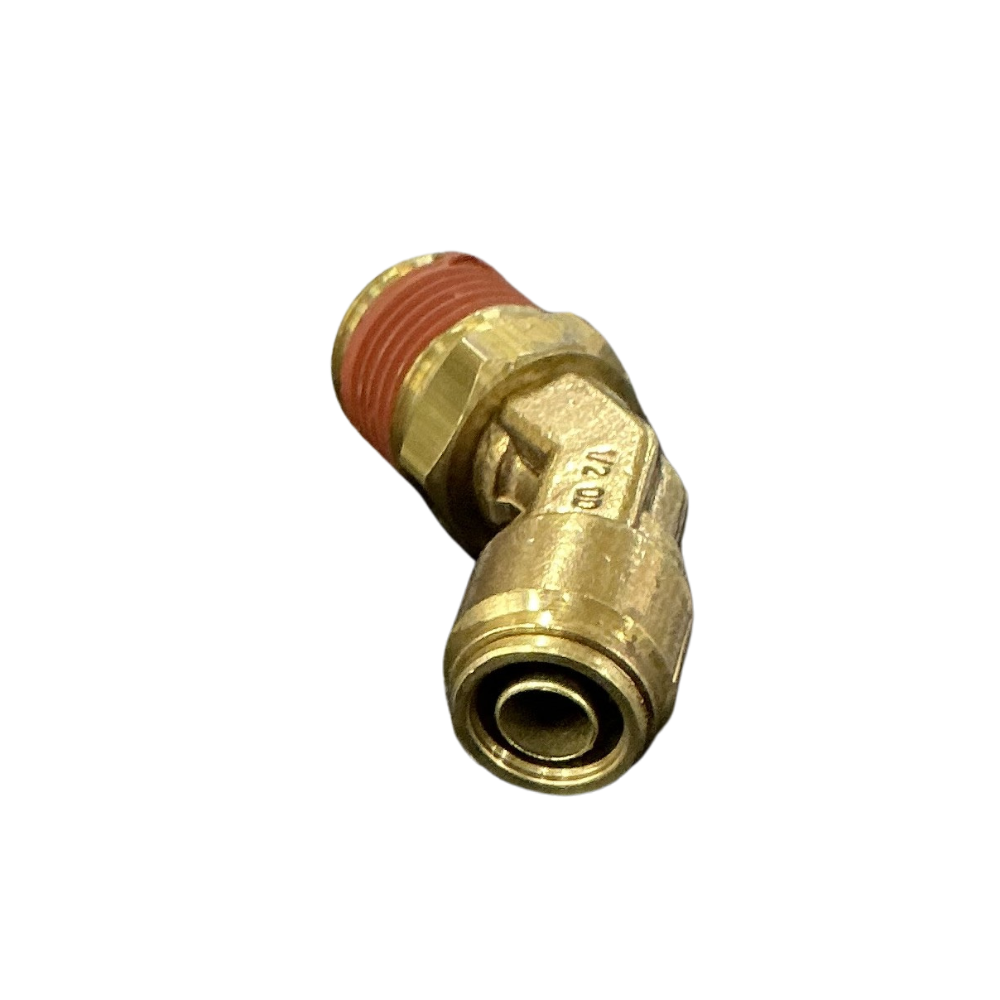

The 1/2 NPT push-in elbow connects 1/2-inch outside-diameter nylon air brake tube to a matching 1/2 NPT male port and turns the line through 45 degrees. Its swivel base allows the outlet to be positioned during installation, helping the larger tube clear valves, brackets and chassis hardware.

Features

• DOT push-to-connect fitting for 1/2-inch OD nylon tube
• 1/2-14 NPTF male tapered pipe thread
• 45-degree swivel male elbow configuration
• Reusable tube connection released by depressing the collet

Specifications and Materials

Product type: DOT push-to-connect air brake fitting. Tube connection: 1/2-inch OD. Thread connection: 1/2-14 NPTF male. Configuration: 45-degree swivel male elbow. The fitting uses a brass body and collet-style push-in tube connection.

Part number: DQ54DOTS0808.

Review the manufacturer fitting specifications

Compatibility and Fitment

Measure the air tube across its outside diameter before ordering, then confirm the receiving port uses 1/2 NPT rather than BSP or a metric thread. Although both ends are described as 1/2 inch, tube OD and nominal pipe thread are different measurements. Allow enough straight clearance to push the tube fully through the collet.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-S540808, 35S540808, AQ54-DOTS-8X8, AQ54DOTS8X8, 1880X8X8S

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the air system before removing or installing the fitting. Cut the nylon tube square, remove scored or distorted material and insert the tube fully. Use the swivel only to set the installation position. Then pressure-test both connections and inspect the tube route for heat, abrasion and movement.

Trailer Applications

The 1/2 NPT push-in elbow suits compatible trailer air brake, air suspension and auxiliary pneumatic circuits where a larger nylon line enters a valve, manifold, reservoir or control port. Its 45-degree outlet can provide better clearance than either a straight connector or a full 90-degree elbow.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

This fitting sits among several close 1/2-inch tube variants with different male thread sizes. Send clear photos of the old fitting, tube markings and receiving port if the thread is difficult to identify.

Browse more Air Fittings
