Description

Overview

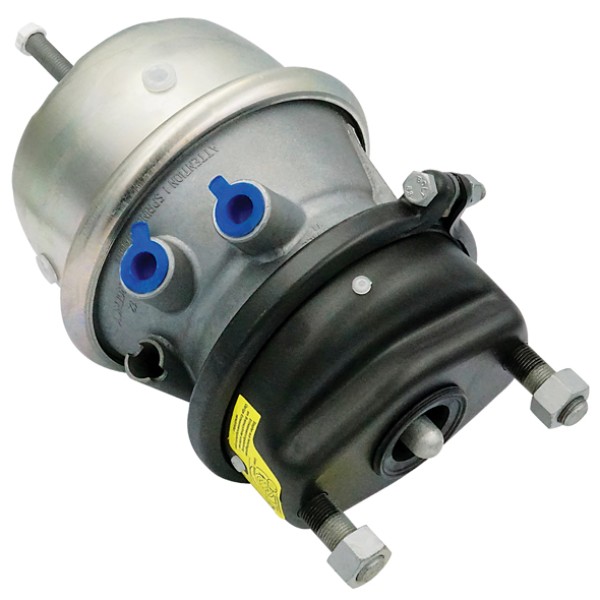

Disc Spring Brake Chamber 15/24 BPW R/H replaces the right-hand spring chamber on BPW trailer disc brake applications. It handles both service braking and spring brake holding function, so chamber size, port thread and hand orientation need to match the trailer setup before ordering.

Features

• 15/24 disc spring brake chamber for BPW trailer disc brake applications.
• M16 x 1.5 ports suit the matching air brake connection.
• Right-hand configuration for the listed BPW fitment.
• Includes fixing nuts for installation.

Specifications and Materials

Part number: AB1145.

This chamber uses a 15/24 diaphragm-diaphragm spring brake cylinder layout with M16 x 1.5 ports. The matching BPW technical data lists a 57mm maximum service stroke for this version.

Fixing nuts come with the brake booster, while replacement locking nuts can be matched separately when needed.

The BPW brake cylinder technical guide gives the brake cylinder dimensions and application data

Compatibility and Fitment

Match the chamber size, M16 x 1.5 port thread and right-hand position before ordering. Also check whether the trailer uses overslung or underslung suspension, because BPW hand orientation changes by suspension layout.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 05.444.39.01.0, 0544439010

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Treat this chamber as a safety-critical air brake component. Before removal, drain air pressure and follow the correct spring brake caging procedure. Do not split the spring chamber body; replace the complete chamber if the sealed assembly has failed.

Trailer Applications

The Disc Spring Brake Chamber 15/24 BPW R/H suits BPW disc brake trailer axles that need a 15/24 combination chamber with M16 x 1.5 ports. Workshops replace this part when the original chamber body, ports, studs or spring brake function no longer pass service checks.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Use this listing when you need the Disc Spring Brake Chamber 15/24 BPW R/H matched by size, port thread and BPW hand orientation before the trailer returns to service. Shop more trailer braking components in our Air Brake Parts
