Description

Overview

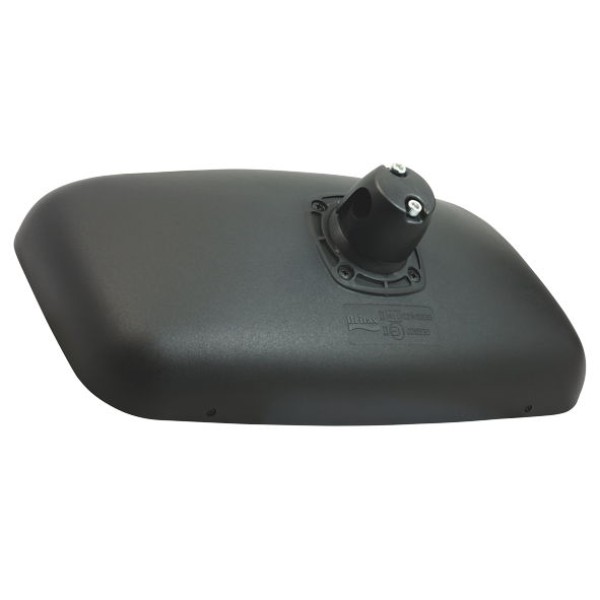

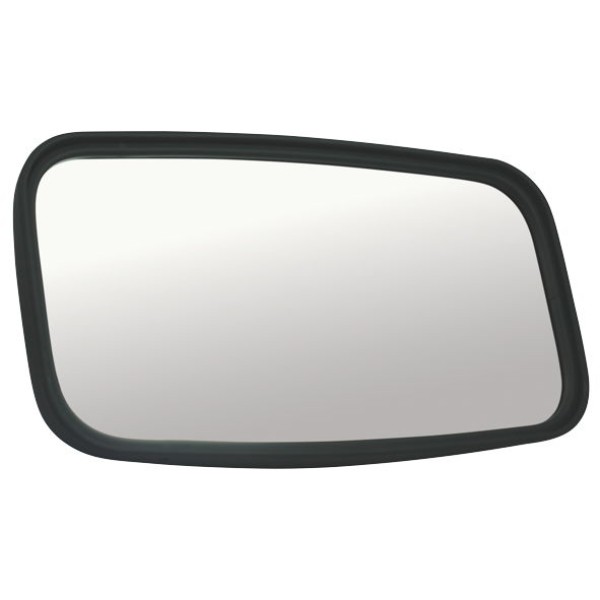

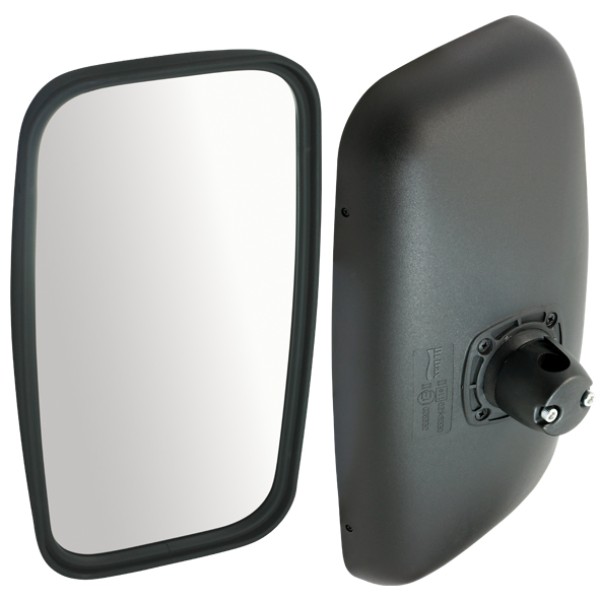

Britax 415mm Flat Glass Mirror Head is a replacement mirror head that helps restore a clear, flat rear view on heavy vehicles. Because the mirror head uses flat glass, it supports accurate distance judgement when you reverse or change lanes. It also suits clamp-mounted mirror arms, so you can replace the head without changing the entire arm assembly.

Features

• Flat glass for an undistorted rear view
• Moulded mirror head housing
• Clamp suit range for common heavy vehicle mirror arms
• E approved and ADR 14-00 compliant approvals listed

Specifications and Materials

This Britax 415mm Flat Glass Mirror Head uses flat glass in a moulded mirror head housing.
Part number: CA5136.
It suits clamp arms in the 14-20mm range, so check your arm tube size before ordering.
Overall mirror head dimensions are 415mm high, 225mm wide, and 175mm deep, which helps you confirm physical clearance on the door and A-pillar area.
For official rear vision mirror requirements, refer to the Australian Government ADR 14 Rear Vision Mirrors instrument which outlines performance and installation expectations

Compatibility and Fitment

Use this mirror head where you need a 415mm flat glass head and a clamp suit range that matches your mirror arm. If your vehicle uses a separate clamp and backing plate, confirm the clamp size first, then align the head so it sits square to the driver’s normal seating position. When you fit the mirror, tighten fasteners evenly because uneven clamp pressure can crack glass or distort the housing.

Compliance and Safety

This mirror head is listed as E approved and ADR 14-00 compliant, so it suits regulated on-road fleets when installed correctly. Even so, drivers should still set mirrors as part of their pre-start checks because road grime and vibration can reduce visibility over time.

• Inspect the mirror face for chips and cracks before each trip
• Replace damaged heads promptly to reduce blind spots
• Use suitable fasteners and tighten to the mirror arm maker’s guidance
• Re-check adjustment after the first shift, especially after corrugated roads

Trailer Applications

Although trailers do not carry mirrors, this mirror head commonly fits the tow vehicle that works with B-doubles, semis, and rigid trucks. As a result, it helps drivers keep sight lines to trailer sides during tight yard manoeuvres and loading dock approaches. If you run multiple trucks, keeping a matching Britax 415mm Flat Glass Mirror Head in spares can also reduce downtime after minor impacts.

Why Choose ICS Trailers

ICS Trailers supplies heavy vehicle parts and consumables, so you can keep your fleet moving with less interruption. If you are unsure about clamp size or mirror configuration, provide your arm diameter and a photo of the mount and we can help you confirm suitability before you buy.
