Description

Overview

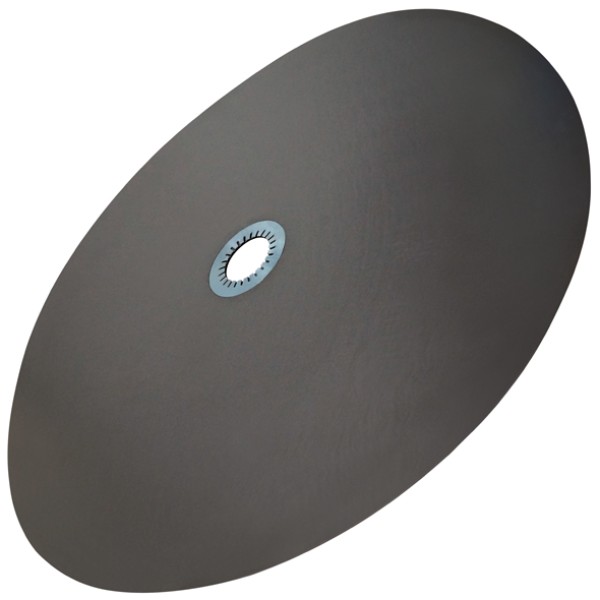

The turntable lubeliner skid plate pad 910mm provides a clean, low-friction surface between the trailer skid plate and the fifth wheel top plate, reducing turntable wear without messy grease. It also uses a spring clip around the kingpin, so the pad stays located during coupling and uncoupling.

Features

These design points support faster servicing and cleaner operation:

• High density polyethylene wear surface that resists scuffing
• Spring clip helps locate the pad around the kingpin
• Quick to fit during routine coupling maintenance
• Helps minimise grease build-up on the turntable area

Specifications and Materials

This turntable lubeliner skid plate pad 910mm uses high density polyethylene for a consistent sliding surface. The pad includes a spring clip and is designed to sit flat on the skid plate. Outside diameter is 910mm, recess diameter is 135mm, inside diameter is 75mm, and thickness is 4.5mm.
Part number: TT9601.
For guidance on add-on lube plates and coupling checks, read the SAF-HOLLAND service bulletin on add-on lube plates before installation

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 20.7105.0, 2071050, WT9601, IT7398
Confirm the skid plate recess style and the centre hole size before fitting. Then seat the pad evenly so the turntable contact area stays consistent under load.

Compliance and Safety

Some fifth wheels and trailer bolster plates are not designed to run with an add-on lube plate, so always follow the fifth wheel and trailer manufacturer instructions. Also check coupling engagement after fitting because any change at the interface can affect lock jaw contact. Inspect the pad regularly and replace it if you see cracking, distortion, or uneven wear.

Trailer Applications

For example, fleets often use this style of pad on road trailers that couple via a fifth wheel and skid plate assembly. The turntable lubeliner skid plate pad 910mm also suits setups that use a clip-retained pad around the kingpin to reduce grease maintenance. If your coupling uses a different recess or kingpin arrangement, select the correct pad style first.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

If you are unsure about interchange, match the diameters and clip style before ordering.
