Description

Overview

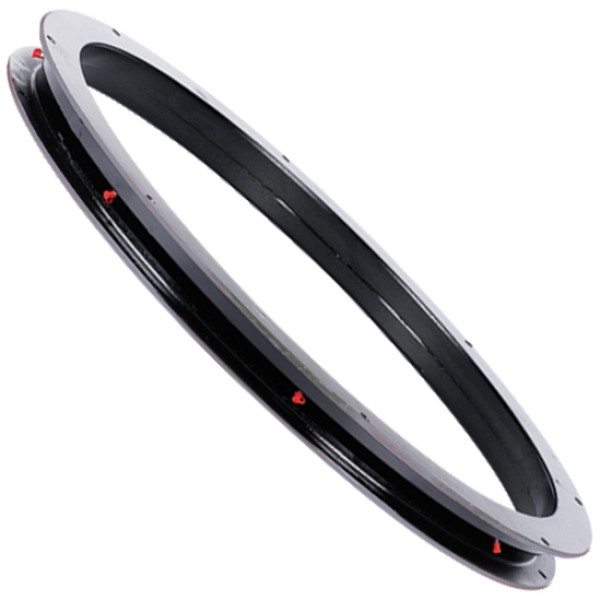

SAF Holland Low Profile Ballrace 1000mm is a low-profile, single-row ballrace for turntable and ballrace-base assemblies on commercial trailers. The undrilled flange format allows the installer to drill the required mounting pattern to suit the build. Overall height is 60mm, which suits applications where deck height and articulation clearance are tight.

Features

Designed for controlled rotation under drawbar and articulation loads, with sealing to help retain lubricant and reduce contaminant ingress. Multiple grease nipples support routine servicing access.

• Full raceway design with load-sharing bearing balls
• Labyrinth upper seal with rubber insert bottom seal
• 14mm thick top and bottom flanges for added rigidity
• Six grease nipples per row of bearing balls

Specifications and Materials

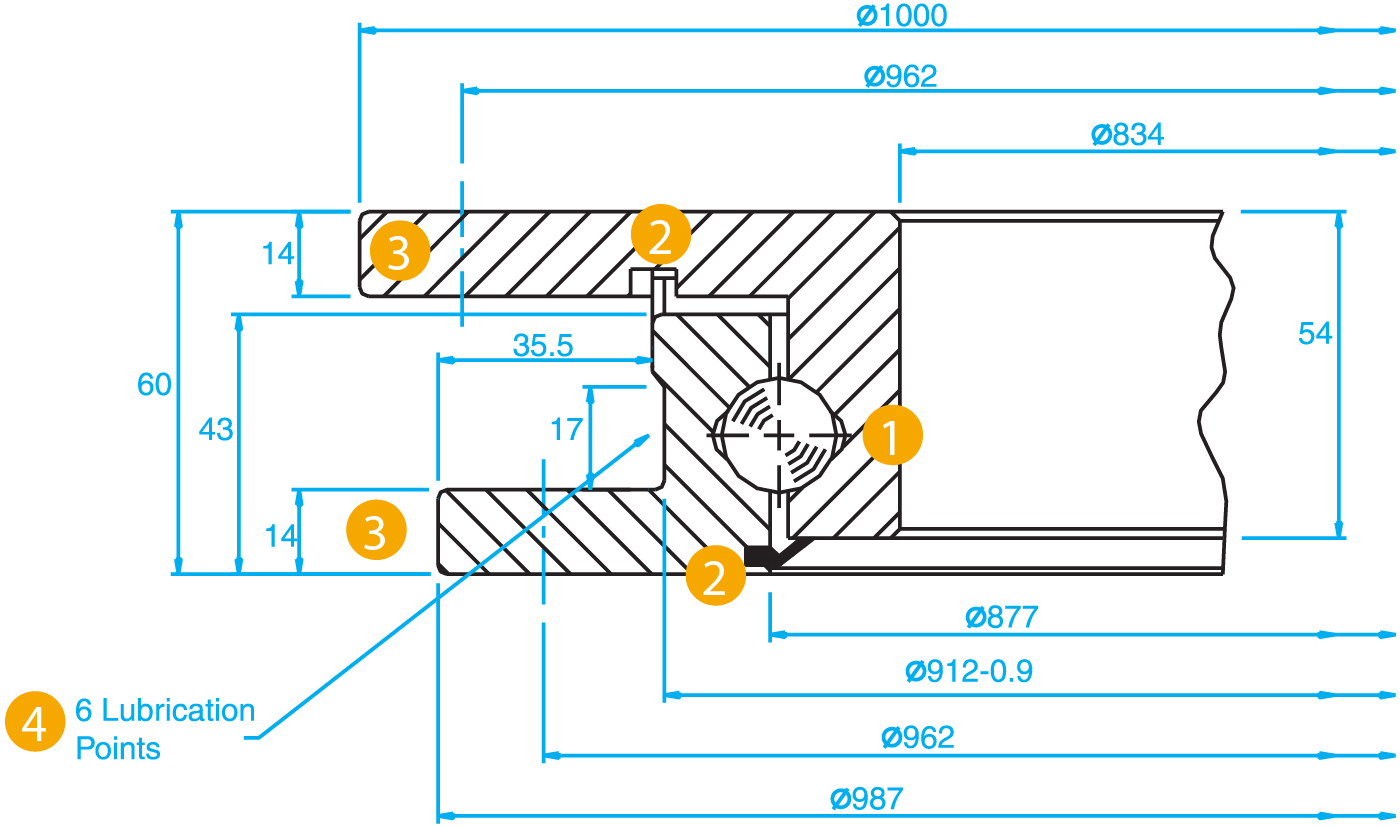

SAF Holland Low Profile Ballrace 1000mm is rated to 190kN D-value in a 1000mm outside diameter and 60mm overall height package.

Part number: TT0539.
The Holland catalogue for ballrace dimensions and D-ratings outlines sizing, weights, and rating references for selection.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. SR601000, SR 60/1000, SR60/1000, SR601000C

Because this unit is supplied undrilled, the installer must drill the mounting pattern and confirm fastener grade, bolt circle, and locking method to suit the trailer design. Check mating plate flatness and ensure the drilled pattern provides adequate edge distance and clamp load.

Compliance and Safety

Match the ballrace rating to the application and any engineering requirements for the build. Grease the ballrace before commissioning and maintain lubrication at the service intervals specified for the equipment. Do not weld on the rings or seals because heat can damage raceways and sealing surfaces.

Trailer Applications

Common applications include low-height turntable builds such as converter dollies, drawbar trailer turntables, and other pivoting trailer connections that require a 1000mm outside diameter and a 60mm profile. The undrilled mounting face suits builds where the bolt pattern is set during fabrication.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Confirm the required drilled pattern, mating plate dimensions, and fastening method before ordering.
