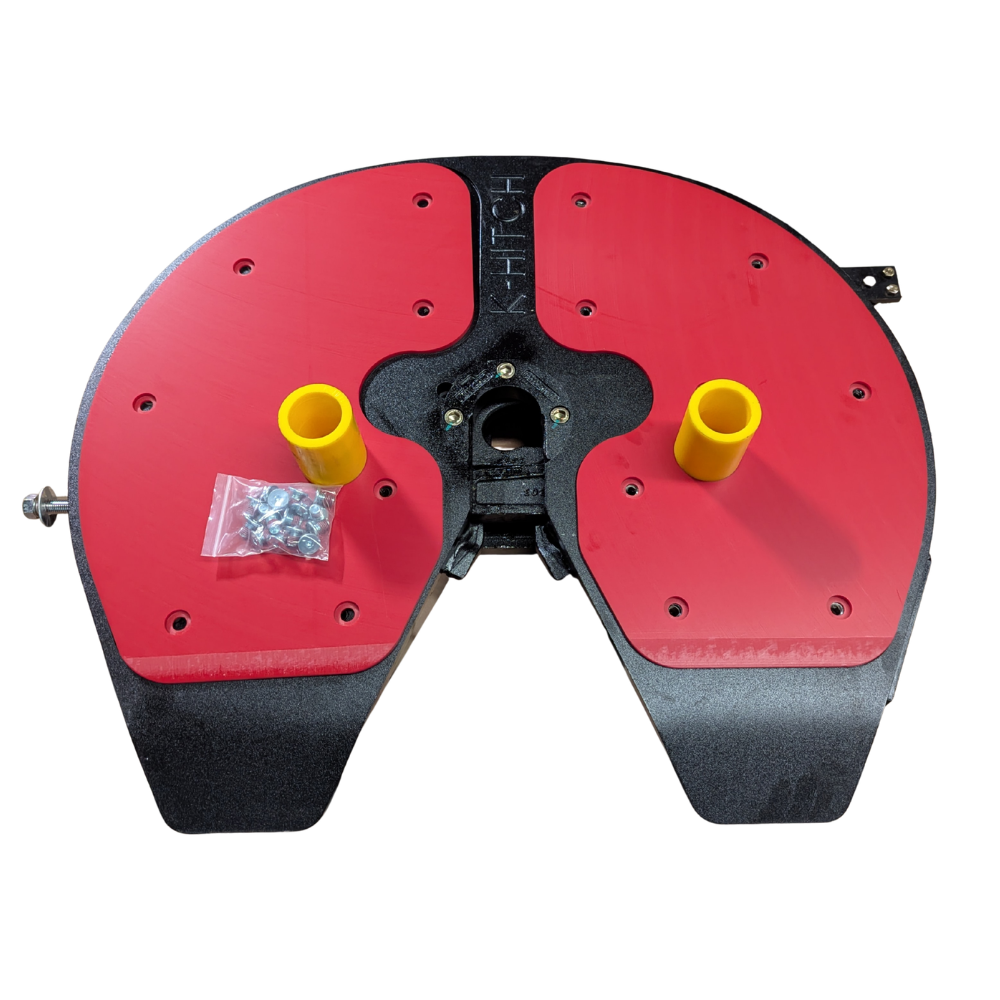

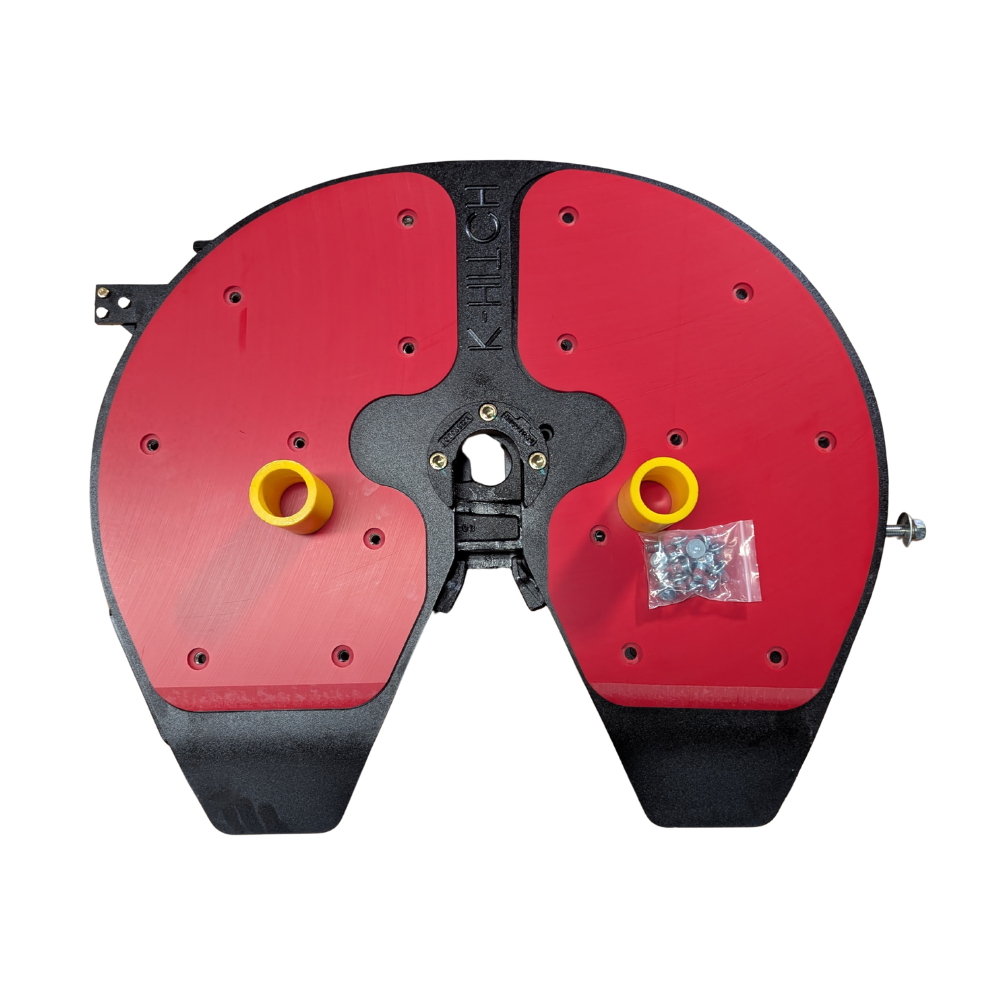

K-Hitch Fleet Master 50mm Greaseless Fifth Wheel Top
K-Hitch Fleet Master 50mm Greaseless Fifth Wheel Top
$2,178.00
Fuwa K-Hitch Fleet Master 50mm greaseless fifth wheel top with fabricated steel construction, adjustable single-piece jaw, 195kN D-rating and supplied low-friction wear inserts. Standard 915mm width for heavy-duty B-double and road train applications. Top-only configuration for replacement of the existing coupling.
Part number KA12C502131.
Description
Overview
The Fuwa K-Hitch greaseless fifth wheel top is a fabricated steel Fleet Master coupling designed for heavy-duty B-double and road train applications. It features a 50mm adjustable single-piece jaw and supplied greaseless wear inserts, providing a low-friction contact surface for the trailer skid plate.
With a 195kN D-rating, this standard-width model suits demanding on-road and off-road transport operations. The top-only configuration allows replacement of the fifth wheel coupling without purchasing a complete mounting assembly.
Features
- Adjustable single-piece jaw accommodates normal king pin wear.
- Greaseless wear inserts reduce lubrication requirements across the top plate.
- Fabricated steel construction with a standard 915mm top width.
- Short operating handle and serviceable locking components.
Specifications and Materials

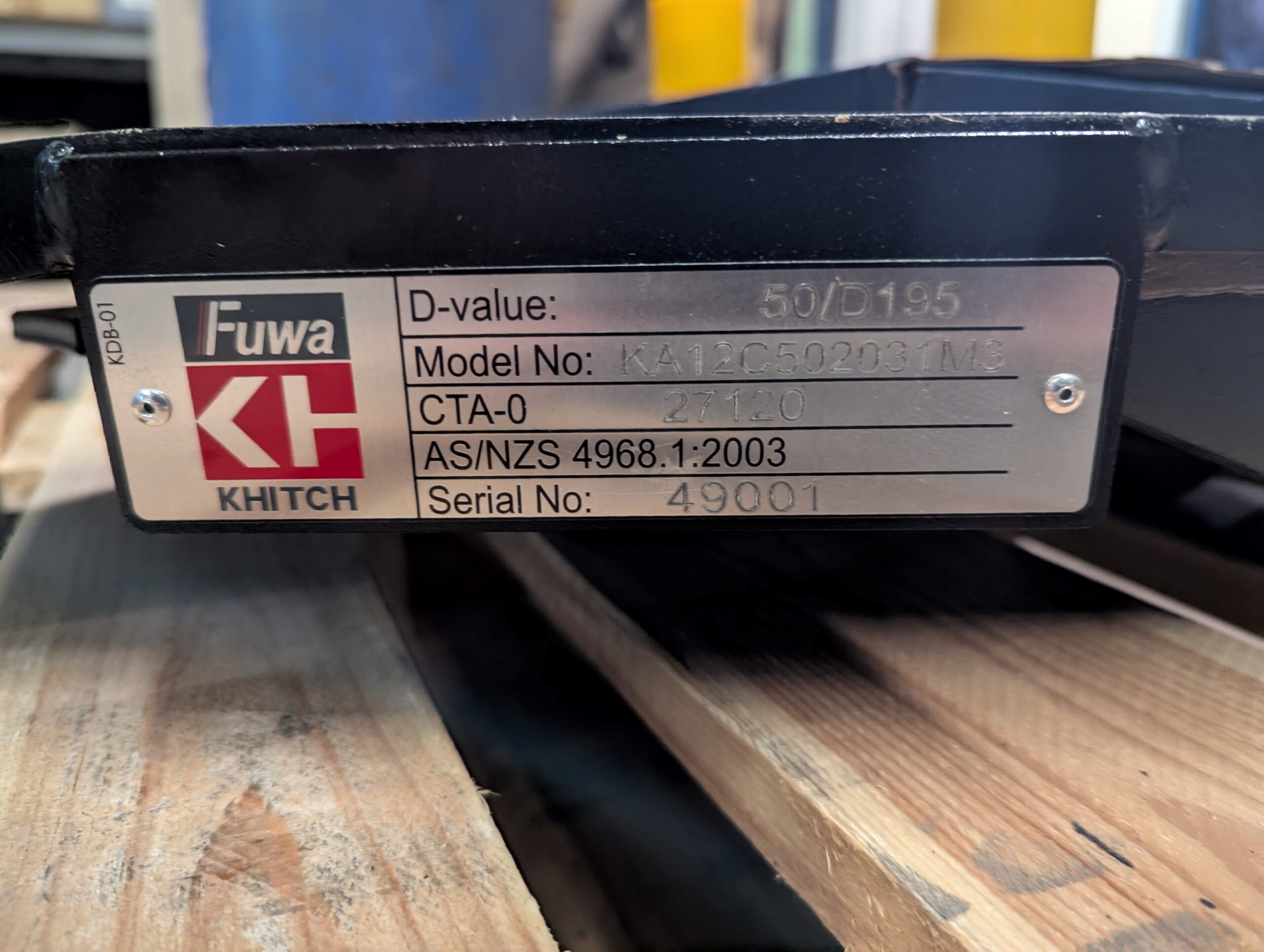

Part number: KA12C502131.
- Series: Fleet Master KA12C50
- King pin size: 50mm
- D-rating: 195kN
- Rated vertical capacity: 25,000kg with an appropriate mounting configuration

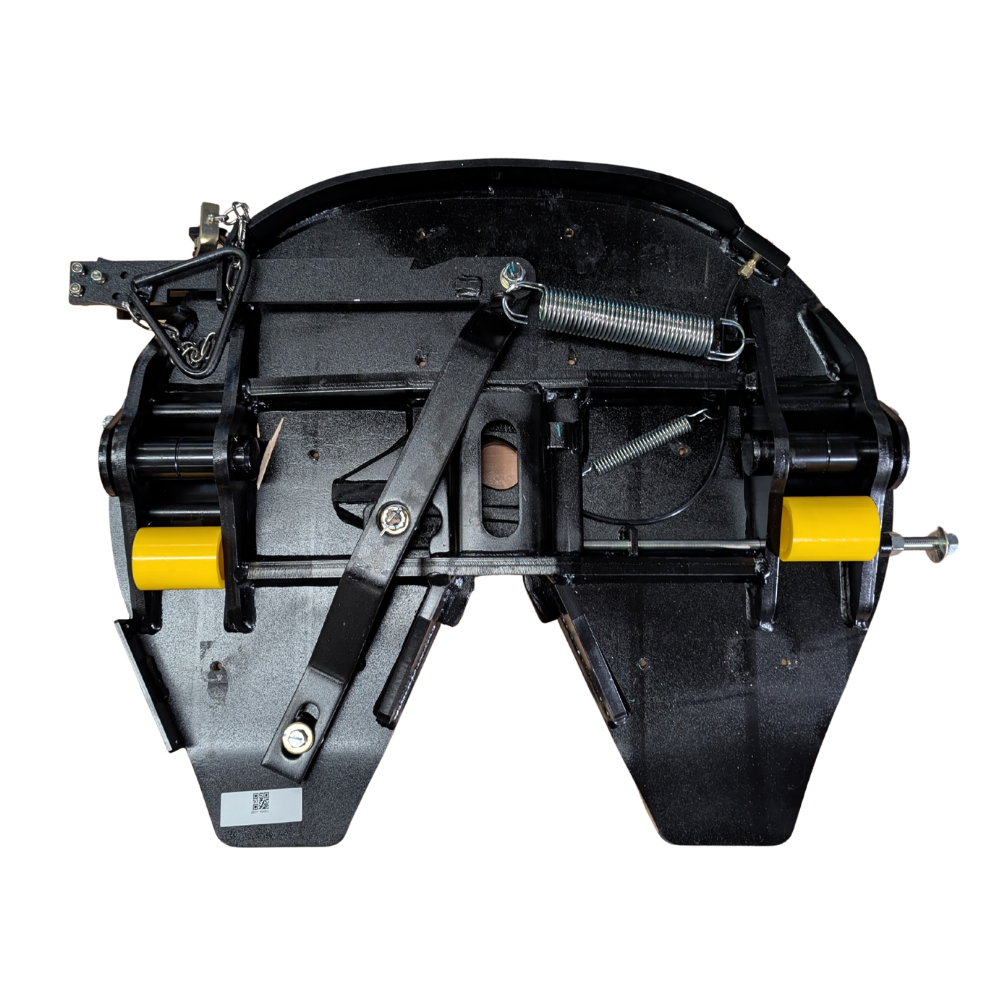

The fabricated fifth wheel top includes greaseless wear inserts and an adjustable locking jaw mechanism. Its low-friction pads eliminate the need to grease the upper bearing surface, although the jaw and operating mechanism still require lubrication.
For technical dimensions and rating details, refer to the Fuwa K-Hitch Fleet Master specifications
Compatibility and Fitment
When replacing a greaseless fifth wheel top, confirm the existing coupling series, 50mm king pin size and mounting arrangement. In particular, check the pivot feet, bushes and mounting height because the top-only assembly must match the existing support configuration.
The Fleet Master range includes standard and extra-wide variants, so compare the existing top width before ordering.
Related Parts
Check the related service parts below against the existing Fleet Master coupling before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement inserts | GIKIT | Greaseless insert and fixing kit |
| Jaw replacement | KH780017 | 50mm adjustable jaw |
| Jaw pivot | KH780006 | Jaw pivot pin |
| Mounting pivot | KH007 | Fifth wheel foot pin |
| Foot pivot | KH005HD | Fifth wheel mounting bush |
Compliance and Safety
Follow the manufacturer’s mounting and jaw adjustment procedures before returning the coupling to service. Check the locking wedge, pivot security and jaw engagement, particularly after replacing the top assembly.
During coupling, avoid using the greaseless fifth wheel to lift the trailer because this can damage the wear inserts. Keep the locking mechanism correctly lubricated and inspect the pads for damage.
Trailer Applications
Fleet Master fifth wheels suit heavy transport combinations including road trains, B-doubles, stock crates, tankers and tippers. The fabricated construction and adjustable jaw support applications involving frequent coupling, varied road conditions and heavy trailer loads.
Why Choose ICS Trailers
Replacing a Fleet Master fifth wheel top requires the correct mounting arrangement as well as the appropriate coupling rating. ICS Trailers can help compare your existing top plate, pivot configuration and operating mechanism before purchase.
- Discuss matching jaw, insert and pivot components when planning a coupling overhaul.
- Send through the existing fifth wheel markings and mounting measurements if you need help identifying the correct 50mm Fleet Master configuration.
