JSK37 Fifth Wheel Locking Bar

Allan Davis on 13/08/2026

JSK37 fifth wheel locking bar

JSK37 Fifth Wheel Locking Bar

$70.00

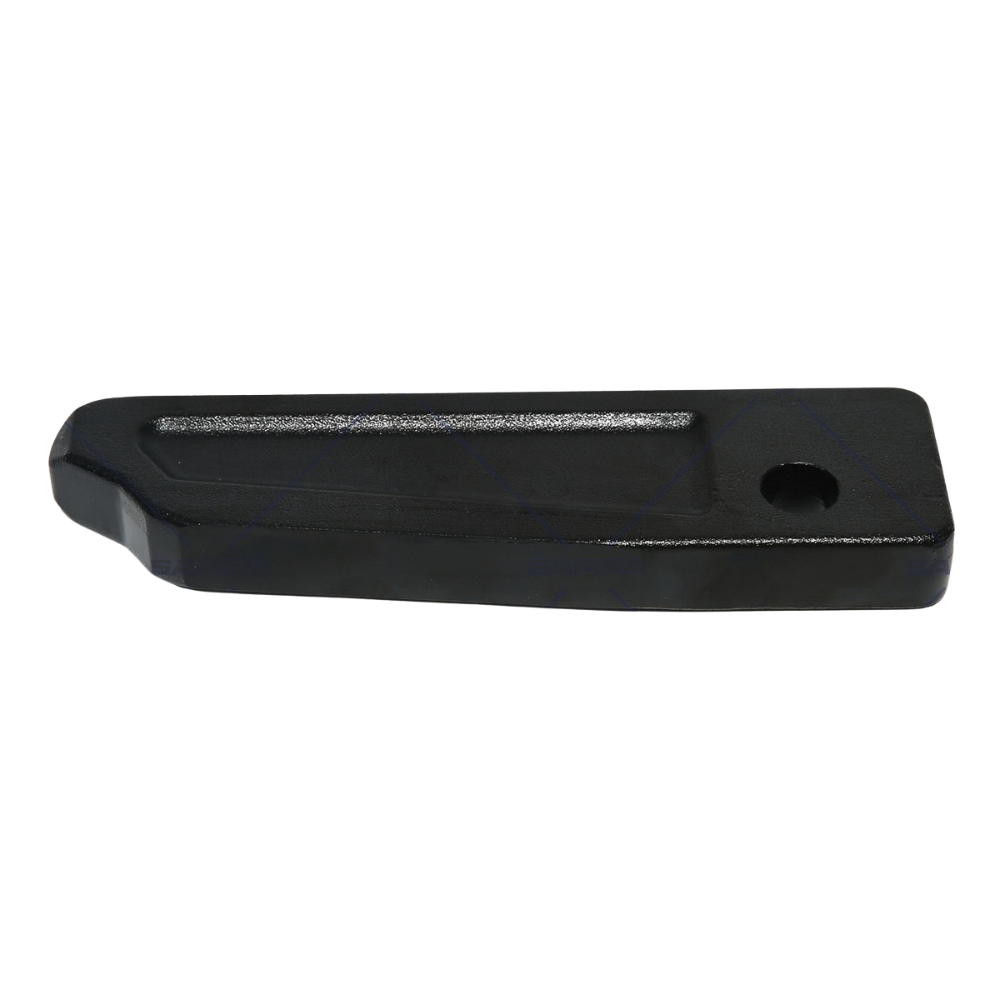

JSK37 fifth wheel locking bar for compatible JOST coupling lock mechanisms, with a 20mm mounting hole and 234.5 × 64.5 × 25mm body, used as the locking bolt within matching JSK37 fifth wheel assemblies.

Part number 118.023.

Quick Quote

SKU: 118.023 Category: Tags: , , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The JSK37 fifth wheel locking bar is the locking bolt used inside compatible JOST JSK37 coupling mechanisms to secure the lock during trailer coupling. Its 20mm mounting hole and 234.5 × 64.5 × 25mm body make the physical dimensions important when matching an existing component.

Features

  • 20mm mounting hole
  • 234.5mm overall length
  • 64.5mm width and 25mm thickness
  • Single locking component for compatible JSK37 mechanisms

Specifications and Materials

The bar is supplied as one locking component for the fifth wheel mechanism.

Part number: 118.023.

See the official JOST JSK37 E/EW spare parts information

Compatibility and Fitment

Use on compatible JSK37 fifth wheels that use this standard locking-bolt arrangement. Check the coupling model, serial number, existing bar dimensions and handle version before fitting. Long-handle type J versions use a different locking component, so JSK37 family identification alone is not enough.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes.

SK3205-06, SK320506

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Lock mechanism SK 3205-07 Guide
Lock mechanism SK 3105-20 Double tension spring
Lock mechanism SK 3221-52 Z Lock jaw



Compliance and Safety

Inspect the mating lock jaw, guide, springs and bar contact surfaces for wear or damage before reassembly. After installation, confirm the fifth wheel closes fully around the king pin and that the locking mechanism operates freely through its complete travel.

Trailer Applications

The JSK37 fifth wheel locking bar is used in heavy-vehicle fifth wheel coupling service where the existing JOST lock mechanism uses the matching bar dimensions and standard locking arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

SK3205-06 SK320506



Why Choose ICS Trailers

The critical check is the locking arrangement, not just the JSK37 name. Different JSK37 versions and handle configurations can use different locking components. ICS Trailers can compare the old bar, 20mm hole, overall dimensions, coupling model and serial number before ordering, and can also help identify the surrounding guide, spring and lock-jaw parts when the fifth wheel needs a broader lock repair.
