Description

Overview

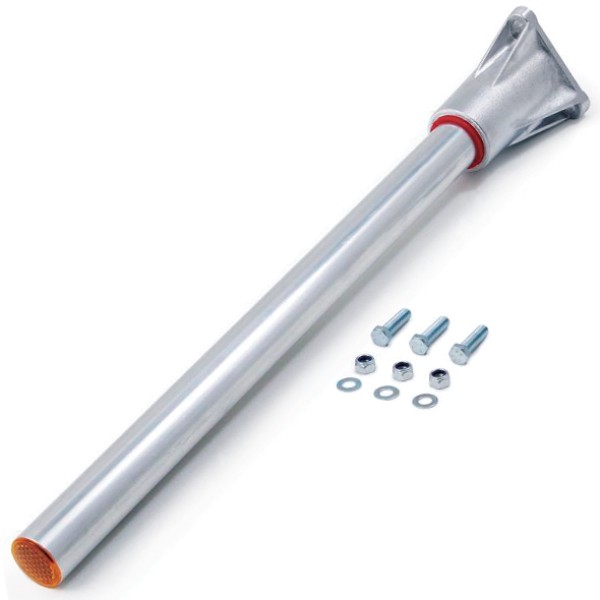

Truckmate Chassis Mounting Bracket Straight is a practical way to support mudguard and spray suppression mounting on heavy vehicle trailers. It mounts directly to the chassis, so you get a stable stand off point for guard brackets and related hardware. Because the tube section runs straight, it suits standard straight-line guard setups and helps keep alignment simple during fitment.

Features

• Straight tube chassis mounting bracket for mudguard mounting setups
• Triangular flanged base with 3 hole mounting for solid chassis fixing
• Includes an amber reflective end cap and a hardware kit for installation
• Vibration-dampening bonded construction to help reduce guard shake

Specifications and Materials

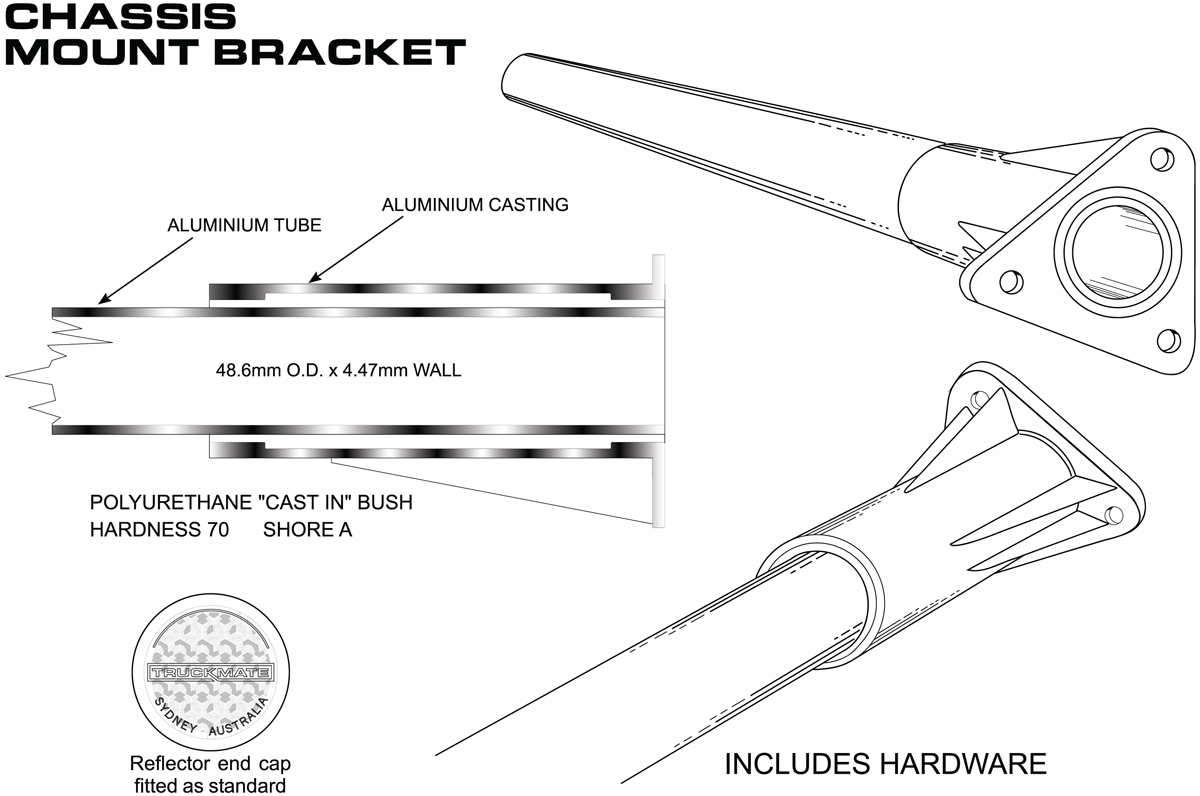

This bracket uses an aluminium tube bonded to a cast aluminium base with a vibration-dampening polyurethane section between the components. The tube is 760mm long, and it uses a 48.6mm outside diameter tube with a 4.47mm wall thickness, which is commonly referenced as a 50mm chassis bracket tube size for matching accessories. It also comes fitted with a reflective end cap and includes mounting hardware so you can install it without chasing extra fasteners.

Part number: CA5575.

See the manufacturer straight chassis bracket specification for sizing and construction details

Compatibility and Fitment

Use Truckmate Chassis Mounting Bracket Straight when you need a straight chassis stand off point for mudguards, anti-spray components, or mudguard mounting brackets that connect to a chassis tube. If you are replacing an existing bracket, check the tube length and the chassis mounting hole pattern before drilling so the mudguard position stays centred over the wheels. Also confirm your guard mounting bracket or hanger suits the bracket tube outside diameter so the clamp or strap seats properly.

Compliance and Safety

Mounting hardware needs to stay tight in service, so use suitable fasteners and re-check them after the first run, especially on rough-road work. Keep the reflector end cap facing outward and unobstructed so it can help side-on visibility when headlights hit it. If the bracket sits near air lines, wiring, or moving suspension parts, allow clearance so nothing rubs through over time.

Trailer Applications

Truckmate Chassis Mounting Bracket Straight suits common trailer mudguard installs on semi-trailers, skel trailers, and general transport trailers where a straight chassis tube bracket is used for guard mounting. It also works well where you want a consistent mount point across multiple axles, because the 760mm length helps position mounting points in a repeatable way across builds and repairs.
