Description

Overview

Thermo King X430 Compressor Kit Large Shaft is an overhaul kit for X430 large-shaft compressors with a 1-3/16 inch crankshaft. It gives you the main service parts needed for a rebuild, so it suits workshop jobs where the compressor needs a refresh without replacing the crankshaft or connecting rods.

Features

• Suits X430 large-shaft compressors with a 1-3/16 inch crankshaft
• Excludes the crankshaft and connecting rods
• Includes the main gasket, seal, piston, cylinder, valve plate, bearing and suction screen components for an overhaul
• Built for compressor rebuild work on compatible Thermo King applications

Specifications and Materials

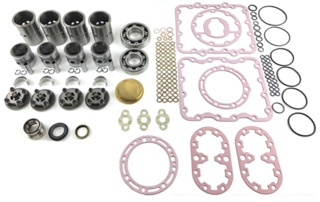

Thermo King X430 Compressor Kit Large Shaft suits X430 large-shaft compressor rebuilds. The kit includes one gasket set, one shaft seal, four cylinders, four pistons, four valve plates, four rod bearings, two main bearings and one suction screen. Because the crankshaft and connecting rods are not included, this kit suits rebuilds where those major parts remain serviceable. Part number: TK-X430-LS-AM. See the Thermo King X430 compressor brochure for compressor family information and design background

Compatibility and Fitment

Check that the compressor is an X430 large-shaft version with a 1-3/16 inch crankshaft before ordering, and then confirm the existing rebuild parts match the kit contents you need. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. X430-LS, X430LS, 10-X430LS, 10X430LS, 37-X430-LS, 37X430LS, TB-37-X430-LS, TB37X430LS, X430L, X 430 L, X-430 L, 30-0209, 300209, 300-209, 30-209, 30209, 30-0243, 300243, 300-243, 30-243, 30243, 22-1101, 221101, 221-101, 22-0656, 220656, 220-656, 22-656, 22656, 22-0850, 220850, 220-850, 22-850, 22850, 22-0990, 220990, 220-990, 22-990, 22990, 22-1246, 221246, 221-246, 22-1003, 221003, 221-003, 77-0169, 770169, 770-169, 77-169, 77169, 77-2306, 772306, 772-306, 22-0396F, 220396F, 22-306F, 22306F, 220306F

Compliance and Safety

Inspect the compressor carefully before you start the rebuild. If the crankshaft, rods or housing have already failed, use the correct large-shaft kit for that deeper repair instead. Then keep the internal parts clean during assembly because dirt and scoring can shorten compressor life fast.

Trailer Applications

Thermo King X430 Compressor Kit Large Shaft suits trailer refrigeration compressor rebuild work where the large-shaft X430 needs internal service parts rather than a complete replacement compressor. It also suits planned workshop overhauls when the original crankshaft and rods still remain in usable condition.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
