Overview

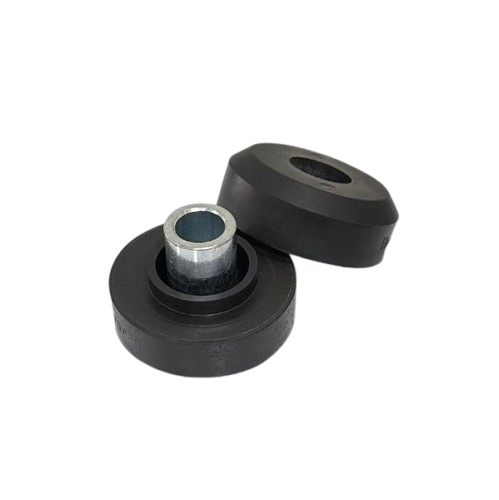

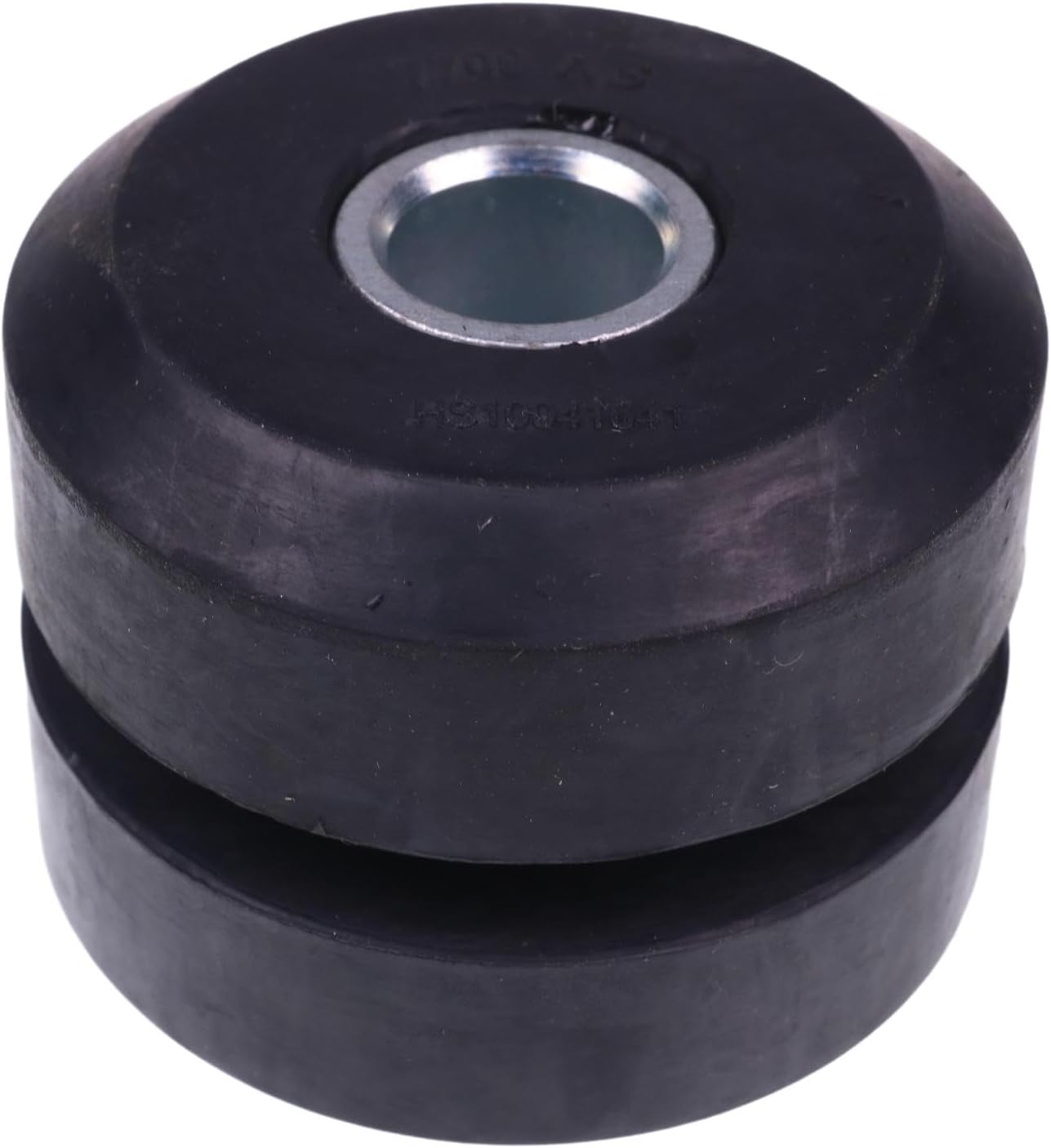

Thermo King Engine Vibration Mount SB Models supports engine mounting on compatible SB trailer refrigeration units. It helps isolate vibration at the engine mount point, so the engine and surrounding components cop less shock during normal operation. This aftermarket replacement suits Isuzu 2.2di and Yanmar 486 Tier 2 engine layouts used in supported SB applications. When an old mount collapses, hardens or splits, the engine can move more than it should and pass extra vibration into the frame.

Features

• Suits Isuzu 2.2di and Yanmar 486 Tier 2 engine layouts
• 65mm outside diameter, 37mm centre diameter and 16mm inner diameter
• 52mm overall height for direct size matching during service
• Helps control engine movement and vibration at the mount position

Specifications and Materials

Thermo King Engine Vibration Mount SB Models covers an engine mount isolator position used on supported SB refrigeration units. It uses a 65mm outside diameter, 37mm centre diameter, 16mm inner diameter and 52mm height, so buyers can compare the mount size directly against the old part before ordering. This version is the aftermarket replacement for that mount position.

Part number: TK-91-7709-AM.

See the official Thermo King engine mount reference

Compatibility and Fitment

Check the engine family, mount position and mount size before ordering, then compare the old part against the stated diameters and height. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 91-7709, 917709, 911404TKA

Compliance and Safety

Support the engine correctly before removing the old mount, and install the new mount on clean bracket faces with the correct hardware. After fitting, check engine clearance and make sure hoses, belts and nearby guards do not sit under load from a twisted or misaligned mount.

Trailer Applications

Thermo King Engine Vibration Mount SB Models suits SB engine mount service where Isuzu 2.2di or Yanmar 486 Tier 2 layouts use this mount size and style. It also suits repair work where worn mounts let more engine shake pass into brackets, guards and surrounding refrigeration components. Because engine vibration can affect more than one nearby part, replacing a failed mount early can help prevent further wear around the engine bay.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers works in transport refrigeration parts, so this mount sits alongside the engine service items used on Thermo King fleet repairs.
