Description

Overview

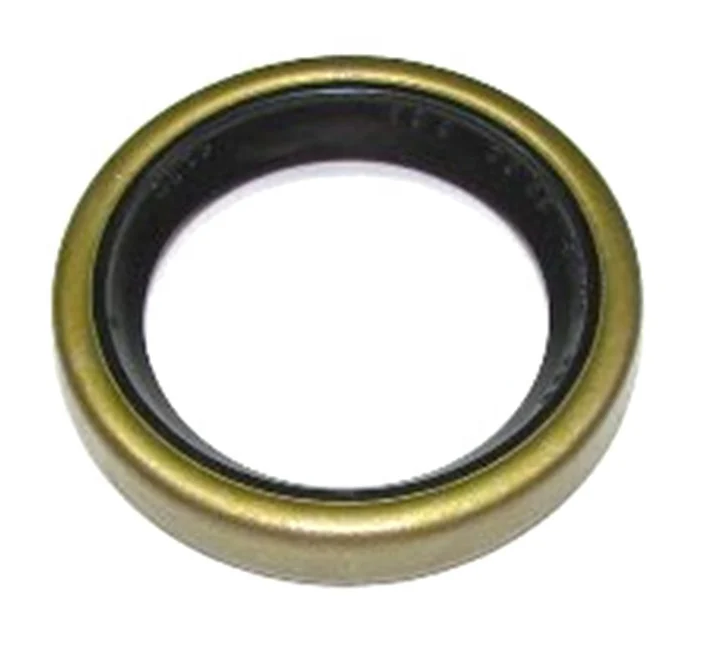

Thermo King Compressor Shaft Seal Large Shaft suits X426LS and X430LS compressor applications and seals the drive end of the compressor shaft. When that seal wears, oil can track around the shaft area and the front of the compressor can need teardown, so replacing it during front-end repair or overhaul work is a normal service step.

Features

• Large shaft seal for selected Thermo King X426LS and X430LS compressors
• Used at the compressor shaft during front-end repair and reseal work
• Helps restore sealing after shaft wear, leakage or strip-down service
• Selection stays focused on compressor model and large shaft application

Specifications and Materials

Thermo King Compressor Shaft Seal Large Shaft is a compressor shaft sealing part for selected large shaft X426LS and X430LS applications.

Match the compressor model before ordering, because Thermo King used more than one seal arrangement across its compressor range.

Part number: TK-33-5061-AM.

Official Thermo King compressor overview

Compatibility and Fitment

Check the compressor model and shaft application before ordering. This part suits X426LS and X430LS large shaft compressor service. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 33-5061, 335061, 33-3004, 333004, 1084A38G27

Compliance and Safety

Install the seal on a clean shaft and housing, then lubricate the sealing surfaces with the correct compressor oil during assembly. If the shaft shows grooves or scoring, address that first because a new seal may not hold for long on a damaged surface.

Trailer Applications

Thermo King Compressor Shaft Seal Large Shaft suits transport refrigeration compressor service when technicians strip X426LS or X430LS units for front-end sealing work, leak repair or overhaul. It matters most when oil staining or seal wear around the shaft points to a failed large shaft seal.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers carries Thermo King service parts used in real compressor repair work, so you can pick up this seal with the other items commonly changed during the same job.
