Description

Overview

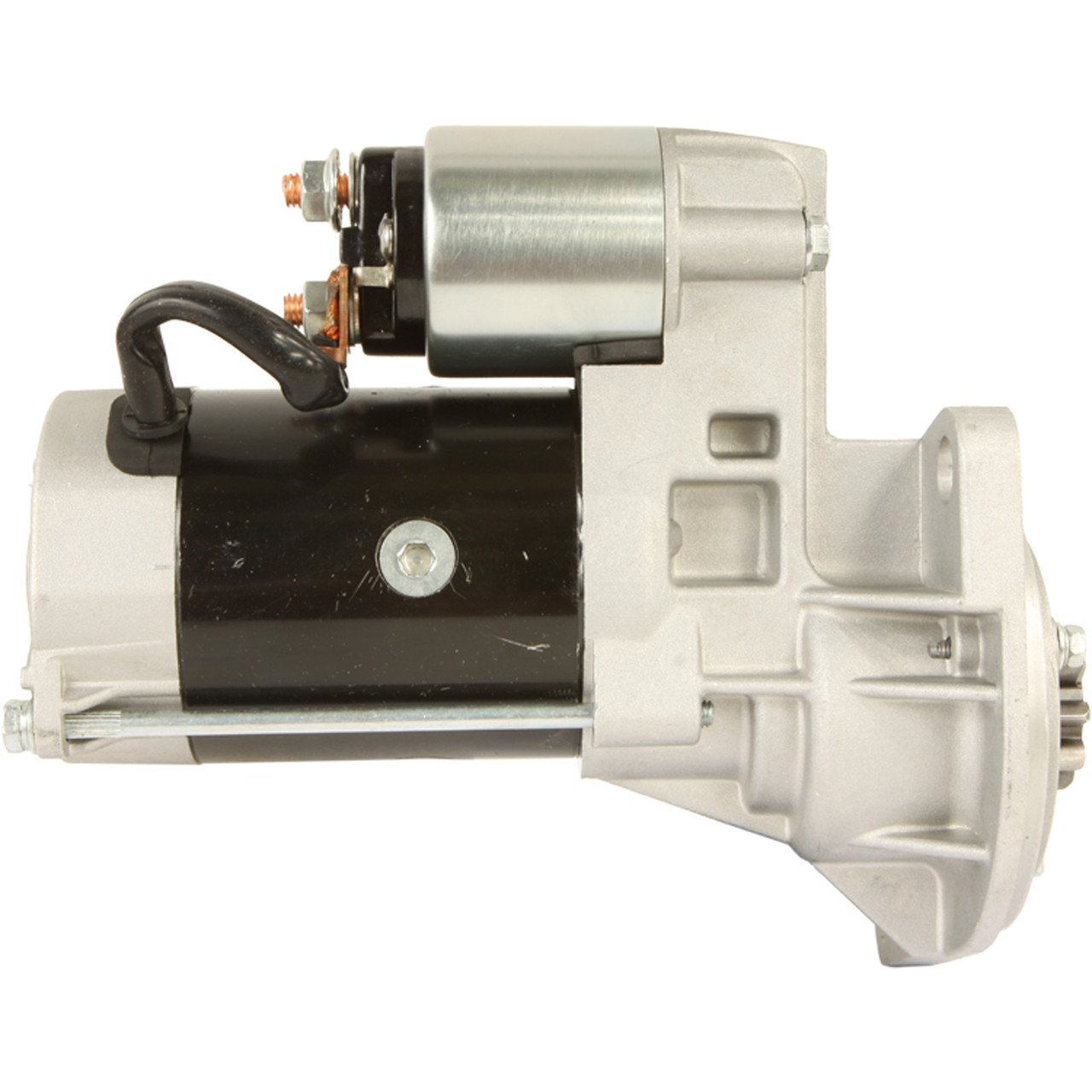

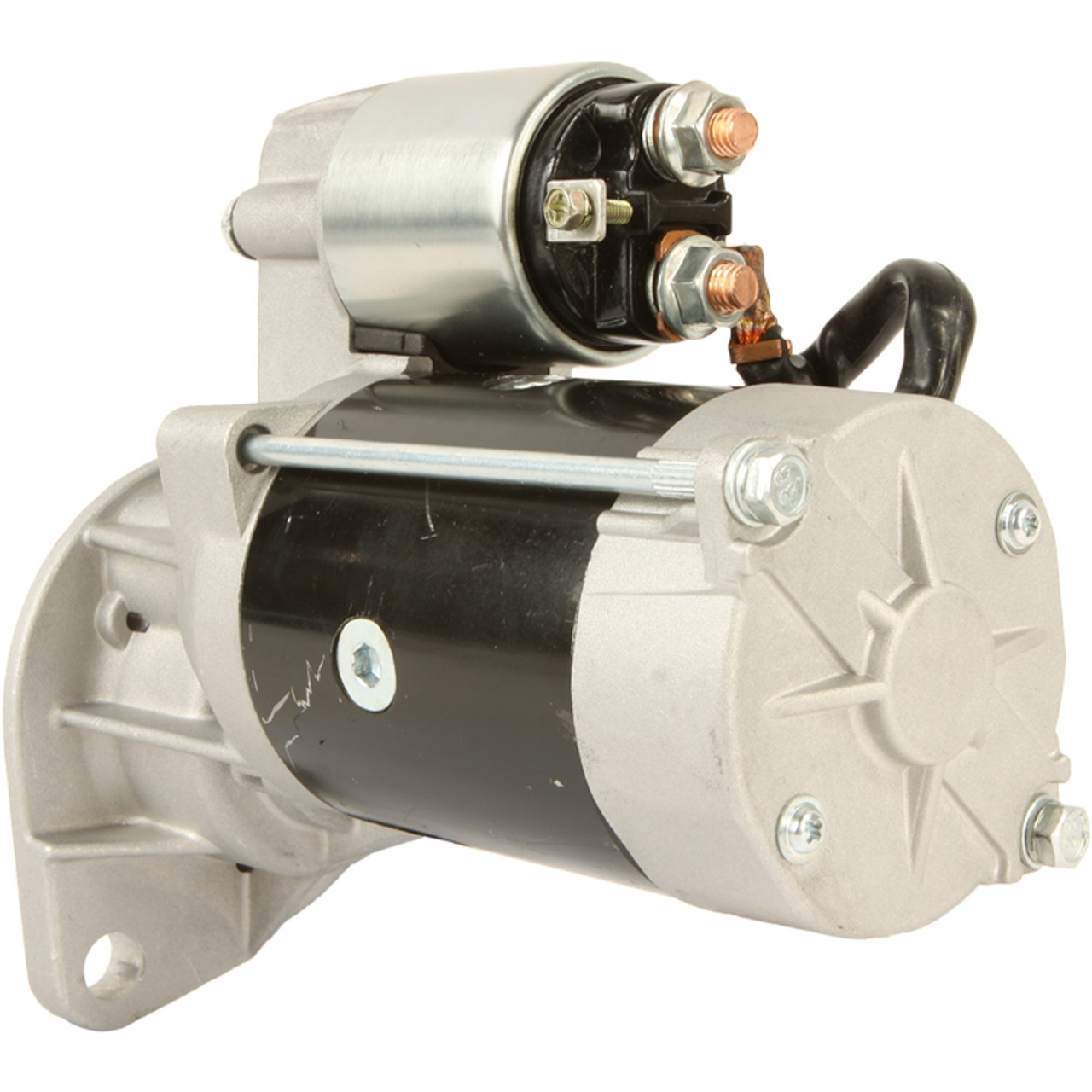

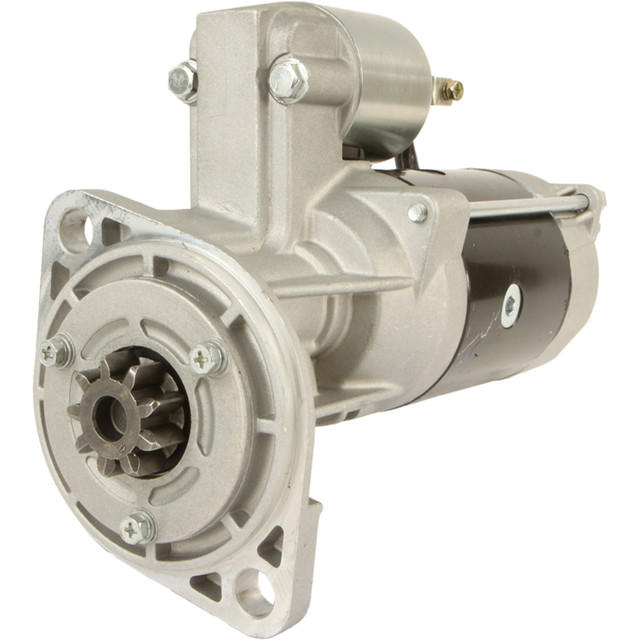

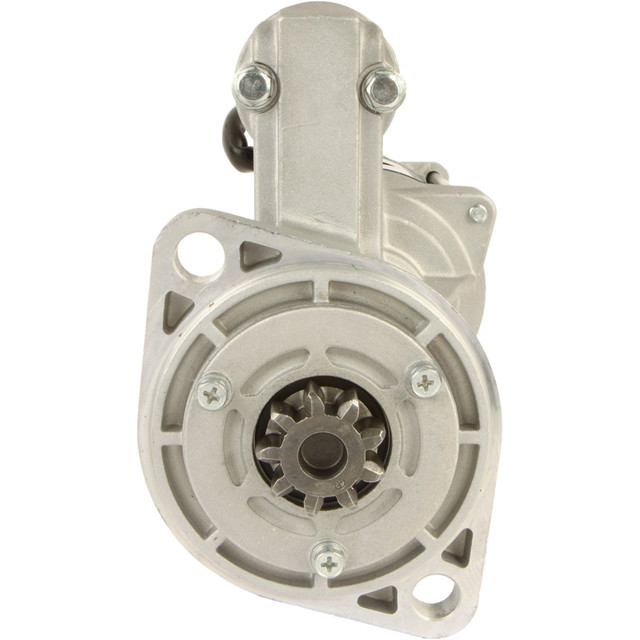

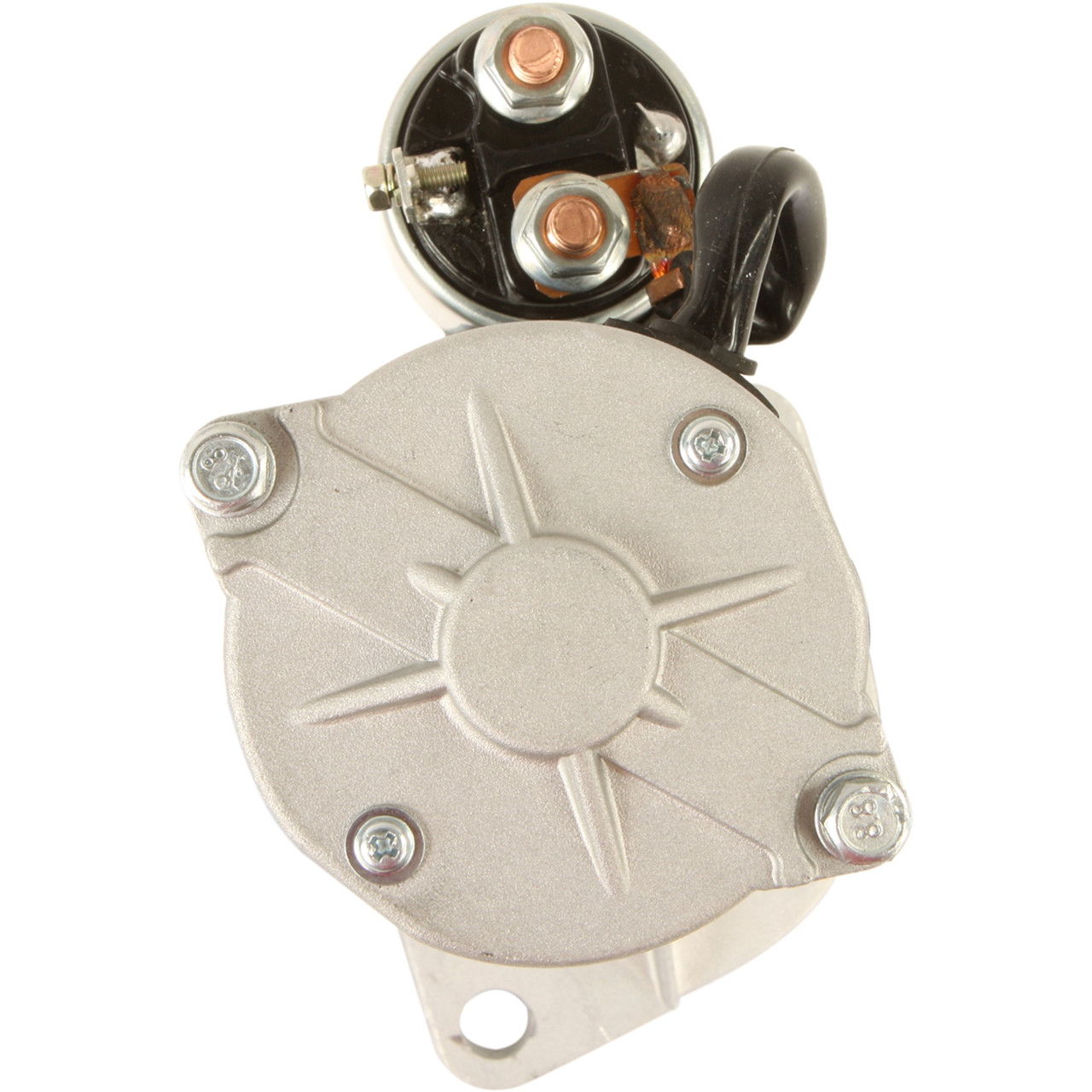

Starter Motor Yanmar 482/486 Thermo King 12V is a replacement starter for transport refrigeration engine applications that need 12V cranking power with 2.2kW output. It uses CW rotation and an OSGR design, so it suits setups that rely on a 9 tooth drive and a two-hole unthreaded mounting pattern. Because starter performance directly affects cold starts and restart reliability, this part suits engines that need strong and consistent engagement.

Features

• 12V starter motor with 2.2kW output for Yanmar 482/486 Thermo King applications.
• CW rotation and OSGR starter type for the specified engine and unit family.
• 9 tooth drive with 35.0012mm gear outside diameter.
• Two 13.0mm unthreaded mounting holes, so key mounting points are easier to match before ordering.

Specifications and Materials

Starter Motor Yanmar 482/486 Thermo King 12V suits Yanmar 486V and related 4TNE88 Tier 1, 2 and 4 transport refrigeration engine applications. Key selection points include 12V operation, 2.2kW power, CW rotation, OSGR starter type, B+ M8 terminal, 95.00mm mount flange and 213.00mm overall length. Part number: TK-45-2753-AM.

See Yanmar industrial engine documents for broader engine-family technical information

Compatibility and Fitment

Match voltage, tooth count, rotation, mounting hole size and flange dimensions against the removed unit before ordering. Also check drive reach and overall length, because those points affect engagement and clearance once the starter is bolted in. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 45-2753, 452753, 45-2177, 452177, 45-2324, 452324, 845-2177, 8452177, 845-2324, 8452324, 129685-77011, 12968577011, S13-407, S13407, S13-407A, S13407A

Compliance and Safety

Disconnect battery power before removal or installation, because starter circuits carry high current. Check cable condition, terminal fit and mounting security during the job, and confirm the pinion engages cleanly before returning the unit to service.

Trailer Applications

Starter Motor Yanmar 482/486 Thermo King 12V suits trailer refrigeration units where dependable engine cranking matters during daily starts, restart cycles and routine fleet servicing. A pinion assembly may also need attention at the same time when wear extends beyond the starter body.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
