Description

Overview

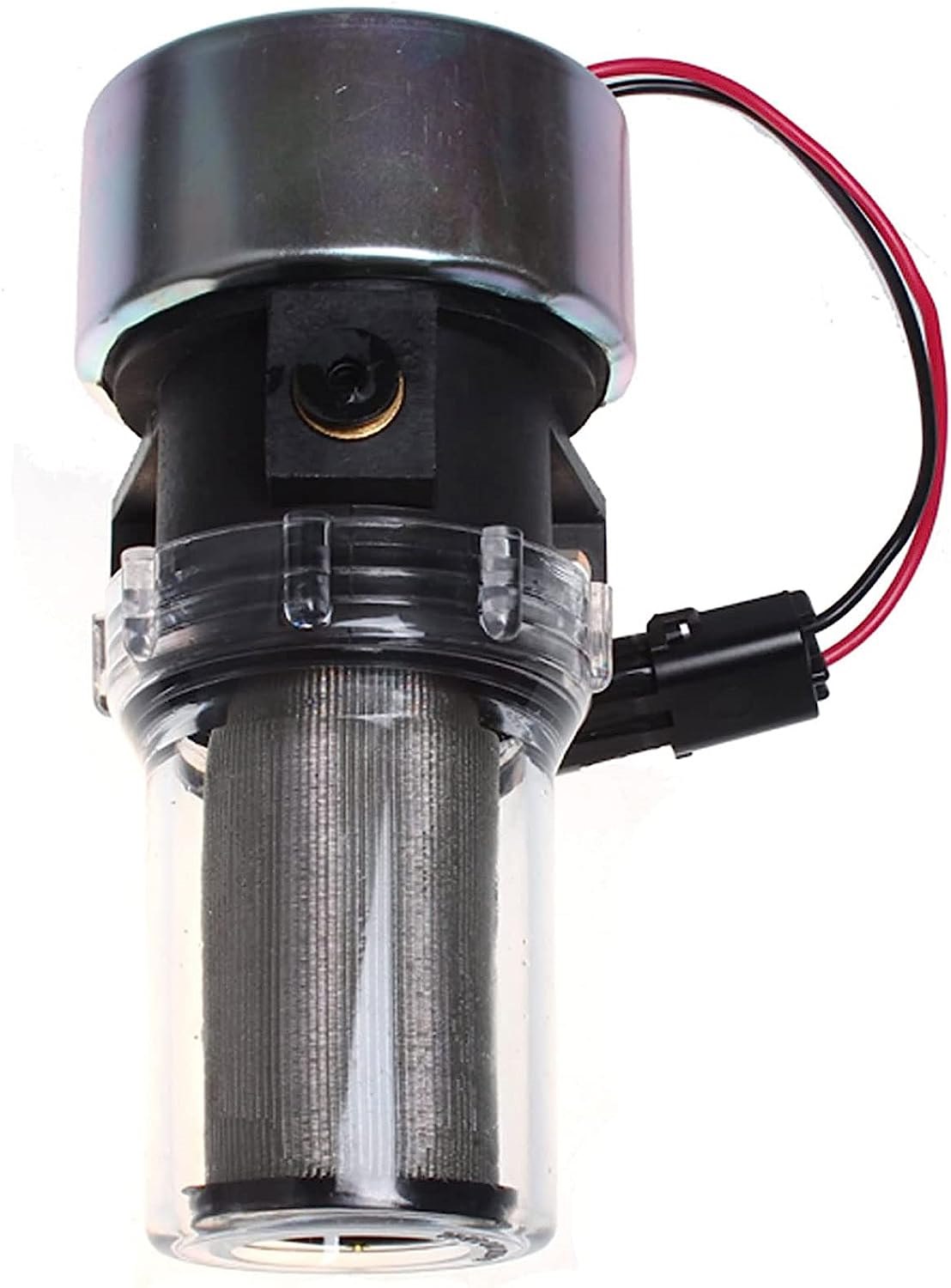

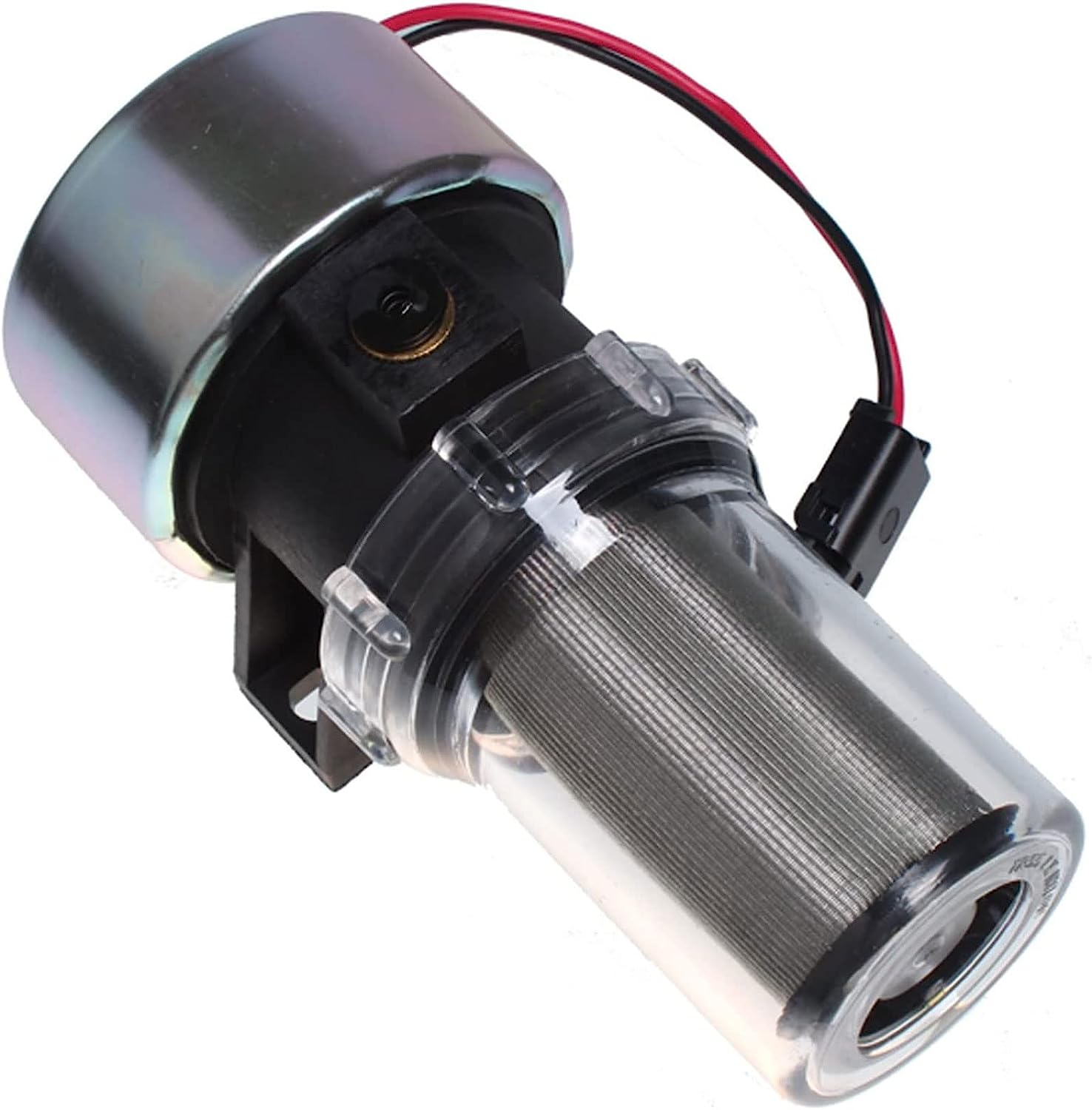

Facet Fuel Pump 12V Thermo King is a high-pressure electric pump for diesel transport refrigeration units. It keeps fuel supply steady during start-up and running load. The filter bowl layout also suits service work where clean fuel delivery and reliable priming matter.

Features

• 12V electric fuel pump for diesel unit service
• 9.0 to 11.5 psi operating pressure with 33 GPH flow
• 1/8-27 NPTF inlet and outlet ports for matching existing fittings
• Packard lead connection with internal 80-micron filter and check valve

Specifications and Materials

Facet Fuel Pump 12V Thermo King runs on 12V power and delivers 9.0 to 11.5 psi with 33 GPH flow. It uses 1/8-27 NPTF ports, a Packard lead, an internal 80-micron filter and a check valve. The working pressure also aligns with the listed 0.60 to 0.82 bar range for Thermo King and Carrier Transicold diesel unit service. Part number: TK-41-7059-HP.

See the Facet fuel pump specifications for Dura-Lift pressure and flow data.

Compatibility and Fitment

Match the voltage, port thread, pressure range and connector style before ordering. This matters most when the existing unit uses hard lines, threaded fittings or a glass bowl style pump. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 41-7059, 417059, 41-2638, 412638, 42-3322, 423322, 30-00364-00, 300036400, 30-01080-02, 300108002, 30-01108-00SV, 300110800SV, 30-01108-01SV, 300110801SV, 30-01108-03, 300110803, 30-01108-1, 30011081, 40223

Compliance and Safety

Use clean hose, sound clamps and correct polarity during installation. Air leaks or weak electrical supply can mimic pump failure, so check those first. Then prime the fuel system and inspect for leaks before returning the unit to service.

Trailer Applications

Facet Fuel Pump 12V Thermo King suits diesel transport refrigeration service on trailers and truck bodies where a 12V lift pump feeds the engine or unit fuel system. It is a sensible replacement when hard starting, fuel starvation or weak pump output points to a failed electric pump.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
