Description

Overview

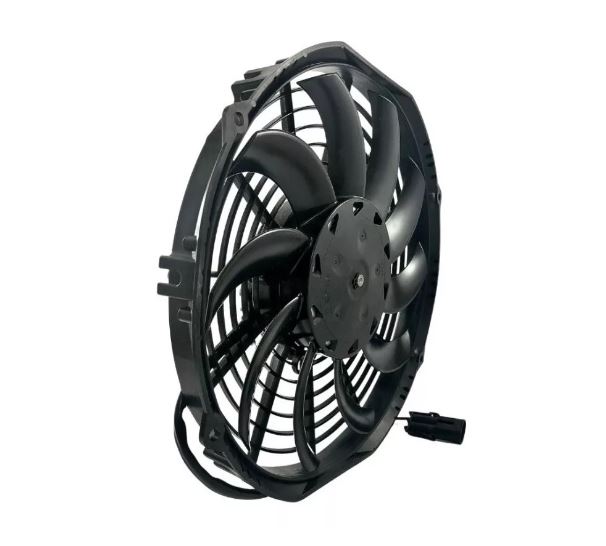

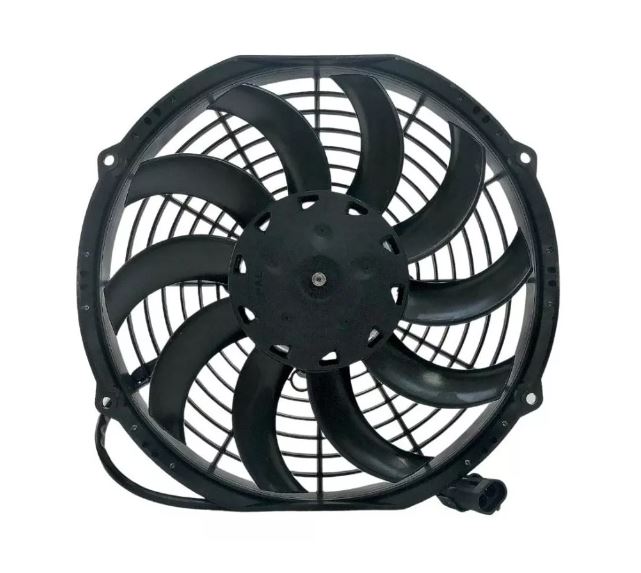

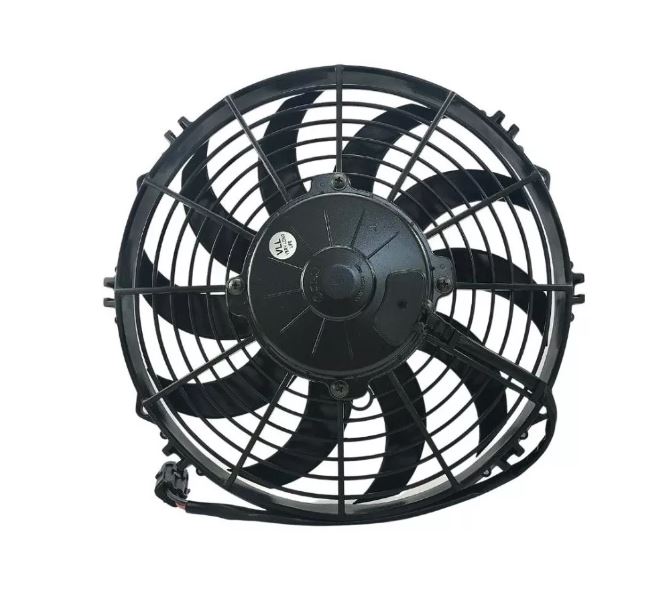

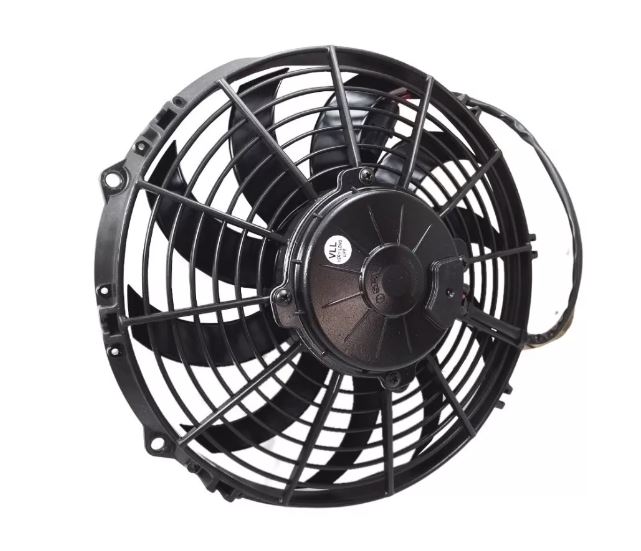

Condenser Fan Motor Thermo King V-Series 12V keeps air moving through the condenser on matched V-Series and KV-500 refrigeration units, so the system can shed heat and hold stable performance. This 12V suction fan draws 8A and moves 1350m³/h, which makes it a practical replacement when the fitted fan direction, size, and mount pattern match the original assembly.

Features

• Condenser Fan Motor Thermo King V-Series 12V suits condenser fan duty on matched Thermo King vehicle-powered units and KV-500 builds.
• 12V suction configuration supports pull-through airflow across the condenser core.
• Electric consumption is 8A, while airflow is rated at 1350m³/h.
• Key dimensions are A 268mm, B 284mm, C 142mm, D 246mm, and E 52mm.

Specifications and Materials

This condenser fan motor uses a 255mm fan format, so buyers can compare overall size and depth before ordering. Part number: TK-78-1375-AM.

See the Thermo King V-Series manufacturer technical guide for condenser unit service context

Compatibility and Fitment

Match the fitted fan direction, voltage, overall diameter, depth, and mounting points before ordering, because condenser fan layouts can vary across unit builds and service history.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 78-1185, 781185, 781-185, 78-1375, 781375, 781-375, 282101236, 411384, 412662, 451727, 1E01941G01, 02 2756, 022756, VT1141A, 1350 284, 1350284, 5 255 52, 525552, 30100435, 3010.0435, 30315022, 30-315022, 30-3150-22, 30315216, 30-315216, 30-3152-16, LNF-2209X, LNF2209X, VA11-AP7/C-57A, VA11AP7/C57A, VA11AP7C57A

Compliance and Safety

Isolate power before service, because condenser fans can start unexpectedly and rotating blades can injure hands or damage nearby wiring. After installation, confirm blade clearance, fastener security, airflow direction, and clean electrical connections so the fan can run without rub or voltage drop.

Trailer Applications

Condenser Fan Motor Thermo King V-Series 12V suits condenser assemblies on matched V-Series and KV-500 transport refrigeration units fitted to vans and light-duty delivery bodies. It is relevant when the original fan motor turns slowly, runs noisy, or stops moving enough air across the condenser.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers carries Thermo King service parts for transport refrigeration work, so this fan motor sits alongside the electrical and cooling items commonly replaced in the same repair. Browse Thermo King parts at ICS Trailers
