Description

Overview

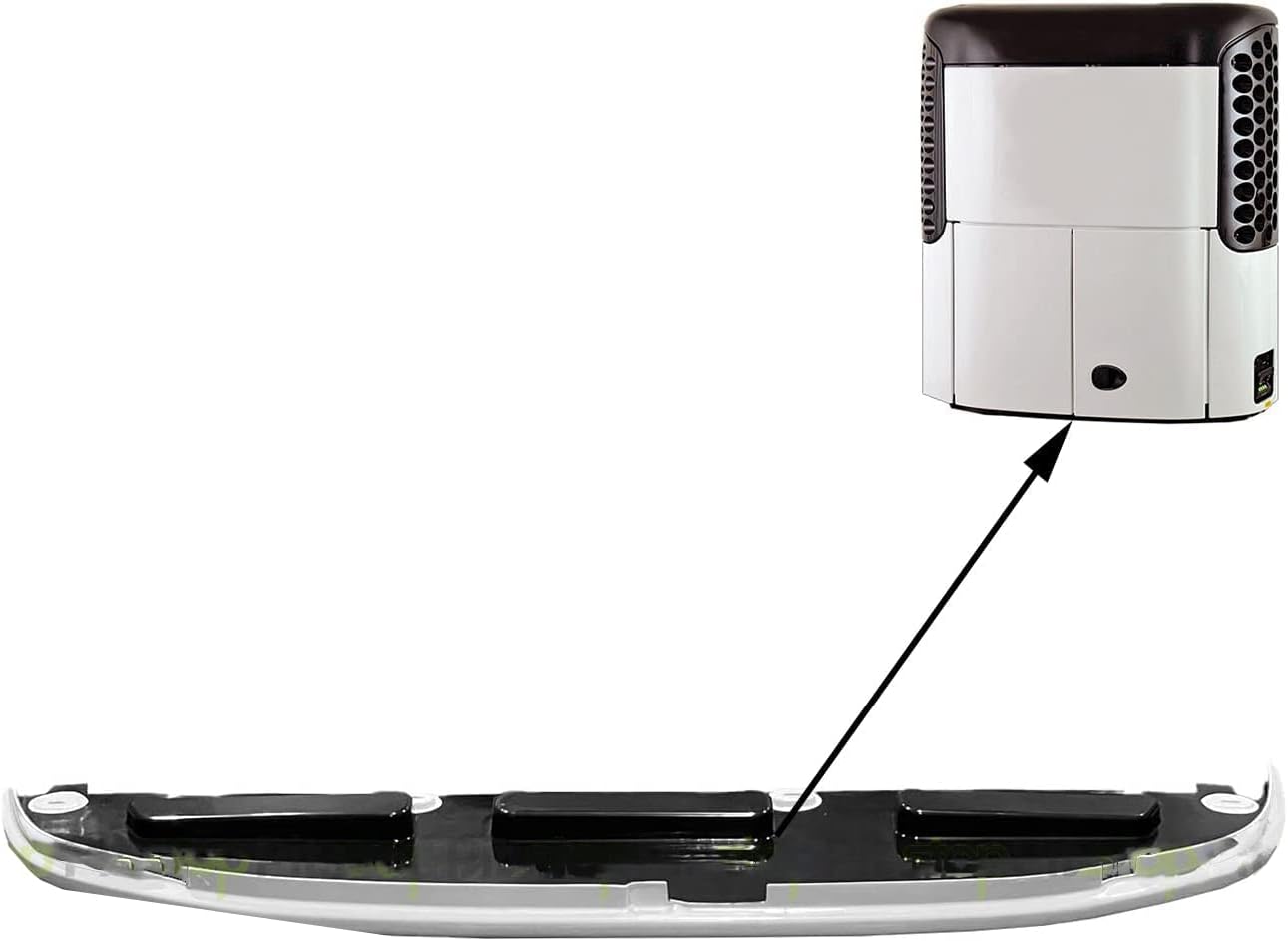

Bottom Pan Thermo King SB Series is an aftermarket replacement lower front pan for selected Thermo King SB refrigeration units. It closes off the lower front section of the unit housing, so you can replace a cracked, broken or bent pan without changing the adjoining doors, lower side panels or top cap. That keeps the repair focused on the damaged section and helps restore the front assembly shape where the rest of the panel set still lines up properly.

Features

• Fits the lower bottom pan position on selected Thermo King SB units
• Commonly listed across SB-100 to SB-400 panel assemblies
• Uses four mounting bolts in the panel assembly position
• Lets you replace the damaged lower pan while keeping adjoining front panels if they remain serviceable

Specifications and Materials

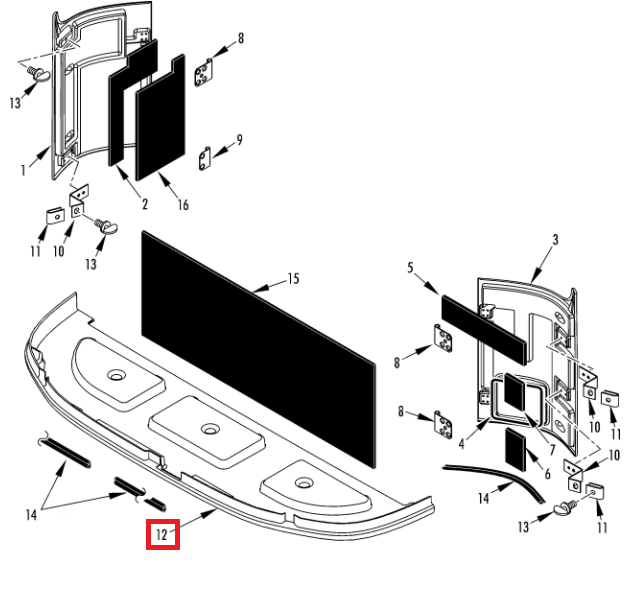

Bottom Pan Thermo King SB Series suits lower front panel repairs on selected SB refrigeration units and matches the bottom pan section used beneath the centre doors. This aftermarket version replaces the pan itself, so you can repair impact damage, edge cracking or broken lower sections without opening up a larger front-end panel job. It also suits fibreglass panel repairs where the lower pan has taken the damage but the surrounding doors and side panels can stay in service. Part number: TK-98-7057-AM. You can check Thermo King model information through the Thermo King manuals library

Compatibility and Fitment

Check the lower front pan shape, mounting points, overall length and the adjoining door and panel layout before ordering. Also match the unit family against your existing SB front assembly, because this pan sits under the centre door section and needs to line up cleanly with the lower side panels. This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 98-7057, 987057, 98-5756, 985756, 98-7077, 987077, 987-057, 987-077, TB-37-98-7057, TB37987057, TK-98-7057, TK987057, TRTK987057

Compliance and Safety

Support the panel evenly during installation and tighten the fasteners in sequence so the lower edge does not twist or crack under load. If the adjoining side panels, door edges or lower mounting points show damage, repair those sections first because poor alignment can stress the new pan and leave gaps in the front assembly.

Trailer Applications

Bottom Pan Thermo King SB Series suits front-end panel repairs on trailer refrigeration units where the lower pan has taken stone damage, impact damage or general service wear. It is useful when the front housing needs its lower section restored but the upper doors, grilles and side panels still remain usable. Bottom Pan Thermo King SB Series also suits tidy structural repairs where operators want to replace the damaged lower pan instead of changing a wider group of front panels.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
