Overview

Exterior mechanical load scale 25000kg gives drivers and workshops a direct way to monitor tandem axle group weight on air suspension setups that use two height control valves. After a loaded calibration at a certified ground scale, the gauge displays on-the-ground axle group weight in kilograms, so operators can check load position and axle weight before heading out. Because the gauge sits in a weather-resistant enclosure, it suits exposed mounting positions on truck and trailer applications.

Features

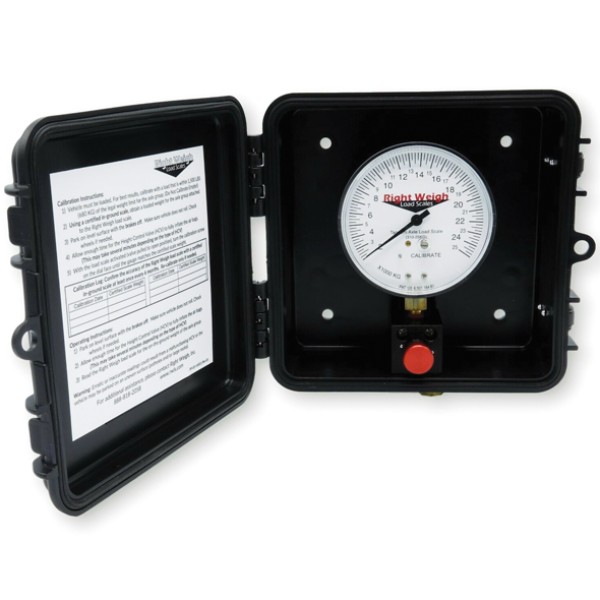

• Easy-read 3.5″ dial face with kilogram display
• Monitors one axle group with up to two axles
• Built for air suspension systems with two height control valves
• Weather-resistant enclosure with push/pull air valve

Specifications and Materials

This exterior mechanical load scale 25000kg uses an analog gauge in a black polypropylene enclosure and suits truck or trailer air suspension layouts. It monitors one axle group with up to two axles and up to two height control valves, while the display range goes to 25,000kg. Operating temperature range is -40°C to 60°C, and the gauge carries a 3-year warranty. Part number: SP0332. See the manufacturer product overview

Compatibility and Fitment

Match it to tandem axle air suspension systems that use two height control valves and display axle group weight in kilograms. Also check the mounting position, airline routing and bracket requirements before ordering, especially if the gauge is replacing an existing suspension indicator. If your setup uses one height control valve or monitors a different axle group, use the matching scale for that configuration instead.

Compliance and Safety

Calibrate the gauge with the axle group loaded on a certified ground scale, then recheck calibration if suspension work, ride height changes or air system repairs are carried out. Depressurise the air system before cutting or teeing into airlines, and keep plumbing clear of heat, sharp edges and moving suspension parts. Mount the enclosure where the face stays visible but protected from impact.

Trailer Applications

This exterior mechanical load scale 25000kg suits tandem axle trailer air suspension where operators want a simple outside check of axle group weight during loading, dispatch and day-to-day fleet use. It also suits workshops fitting a mechanical gauge instead of an in-cab display, while keeping weight checks close to the suspension plumbing and service points.
