Description

Overview

Air Spring Assembly SAF Modular 2923V supports trailer ride height and damping when a complete service replacement is required for SAF Modular 2923V suspension points. It helps reduce vibration that can contribute to uneven tyre wear and fatigue around suspension brackets. It also suits underslung and overslung layouts when the matching bellows and piston style apply.

Features

• Restores load support and ride stability when an air spring leaks or cracks
• Helps maintain consistent axle height, which supports predictable braking
• Suits common SAF Modular configurations used on heavy vehicle trailers
• Designed for standard trailer air suspension operating pressures

Specifications and Materials

This air spring assembly operates up to 7 bar (100psi) in typical trailer air suspension service. It also suits an operating temperature range of -40°C to +70°C. Part number: SP0122A.

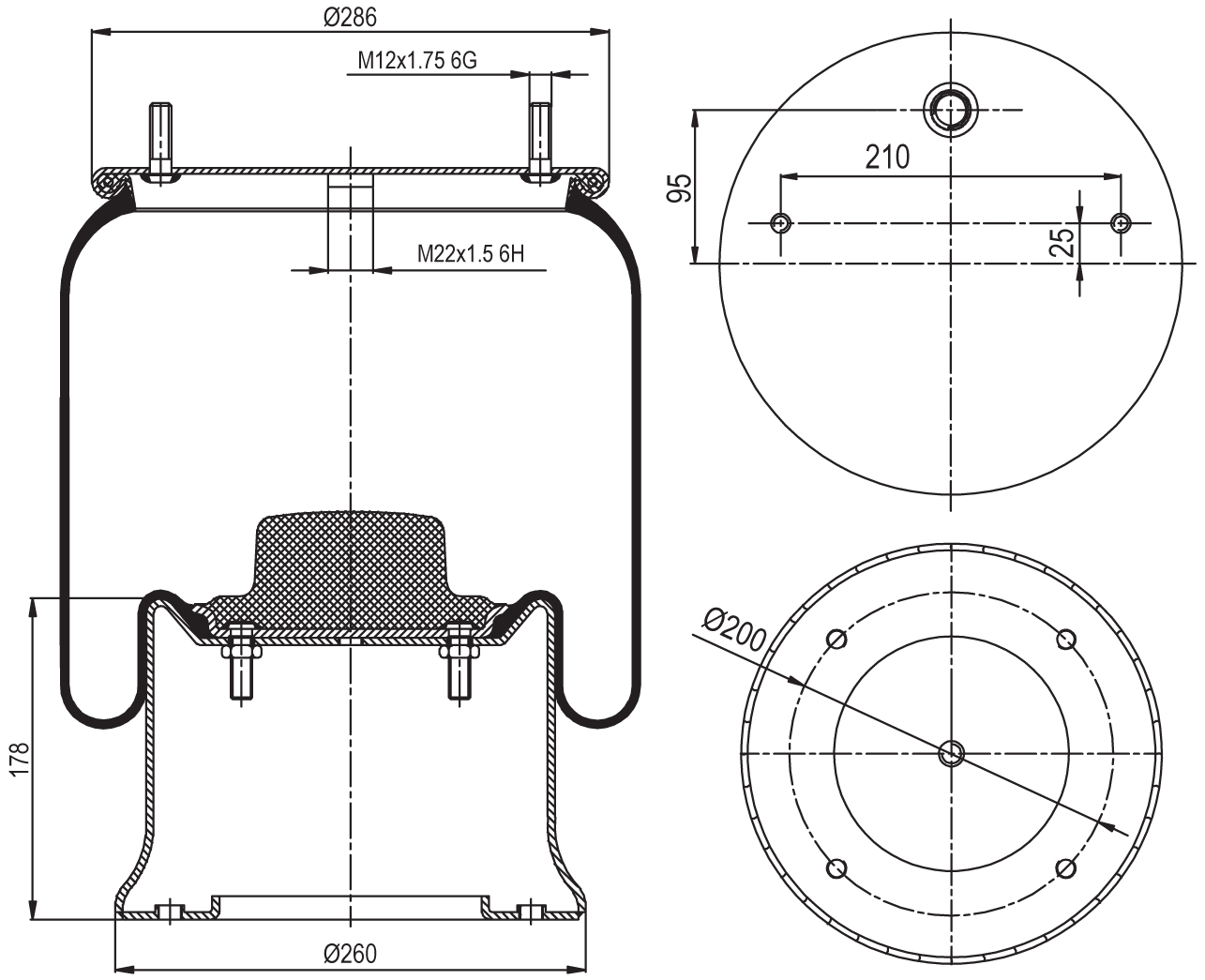

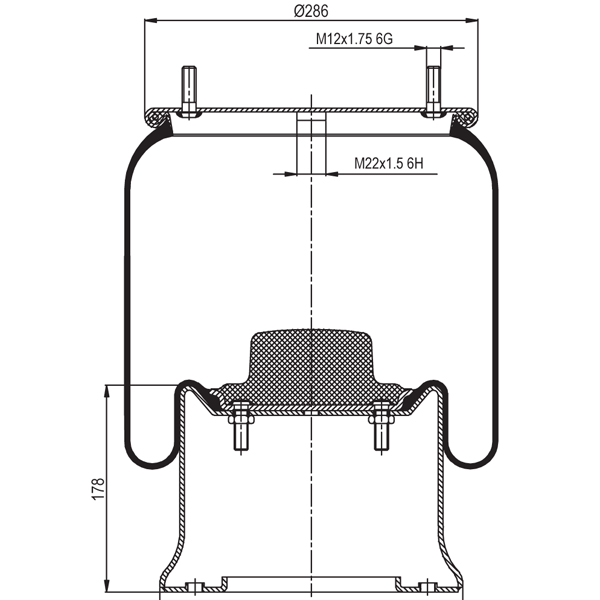

For comparable mounting and construction details, refer to the Prime-Ride 1R14-865 air spring catalogue sheet as a reference

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. P10.4023.C03, P104023C03, 4023 N P03, 1T19L-11, W01-M58-6348, 4023NP03, 1T19L11, W01M586348, 1R14-729, 1R14729, 3.229.0031.00, 2131.00, 2231.00, 2431.00, 3229003100, 213100, 223100, 243100, 566-28-3-547, 566283547, TT23.09.028, TT2309028, 130321, 130322, W01-358-8556, W013588556, 1T19L-7, 1T19L7, 1T19E1, 1R14-059, 1R14059, 1 D 28 A-2, 1D28A2, 951 814 729 0, 9518147290, B104, K104, KR 622-26, KR62226, 810MBTP03, 810 MB TP03, 810 MB-TP03, 9227, 2257, 8202, 1842, 9108, 566 28 3 547, W01 M58 6348

Compliance and Safety

Air suspension work can introduce safety risks if you trap pressure, so isolate the air system and support the chassis before removal. After installation, verify fastener torque, airline routing, and height control settings.

Trailer Applications

Air Spring Assembly SAF Modular 2923V commonly suits SAF Modular 2923V trailer suspensions across general freight, tautliner, and tipper combinations. It also suits maintenance programs that replace air springs in pairs to keep axle heights matched.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
