Description

Overview

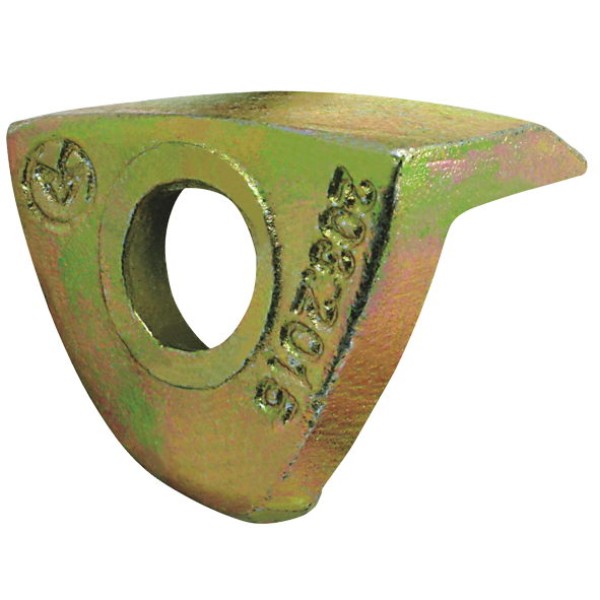

The long reach drive rim clip secures compatible spoke-wheel rims where a deeper clamp profile is required. It uses a 38mm reach with 72mm width, 63mm length and a 20mm hole diameter.

Features

• 38mm long-reach profile for compatible drive wheel applications
• 72mm width and 63mm length for dimensional identification
• 20mm hole diameter for matching the wheel stud arrangement

Specifications and Materials

A dimension: 38mm. B dimension: 72mm. C dimension: 63mm. D dimension: 20mm.

Part number: AP6051L.

Review the OSHA rim wheel servicing standard

Compatibility and Fitment

Compare the 38mm reach and remaining dimensions with the removed clamp before fitting. Standard and long-reach clips can look similar, so do not select by appearance alone.

The following cross-reference numbers identify verified equivalent or replacement parts for this exact application. Confirm the selection-critical fitment details against the part being replaced before fitting.

FP6058, FQ6058, 09-699317, BP6058, E-5902-TLU, FL52-1304, IT6051L, T04-6051L, WT6058

Compliance and Safety

Inspect the clip, stud and wheel mounting surfaces before assembly. Replace cracked, bent or heavily corroded wheel components before returning the wheel end to service.

Trailer Applications

The long reach drive rim clip suits compatible heavy trailer spoke-wheel assemblies requiring the longer 38mm reach profile.

Cross-reference and Suitability

This part cross-references to the following verified equivalent or replacement part numbers:

Why Choose ICS Trailers

Long-reach rim clips need to match the spoke-wheel profile closely, because the extra reach changes how the rim clamps against the wheel spider. ICS Trailers can compare the old clip, measurements and casting marks before you order.

• Check the 38mm reach first when separating this version from a standard clamp.
• Send clear photos and measurements if the old clip is worn or unmarked.
