Description

Overview

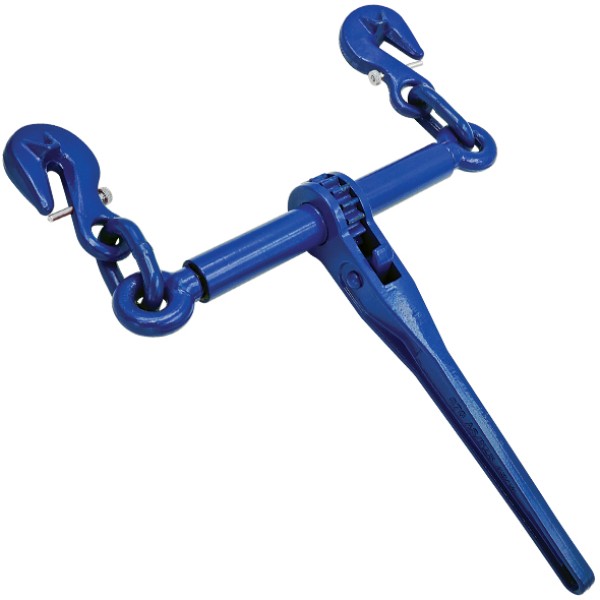

Load Binder Ratchet Dog 8mm hardware gives controlled tension for chain load restraint. Use it to take up slack without the sudden release common with lever binders. Because the ratchet takes small bites, you can fine tune tension and lock it in. It suits short chain applications on trailers and transport gear. Then you can recheck and re-tension after the load settles.

Features

• Tightens chain efficiently so you can remove slack.
• Uses winged grab hooks to help cradle chain links.
• Suits multiple Grade 70 chain sizes for common transport setups.
• Provides a more controlled release than lever style binders.

Specifications and Materials

Part number: CA4875.

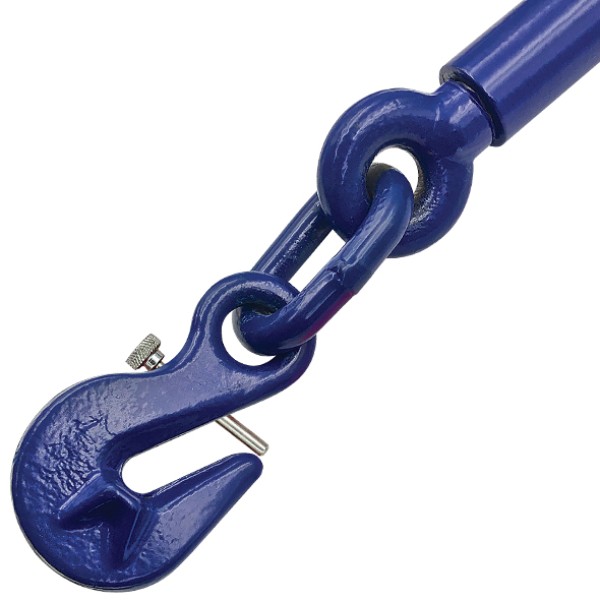

This binder uses a ratchet dog to draw the chain tight. The winged hooks help reduce chain deformation as tension builds.
Read the NZ Transport Agency load-securing equipment guidance to support correct chain restraint selection.

• Chain suitability: 7.3mm, 8mm and 10mm Grade 70 chain.
• Lashing capacity: 3800kg LC when used with 8mm Grade 70 chain.
• Also listed capacities: 3000kg LC (7.3mm) and 6000kg LC (10mm).
• Construction: tempered drop forged steel.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. No confirmed cross-reference part numbers were identified for this item.

Compliance and Safety

This Load Binder Ratchet Dog 8mm item conforms to AS/NZS 4344:2001 when used as intended. Match the binder, chain and hooks to the required lashing capacity. Inspect for wear, cracks, bent hooks, or damaged chain links before each trip. Do not use load restraint hardware for lifting. Replace any component that shows damage or excessive wear.

Trailer Applications

Use a Load Binder Ratchet Dog 8mm setup on flat top trailers, drop deck trailers, and plant trailers. It also suits general freight trailers carrying machinery or rigid loads. Tension short chains around anchor points, then re-tension after the load settles.

Cross-reference and Suitability

No confirmed cross-reference or interchange part numbers were identified for this item.

Why Choose ICS Trailers

Get help choosing the right chain size and lashing capacity. You can also pair this binder with compatible chain, hooks, and anchor hardware. If you are unsure, share your chain size and anchor points. Then we can point you to matching parts for your setup. Browse Hardware parts at ICS Trailers with Browse Hardware parts at ICS Trailers to complete your load restraint setup.
