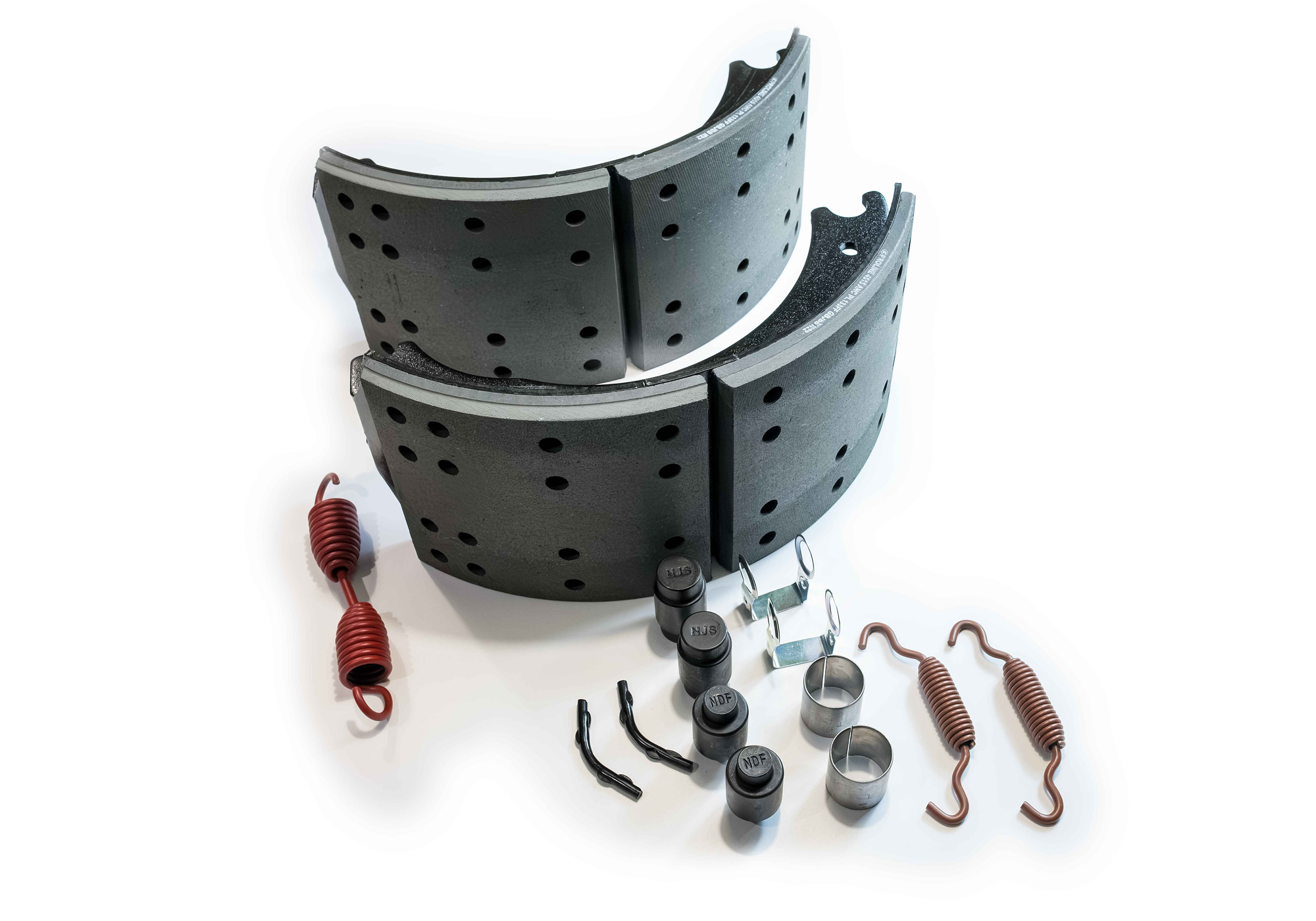

XEM Q brake shoe hardware kit services one wheel position on Fuwa K Hitch KF21 axle brake assemblies. This kit suits XEM Q type brake setups and includes the shoe set, rollers, retainers and anchor hardware needed for brake shoe replacement.

Features

• Shoe and hardware kit for one wheel position.
• Suits Fuwa K Hitch KF21 axle applications with XEM brake assemblies.
• Includes shoe set, rollers, roller retainers, return spring and retaining pins.
• Also includes anchor spring, anchor pins and anchor pin bushes.

Specifications and Materials

The XEM Q brake shoe hardware kit suits 420mm x 180mm, 16.5” x 7” XEM drum brake assemblies in supported KF21 axle layouts. It packages the brake shoe set with the matching service hardware for one wheel.

Part number: D20-010101K.

Review the Fuwa K Hitch KF21 axle parts view for kit application and component guidance.

Compatibility and Fitment

Match the axle model, brake type, drum size and existing shoe hardware before ordering. This kit suits KF21 axle applications shown with XEM 420mm x 180mm brake assemblies, so compare the existing brake hardware before stripping the wheel end.

Check both sides of the axle during brake service. If the opposite wheel shows uneven wear, weak springs or damaged anchor hardware, replace the affected components at the same time.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the drum, rollers, anchor points and cam contact areas before fitting the new brake shoe kit. Replace worn or damaged hardware before returning the trailer to service.

After installation, adjust and test the brake system so shoe clearance, chamber stroke and brake return all operate correctly. If the drum or cam hardware shows heavy wear, repair those parts before bedding in the new shoes.

Trailer Applications

Workshops use this XEM Q brake shoe hardware kit during Fuwa K Hitch KF21 trailer axle brake servicing. It suits brake shoe replacement work where the existing assembly matches the XEM Q type setup and the trailer needs one wheel position serviced with shoes and hardware together.
