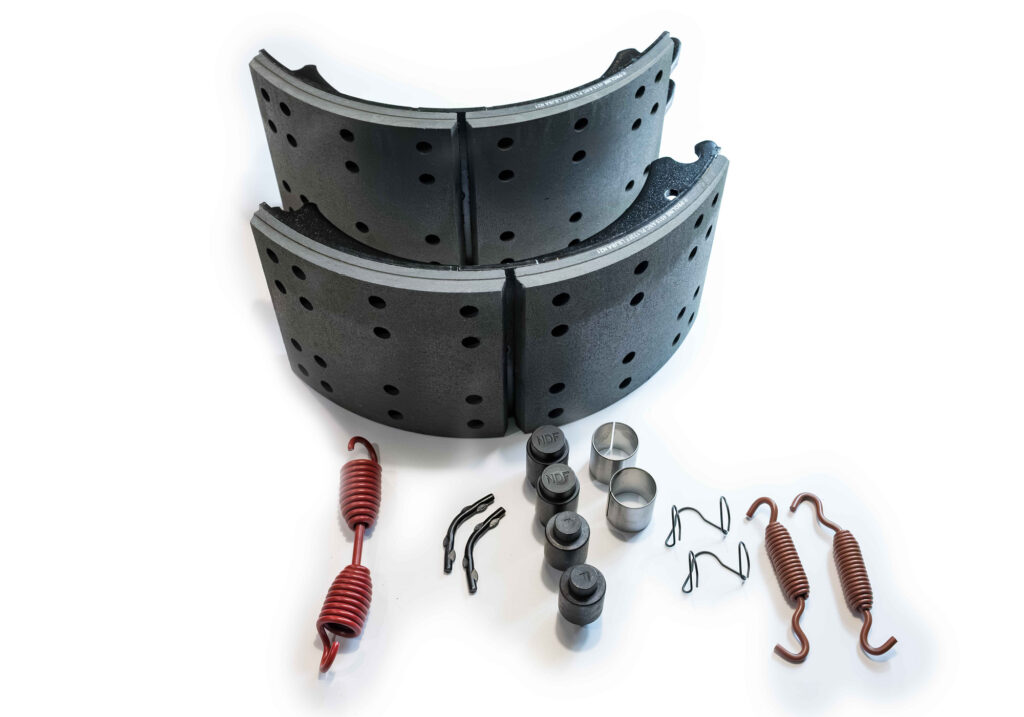

Q-Type Brake Shoe and Hardware Kit 4515
Q-Type Brake Shoe and Hardware Kit 4515
$89.00
Q type brake shoe kit for GP 4515 trailer drum brake applications, covering one wheel end with lined shoes and matching hardware for axle brake servicing.
Part number D20-020101K.
Description
Overview
Q type brake shoe kit replaces the lined shoe set and brake hardware on GP Q type trailer drum brake applications. The kit suits one wheel end, so check the axle and brake setup before ordering for a full axle service.
Features
- Includes the brake shoe set and matching hardware for one wheel end.
- Suits Q type 4515 brake applications where the standard GP brake setup is fitted.
- Helps replace worn shoes, rollers, springs, anchor pins and bushes together.
- Matches KF22 drum brake axle parts where the Q type shoe kit is specified.
Specifications and Materials
This Q type brake shoe kit suits 16.5″ x 7″ drum brake applications and GP Q type brake hardware. The kit covers one wheel end, so two kits are normally checked when servicing both sides of an axle.
Part number: D20-020101K.
It includes the shoe set plus the matching hardware components used around the roller and anchor end of the brake assembly.
Use the manufacturer parts view when checking KF22 brake kit selection
Compatibility and Fitment
Match the brake type, axle model, drum size and existing hardware style before ordering. Also check whether the axle uses the standard Q type setup, because long pin P brake versions use different kit numbers.
Related Parts
Check the related brake parts below against the axle and brake setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Component of | D20-020101 | Shoe set |
| Service part | D20-020101H | Q type brake hardware kit |
| Related version | D20-020104K | Long pin P brake shoe kit |
| Related version | D20-020104H | Long pin P brake hardware kit |
Compliance and Safety
Replace brake hardware carefully and inspect the drum, camshaft, rollers and anchor area while the assembly is apart. If the brake shows uneven wear, heat damage or hardware movement, investigate the cause before refitting the wheel end.
Trailer Applications
Workshops use a Q type brake shoe kit during axle brake servicing where the shoes and small hardware need changing together. It suits heavy trailer maintenance where matching the Q type brake setup matters more than replacing shoes alone.
Why Choose ICS Trailers
ICS Trailers supplies heavy trailer brake and axle parts for maintenance, repair and workshop service work.
See more trailer brake parts in Brakes
