Description

Overview

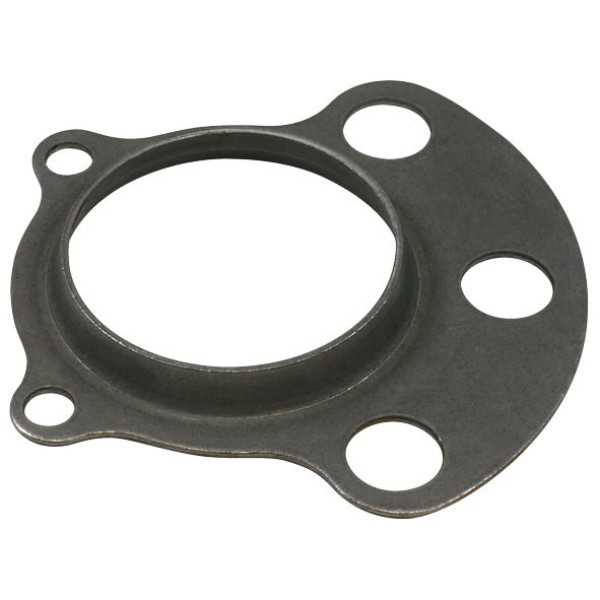

The Meritor camshaft bracket 65mm bush assembly is a general purpose hanger that supports the brake camshaft bush on heavy trailer axles. It locates the shaft around its 65mm inner diameter, so the foundation brake hardware stays running true under load. It also helps transfer braking forces into the hanger and chassis bracket, which helps the S-cam rotate smoothly over time.

Features

This Meritor camshaft bracket 65mm bush assembly uses a three-hole mounting pattern, so workshops can line it up quickly on matching hangers. The 17mm hole diameter suits common heavy trailer fasteners and typical torque settings. The bracket profile also allows easier spanner access around bolt heads and nuts, which can speed up replacements in the workshop. It suits a wide mix of camshaft and hanger layouts where a 65mm bush is specified.

Specifications and Materials

Part number: FB3002.
This camshaft bracket accepts a 65mm inside diameter bush and mounts with three 17mm fastener holes on a typical heavy trailer hanger. It suits Bush FB2101 and comparable S-cam brake layouts used on many road trailer axles. For general guidance on heavy vehicle brake and suspension inspections, refer to this heavy vehicle inspection manual from the NHVR

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. Bush FB2101, 03-1702-0, 1205N430, 219157, BP3002, E-603, FL30.1362, WT3002

Compliance and Safety

Correctly supporting the brake camshaft is critical for safe heavy vehicle braking performance, so technicians should follow Meritor and axle maker instructions when installing the Meritor camshaft bracket 65mm bush assembly. When replacing the bracket, check the bush, camshaft, seals and hardware for wear. Always chock wheels, support the trailer on rated stands, and isolate air supplies before working on any foundation brake components.

Trailer Applications

Workshops typically use the Meritor camshaft bracket 65mm bush assembly on semi-trailers and other heavy trailers fitted with compatible drum brake systems. It suits general freight, tanker, bulk and curtain-sider fleets where S-cam brakes rely on a hanger-mounted bracket and bush to carry the camshaft. If you are standardising parts across multiple trailer models, this general purpose layout can help where the hanger pattern and 65mm bush match.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Always confirm the bush size, hanger pattern and camshaft details against existing hardware before ordering or fitting the Meritor camshaft bracket 65mm bush assembly.
