Overview

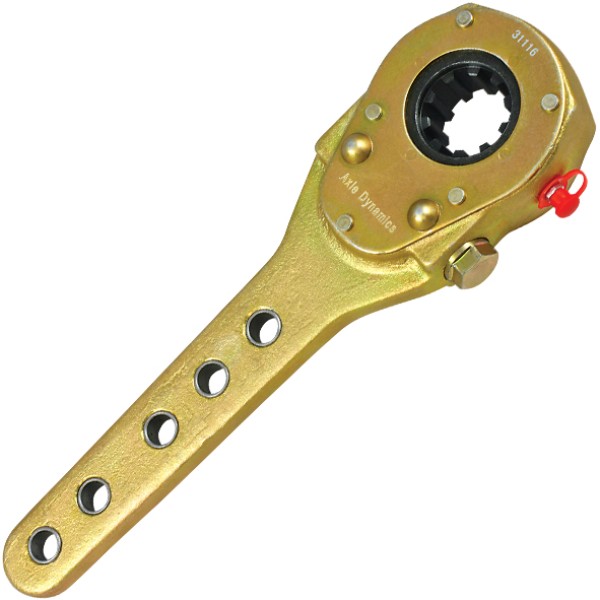

The Manual Slack Adjuster BPW 10 Spline 38mm 5 Hole helps you set and maintain correct brake stroke on BPW style S-cam drum brake setups. Because slack adjuster geometry affects stopping performance, this manual unit gives technicians direct control during servicing. It suits fleets that want a straightforward adjuster for routine maintenance.

Features

The multi-hole arm design lets you choose a linkage position that keeps the pushrod and clevis running true.

• Manual adjuster design for straightforward setup and servicing
• 10 spline toothing with 1 1/2 inch (38mm) spline size for common BPW camshafts
• Five arm holes with multiple arm length positions to suit different linkage layouts
• 14mm clevis pin hole to match typical pushrod clevis hardware

Specifications and Materials

Part number: FB5024.

This slack adjuster uses a 10 spline, 1 1/2 inch (38mm) spline size interface and a 14mm clevis pin hole. Arm length options are 120mm, 150mm, 180mm, 220mm, and 250mm, and it provides five mounting holes for common BPW lever geometries.

For servicing and adjustment guidance, use the HVIA brake servicing and maintenance guide which outlines practical inspection and maintenance considerations

Compatibility and Fitment

Confirm your camshaft spline count and spline size first, then check your required arm length and clevis pin diameter. Ensure the lever hole count suits your linkage arrangement so the pushrod operates through a clean arc without binding. This manual slack adjuster is intended for BPW applications using SAE 1 1/2 inch 10 spline camshafts and a 14mm clevis pin.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown, but some changes in installation may be required. 0517452610, 05.174.52.61.0, 05.174.52.610, 046.404-00A, 04640400A, 10.13021, 05968, 58151, 90.10.001, 1013021, 9010001

Compliance and Safety

Braking components are safety critical, so a qualified technician should install and adjust this slack adjuster and then verify brake stroke across the axle. Replace any worn clevis pins, bushes, or camshaft splines so the adjustment holds under load. This helps reduce the chance of uneven braking and premature lining wear.

Trailer Applications

The Manual Slack Adjuster BPW 10 Spline 38mm 5 Hole typically suits heavy trailer axles running BPW style S-cam drum brakes. It can suit on-road and off-road trailer combinations where a 10 spline 38mm camshaft and multi-hole lever positions are required for correct pushrod geometry.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Notably, verify the full brake and axle configuration before ordering because different lever styles can exist within the same platform.

Why Choose ICS Trailers

ICS Trailers backs your workshop with practical selection support and Australia-wide supply. This helps you match the Manual Slack Adjuster BPW 10 Spline 38mm 5 Hole to your brake setup and keep vehicles moving with confidence.
