Description

Overview

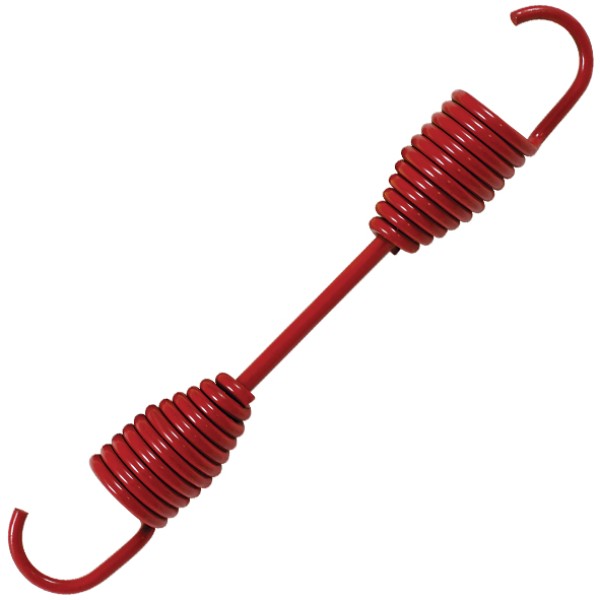

Fruehauf XEM Q Type Return Spring 210mm helps restore correct shoe return on Fruehauf XEM Q type foundation brake hardware after each brake application. When return springs weaken or break, shoes may not retract cleanly, which can contribute to brake drag, heat build-up, and uneven wear. Select this spring when you need the stated size and configuration for the XEM Q style setup.

Features

• Designed to suit Fruehauf XEM Q type brake hardware
• 210mm overall length to match the specified application
• 28mm coil diameter for correct seating and clearance
• Helps reduce brake drag when the brake hardware is in good condition

Specifications and Materials

Before removal, confirm the existing spring position and hook orientation so the replacement matches the hardware layout.

• To suit: Fruehauf XEM Q type brake hardware
• Overall length: 210mm
• Coil diameter: 28mm

Part number: FB7355.

Compatibility and Fitment

Return springs vary by shoe type, anchor layout, and hook style, so match by application as well as the listed dimensions. Ensure the spring seats correctly, clears adjacent parts, and returns both shoes evenly. If other hardware is worn or corroded (pins, retainers, rollers, adjuster parts), replace it at the same time so the spring is not fighting damaged components.

Compliance and Safety

Brake components affect stopping performance, so only fit parts that match the trailer’s brake specification. After installation, verify free shoe movement, correct return action, and safe brake operation before returning the trailer to service. If you are unsure, have a qualified heavy vehicle technician inspect the assembly.

Trailer Applications

Commonly suits Fruehauf trailers using XEM Q type brake hardware. It is typically replaced during brake rebuilds, shoe changes, or hardware refreshes when the original spring has lost tension or shows corrosion.

Cross-reference and Suitability

No verified interchange part numbers are confirmed for this item here. Select by the Fruehauf application, 210mm overall length, 28mm coil diameter, and the hook style compared with the removed spring.

Why Choose ICS Trailers

ICS Trailers supplies foundation brake parts for heavy trailer servicing and can help you match the correct hardware before you order. You can also bundle related brake service items to complete the rebuild in one job.

Browse related parts in Foundation Brakes at ICS Trailers.
