Description

Overview

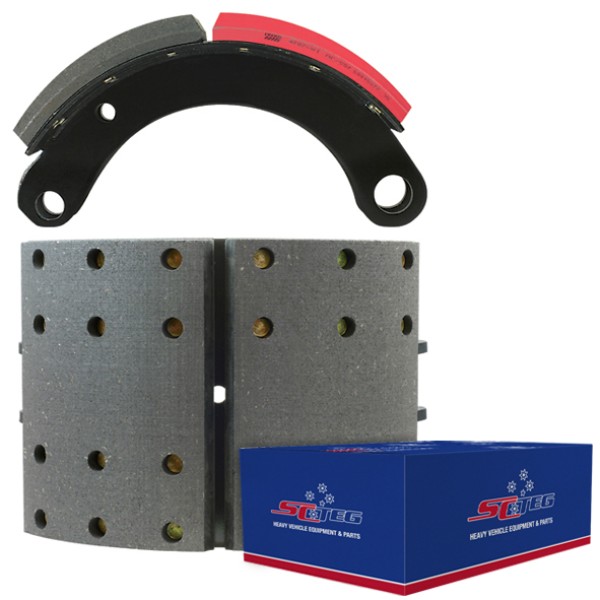

Fras-Le Lined Brake Shoe Kit 12.25in x7.5in provides a riveted, lined brake shoe set for heavy duty drum brakes and includes matching hardware for one wheel.

The AF557 lining targets higher load duty cycles, so it can help maintain stable friction through typical operating temperatures. The riveted lining design supports predictable wear, which can help you plan maintenance intervals more consistently.

Features

• Supplied as two lined, riveted brake shoes plus a hardware set for one wheel
• Premium friction lining rated for high GAWR applications
• Consistent braking feel, which can help reduce rework and adjustment time
• Noise control and durability focused for general purpose service

Specifications and Materials

Brake shoe size: 12.25in x7.5in, which is 311 x 190mm.

Friction lining: Fras-Le AF557, described as premium 23,000lb GAWR friction material.

Rivets per shoe: 24.

Working temperatures: 260°C operating, with short time exposure up to 500°C.

Kit contents include two lined, riveted brake shoes and a brake hardware set for one wheel.

Part number: FB5046KT.

Read the Meritor friction material technical bulletin for AF/557/FF grade context

Compatibility and Fitment

Confirm your drum size and shoe width match 12.25in x7.5in before ordering. Then check the shoe table, roller, and hardware style so the set installs cleanly and adjusts correctly. If any measurements differ, choose the correct pattern instead.

Compliance and Safety

Brake friction components are safety critical, so inspect drums, rollers, and cams during replacement. Follow the axle or brake manufacturer service procedure and torque settings for your specific assembly. Bed in new friction material gradually to stabilise friction and reduce hot spotting. Confirm brake balance and adjustment before returning the vehicle to service.

Trailer Applications

Fras-Le Lined Brake Shoe Kit 12.25in x7.5in commonly suits trailers and heavy vehicles that run 12.25in x7.5in drum brake systems.

• General freight and tautliner trailers
• Tipper and tanker style trailers
• Dollies and converter gear with matching drum size
• Worksite and mixed surface applications where wear is higher

Cross-reference and Suitability

At this time, no verified cross-reference or interchange part numbers were confirmed for this listing. Instead, match by drum size, shoe width, lining type and hardware style.

Why Choose ICS Trailers

ICS Trailers helps you confirm fitment so you order once and fit once. Fras-Le Lined Brake Shoe Kit 12.25in x7.5in pairs well with a full hardware refresh and a drum inspection, which can help reduce repeat downtime and keep fleet maintenance consistent across similar axles.
