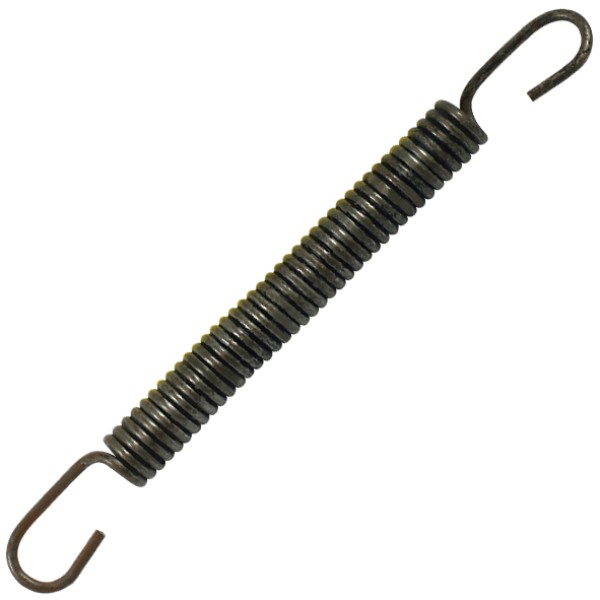

The Eaton E34 axle brake return spring suits 15 inch low loader drum brake assemblies on heavy trailers. It links the brake shoes to their anchor points so the shoes release cleanly when air pressure drops. It also helps limit drag and heat, which supports even lining wear across the axle group.

Features

• Matched to Eaton E34 axle drum brake hardware for 12-1/4 inch low loader brake assemblies
• Provides reliable spring force so the brake shoes return promptly after each application
• Supports consistent brake response, which helps drivers maintain control during frequent stopping

Specifications and Materials

This Eaton E34 axle brake return spring suits 15 inch brake assemblies with 12-1/4 inch drums on E34 axles. Overall free length is specified as 163mm with a 12mm diameter so technicians can confirm fitment against the removed spring. In normal operation the spring works in tension and uses heat treated spring steel for heavy commercial brake service.

Part number: FB3457.
For additional guidance on drum brake maintenance and shoe return springs, refer to the manufacturer technical guide

Compatibility and Fitment

This Eaton E34 axle brake return spring suits low loader trailers using Eaton E34 axles with 12-1/4 inch drum brakes where the original hardware matches the listed length and diameter.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-1400, B-2010, 820164, 19-866, FL19.866, WT3465

Compliance and Safety

Correct return springs support balanced brake performance across the axle group, which helps trailers meet inspection and roadworthiness expectations. Follow safe workshop procedures because brake springs store energy and can move suddenly if released incorrectly. Finally, confirm that the spring hooks seat fully and clear all moving components through the full brake stroke.

Trailer Applications

The Eaton E34 axle brake return spring appears on low loader and equipment trailers that use 15 inch drum brakes. These trailers often run at high gross weights, so they rely on reliable shoe return to keep brake response predictable. However, always compare the removed and replacement springs visually and confirm the axle and brake data before final installation.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Use the cross-reference information as a guide only and confirm all dimensions, brake sizes and axle details against the original equipment before ordering.
