Description

Overview

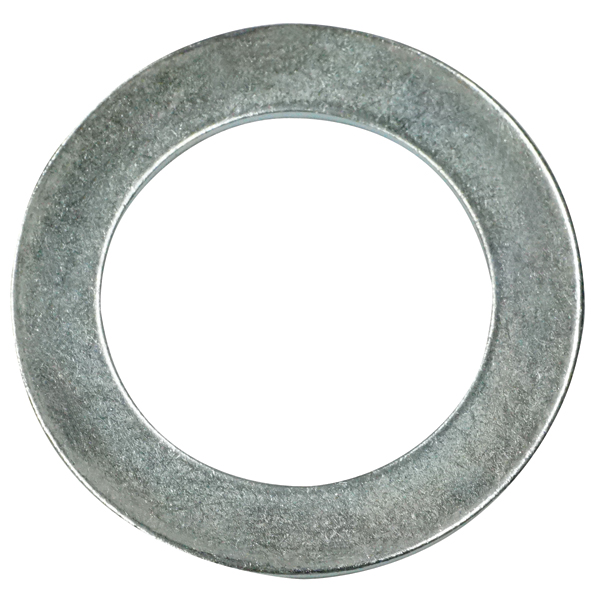

The camshaft washer general purpose thick washer helps locate and support the brake camshaft in heavy trailer foundation brakes. It sits between key hardware surfaces so it helps keep the camshaft running true and can reduce wear over time. As a result, it supports consistent brake performance on busy fleets.

Features

This camshaft washer general purpose thick washer suits camshaft applications that use a 38mm shaft and matching hardware stack. The 1.6mm thickness lets you take up end float while maintaining correct running clearances. The broad outer diameter also spreads the load across a wider support face, which helps stabilise the camshaft under repeated brake cycles.

• 1.6mm thick washer to help take up end float
• 38mm inside diameter and 57mm outside diameter to suit common hardware stacks
• Flat bearing face to spread load across the bracket
• General purpose pattern for servicing mixed fleets where sizes match

Specifications and Materials

Part number: FB3102.
This camshaft washer general purpose thick washer uses a nominal thickness of 1.6mm with an inside diameter of 38mm and an outside diameter of 57mm, which matches the sizes shown in the original reference listing. You can select a suitable washer material for brake and suspension setups by following this washer technical overview on standard washer dimensions and use

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 1229L844, 152-06210, 219158, 29-1310, E-656, FL29.1310, WT3101

Compliance and Safety

Correct camshaft support helps braking hardware stay aligned, so it contributes to safe and predictable trailer braking. Always check local heavy vehicle regulations and operator standards before you put a vehicle back into service. In addition, inspect the camshaft, bushings and brackets for wear whenever you change a camshaft washer. Replace any damaged components at the same time.

Trailer Applications

You will commonly find this camshaft washer in foundation brake setups on heavy trailers and semi-trailers. It suits workshops that service mixed fleets where multiple cross-referenced numbers appear on job cards. It also works well as a shelf stock item when you want coverage across several equivalent camshaft washer listings. Keeping the camshaft washer general purpose thick washer on hand can help reduce delays during brake servicing.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
