Description

Overview

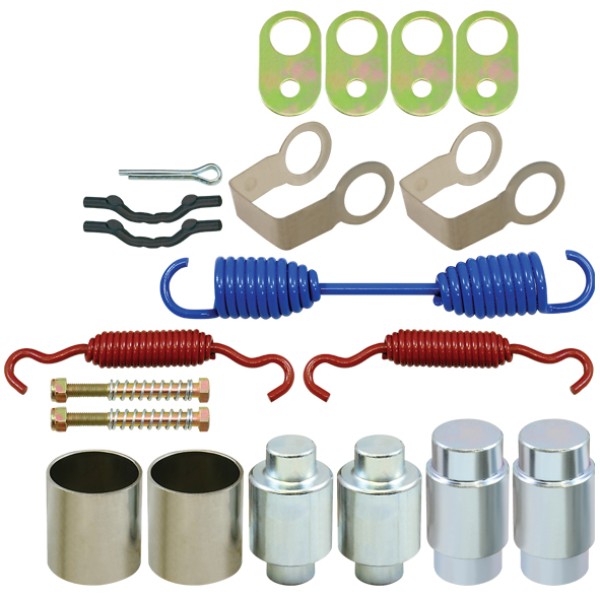

Brake Shoe Hardware Kit XEM is a replacement hardware kit for XEM trailer drum brake assemblies. It groups the main service hardware in one kit, making it easier to replace worn brake hardware during routine maintenance or a brake rebuild.

Features

• Replacement hardware kit for XEM trailer drum brake assemblies
• Includes key springs, rollers and support pieces used in the brake setup
• Used when worn hardware needs replacing during brake service
• Suits trailer axle brake maintenance and rebuild work

Specifications and Materials

Brake Shoe Hardware Kit XEM matches the XEM brake assembly layout used on trailer axle applications. It aligns with the service layout used on the related Kedi drum brake family, including the commonly referenced 420x180mm brake size.

Part number: FB3335.

For heavy vehicle brake inspection guidance, see the NHVR Section 2 Brakes inspection reference.

Compatibility and Fitment

Check the existing brake assembly before ordering, because XEM hardware must match the brake family already fitted to the axle. This kit is intended for hardware renewal rather than complete shoe replacement. If shoes are also being replaced, confirm the full assembly type first so the parts stay matched during installation.

Compliance and Safety

Brake hardware controls shoe return, roller support and brake movement, so correct fit matters. Inspect each spring, roller and support point during assembly, replace any damaged mating parts at the same time, and confirm free movement before the trailer returns to service. Recheck the assembly during normal maintenance, as worn hardware can affect brake consistency.

Trailer Applications

This kit suits trailer brake servicing, axle brake overhauls and workshop rebuilds where the original hardware shows wear, damage or loss of tension. It also suits planned maintenance when the brake assembly is already apart.
