Description

Overview

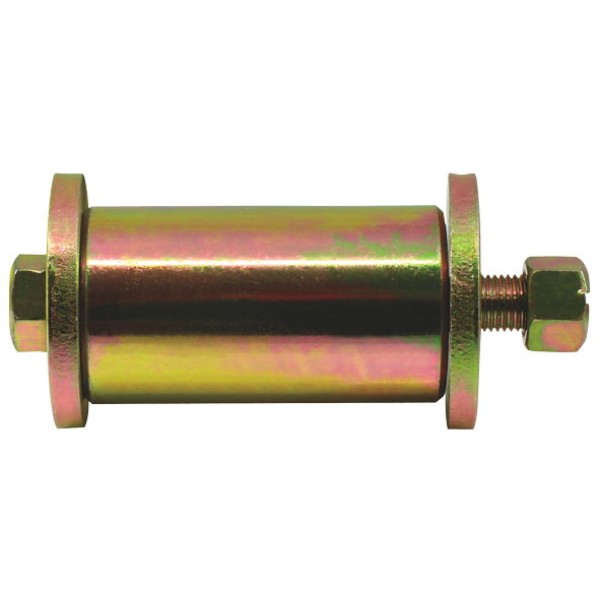

This brake shoe anchor pin 68mm provides a heavy duty locating point for trailer foundation drum brakes. It supports the brake shoe at the fixed end of the assembly, so the shoe can load evenly against the drum under brake pressure. As a result, it helps maintain consistent brake response on loaded and unloaded trailers. The design suits standard heavy vehicle brake hardware where a compact but robust anchor pin is required.

Features

• Heavy duty brake shoe anchor pin in a standard 68mm length for trailer drum brakes
• Supports the shoe at the anchor end to help control movement under braking
• Dimensions suit common heavy trailer foundation brake hardware layouts
• Compact design that works with matching bushes, spiders and brake shoes

Specifications and Materials

Part number: FB3200.
This brake shoe anchor pin uses a nominal length of 68mm with an approximate 41mm internal diameter and 32mm outer diameter to match the listed heavy duty specification. The solid steel construction helps it carry repeated brake loads in fleet service. You can review general anchor pin inspection and service practices in this Hendrickson drum brake maintenance guide for additional context

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 011248, 79787997, FL15.6527A
When you replace an existing brake shoe anchor pin with this unit, confirm the pin length, shoulder profile and seating surfaces against the removed part.

Compliance and Safety

Brake shoe anchor pins operate under high load, so inspect them whenever you reline or service the foundation brakes. Replace worn, grooved or distorted pins so the shoes can seat correctly and avoid uneven wear. If you see movement at the anchor point, change related bushes and hardware as well. Use appropriate lifting, lockout and support methods whenever you work on heavy trailers, and follow workshop and fleet safety procedures during brake maintenance.

Trailer Applications

This heavy duty brake shoe anchor pin 68mm suits common foundation brake layouts on semi trailers, dog trailers and other heavy articulated equipment where the listed dimensions and cross references apply. It works alongside matching brake shoes, spiders and bushes to control shoe movement at the anchor end of the brake. It also provides a stable support point so the cam end hardware can deliver full braking force without unwanted shoe twist. Always confirm suitability against the existing pin and brake drawings before committing to a full axle set change.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

These cross references help you match the brake shoe anchor pin to different OEM or aftermarket numbering systems while keeping the same functional geometry at the anchor point.
