Description

Overview

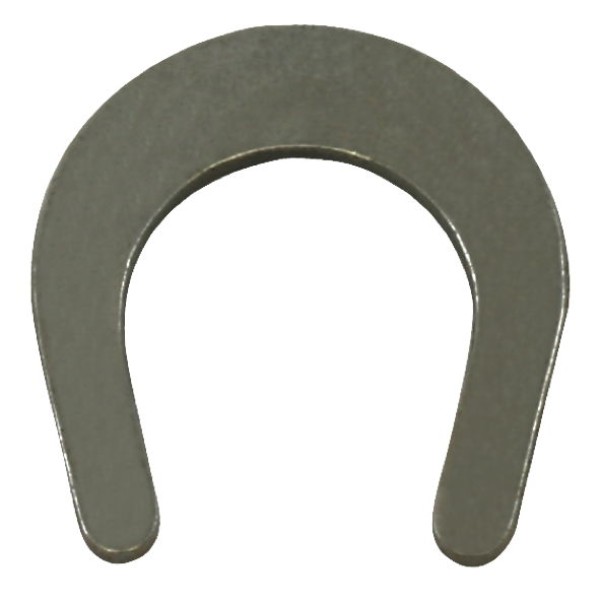

This brake shoe anchor pin circlip helps keep the brake shoe anchor pin locked securely in heavy vehicle trailer foundation brakes. It also helps prevent unwanted movement under load.

Features

• Retains the brake shoe anchor pin on heavy vehicle trailer foundation brakes
• 3mm thick circlip profile gives firm clamping on the matching anchor pin groove
• 22mm internal diameter and 33mm outside diameter suit typical 15 inch brake hardware layouts
• Simple replacement option when an existing anchor pin circlip is worn, damaged or missing

Specifications and Materials

Part number: FB3213.

This brake shoe anchor pin circlip has a nominal 22mm internal diameter, 33mm outside diameter and 3mm material thickness to match common heavy trailer foundation brake anchor pins. It is supplied as a single heavy duty retainer for use with compatible 15 inch drum brake assemblies. For more background on circlip design and common standards, see this manufacturer technical guide on circlips from a specialist circlip manufacturer

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. E-1106, 403104, 1229M221, 34-1535, FL34.1543, M10HN154, Dayton/Batco 01493, Dana/Spicer 11527, Dana/Spicer 341535, Haldex 65561, Haldex 66544, Haldex C65561, Leland L1755, Leland L455, Dayton/Batco 01471, Dana/Spicer 351578, Haldex 65425, Leland L334, Eaton M1561, Meritor R547032, BWP M725, Automann 107.0201

Compliance and Safety

Replace a distorted or corroded anchor pin circlip during brake shoe or anchor pin service, because a loose retainer can allow the brake shoe to move on the anchor pin. Make sure the circlip seats fully in the groove and sits flat before returning the trailer to service. After installation, check for secure brake shoe location through a full range of brake actuation travel.

Trailer Applications

Heavy vehicle trailers with air operated foundation drum brakes commonly use this brake shoe anchor pin circlip where a separate anchor pin and shoe hardware kit holds the shoes. It suits workshop brake relines, fleet maintenance programs and individual axle repairs where you need to restore correct brake shoe location without changing the full hardware kit.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
