Description

Overview

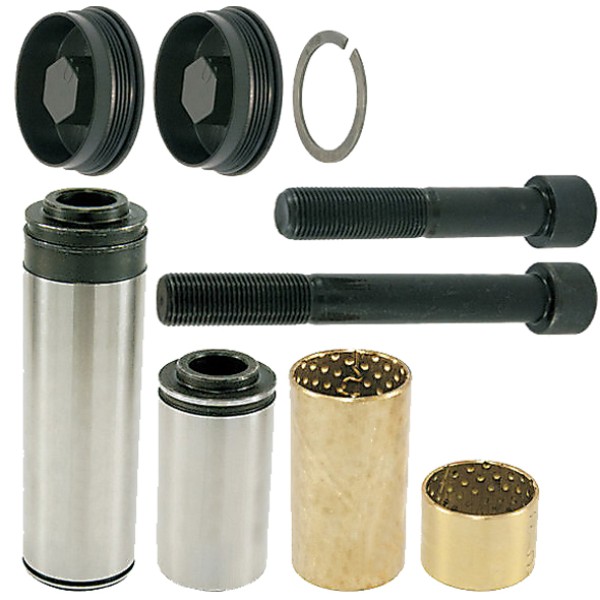

BPW caliper guide pin bush kit minor restores smooth sliding action in BPW disc brake calipers on heavy trailers. It refreshes worn guide pins, bushes and hardware so the caliper can move freely and keep pad contact even. As a result, braking stays consistent under heavy loads and frequent stop start work. Workshops use this kit during scheduled services when they find corrosion, sticking pins or taper wear on BPW ECO Disc trailer axles.

Features

• Firstly, the kit supplies matched guide pins, bushes and hardware for one BPW caliper.
• Secondly, pin and bush dimensions follow BPW ECO Disc geometry to support precise sliding movement.
• Additionally, the layout suits standard workshop tools so technicians can replace parts efficiently.
• Finally, regular use of this kit helps reduce brake drag, pad taper and vibration under hard stops.

Specifications and Materials

This minor kit suits BPW ECO Disc trailer axles that use BPW TSB series disc brake calipers. It replaces the main guide pins, guide bushes and related fasteners and seals on one caliper side. Part number: FB2700. The pins use hardened steel, and the matched bushes support smooth travel under high clamp loads. Mounting hardware aligns with common M16 brake caliper fixings used on BPW ECO Disc assemblies. For more detail on ECO Disc repair kits, refer to this manufacturer technical guide which outlines BPW ECO Disc TSB repair options.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 0980107611, 09.801.07.61.0, TSB 3709, TSB 4309. Before fitting the BPW caliper guide pin bush kit minor, technicians should confirm the caliper type from the BPW ID plate and match it against workshop documentation. They should also follow BPW torque values and recommended high temperature brake grease during assembly.

Compliance and Safety

Brake repairs affect stopping performance, so only suitably trained personnel should install this kit. Always secure the trailer safely, support the axle and isolate air and electrical systems before removing any brake components. Clean all sliding faces, remove corrosion and replace any damaged dust boots or seals at the same time. After fitting the BPW caliper guide pin bush kit minor, check caliper travel, pad clearance and line pressures, then verify performance with a roller brake test or controlled road check.

Trailer Applications

Fleets use this kit on heavy trailers and semi trailers that run BPW ECO Disc axles with TSB series disc brakes. It suits curtain siders, tankers, tippers and general freight trailers that operate at typical 9 tonne axle ratings. By renewing guide pins and bushes together, workshops help keep left and right brake performance balanced. Consequently, trailers have a better chance of passing roadworthy inspections and meeting internal fleet safety standards.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

These references assist parts interpreters and workshop staff when they match existing BPW documentation or migrate from older catalogue numbers to current repair kit listings.
