10/285 Brake Drum 10 Stud 16.5×7.5 SAF Intradrum

Allan Davis on 19/08/2026

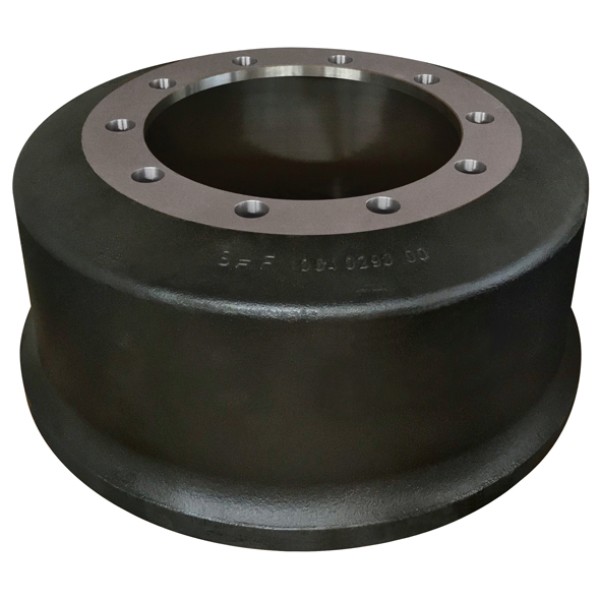

SAF Intradrum brake drum 10 stud 285mm PCD

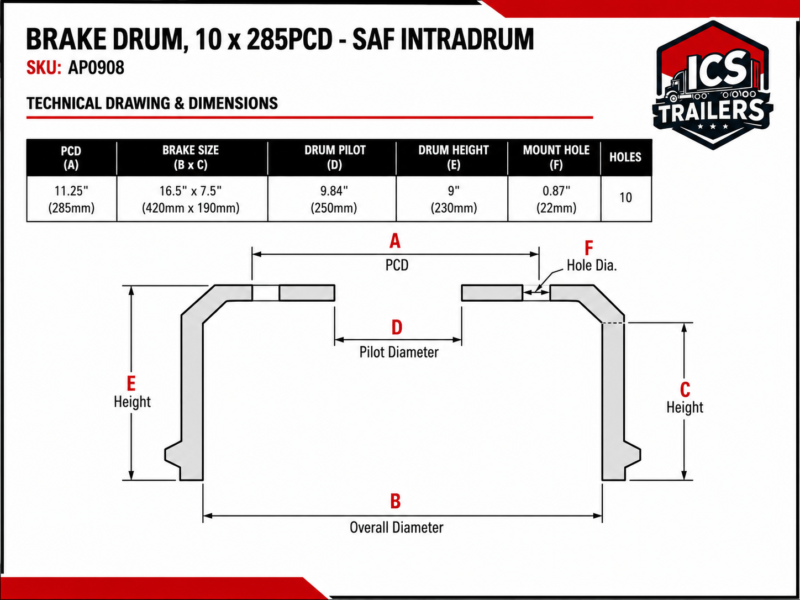

AP0908 Brake Drum 10 x 285PCD SAF Intradrum technical dimension guide

10/285 Brake Drum 10 Stud 16.5×7.5 SAF Intradrum

$265.00

SAF Holland Intradrum brake drum for compatible heavy trailer wheel ends, with 10 mounting holes on 285mm PCD, a 250mm drum pilot, 22mm mount holes and 420 x 190mm brake size for dimensional matching during brake service.

Part number AP0908G.

Request Freight Quote

Quick Quote

1. My driveway is sealed with an even surface
2. There is reasonable vehicle access with height clearance.
3. I acknowledge the delivery is to the front door, carport, or closest practical delivery point as deemed by the driver.

SKU: AP0908 Category: Tags: , , , , , , , , , , , , ,
This field is for validation purposes and should be left unchanged.

Description

Overview

SAF Intradrum brake drum suits compatible heavy trailer wheel ends using a 10-stud 285mm PCD mounting layout. The 420 x 190mm brake size, 250mm pilot, 230mm drum height and 22mm mounting holes are important selection points because another 10/285 drum can use different locating dimensions.

Features

  • Ten mounting holes arranged on a 285mm PCD.
  • 420 x 190mm brake size, equivalent to 16.5 x 7.5 inches.
  • 250mm drum pilot for wheel-end location.
  • 230mm drum height with 22mm mounting holes.

Specifications and Materials

PCD: 285mm. Brake size: 420 x 190mm. Drum pilot: 250mm. Drum height: 230mm. Mount hole diameter: 22mm. Hole count: 10.

Part number: AP0908G.

See the SAF-HOLLAND INTRADRUM technical information

Compatibility and Fitment

Match the 285mm PCD, 250mm pilot, 230mm height, 22mm holes and 420 x 190mm brake size before ordering. The most likely mismatch is a drum with the correct stud count and PCD but a different pilot or mounting-hole dimension. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 1064029800

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Hub to suit AP3451 SAF Intradrum hub



Compliance and Safety

When the drum is removed, inspect the hub mounting face, wheel studs and brake components for wear, cracking, heat damage or distortion. Before reassembly, make sure the drum locates squarely on the 250mm pilot and that the mounting faces are clean and undamaged.

Trailer Applications

SAF Intradrum brake drum suits SAF Intradrum heavy trailer wheel-end service where the axle uses a 420 x 190mm drum brake and 10-hole 285mm PCD mounting pattern.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

1064029800



Why Choose ICS Trailers

A 285mm PCD alone is not enough to identify this brake drum, because the 250mm pilot, 22mm mounting holes and 230mm height also control the wheel-end match. If the old drum markings are unreadable, send ICS Trailers the hub number, axle identification and measured pilot and mounting details. We can help narrow down the SAF Intradrum configuration before the brake assembly goes back together.
